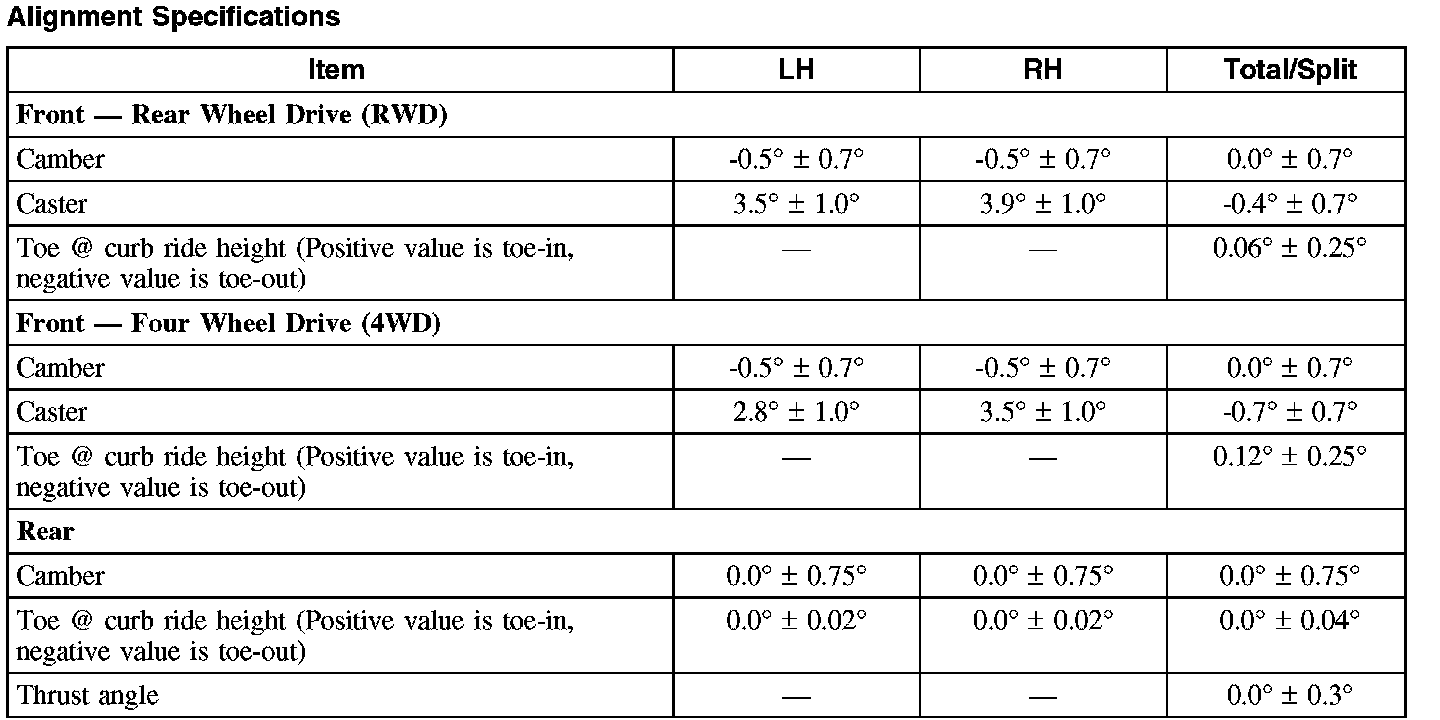

Alignment

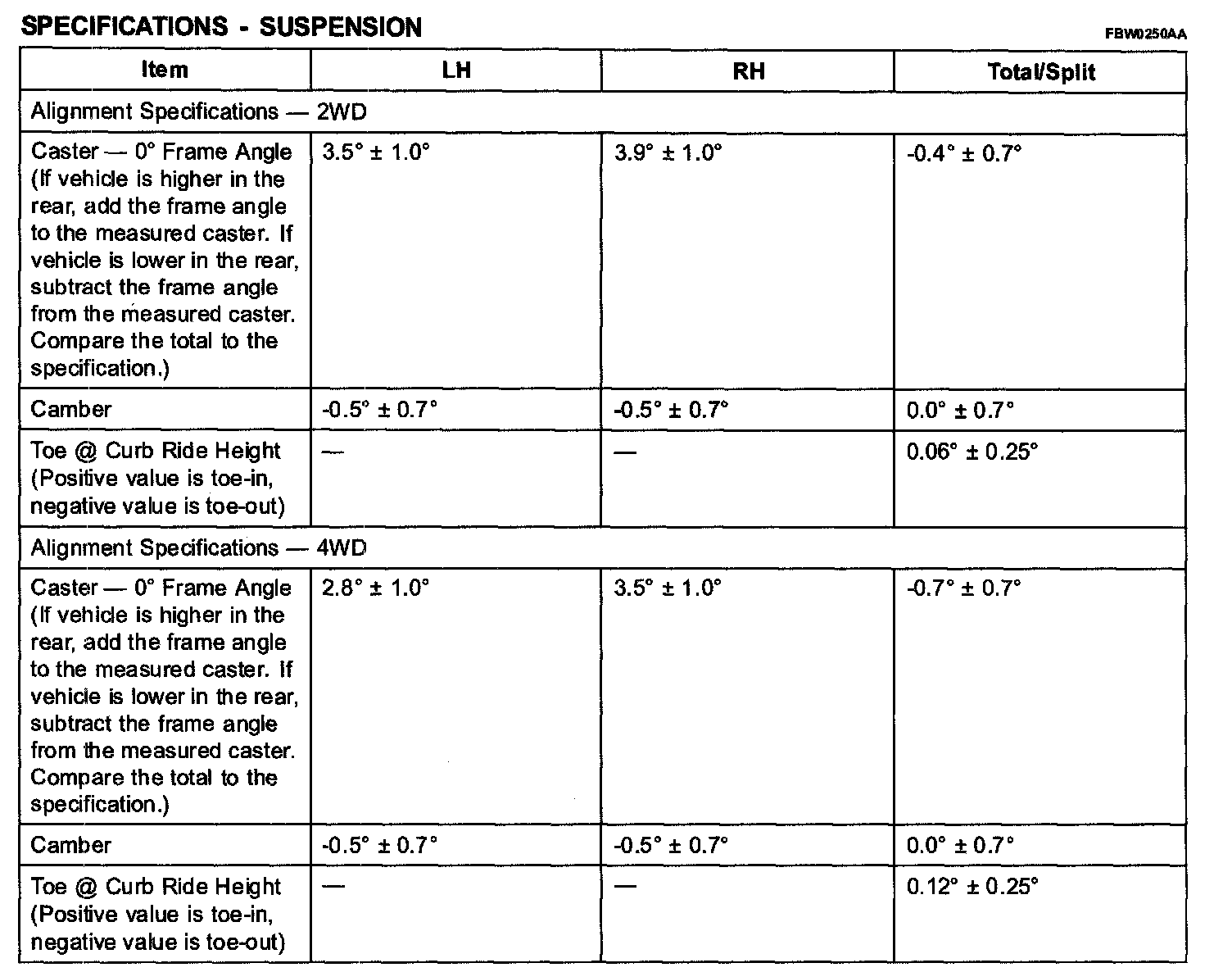

Specifications - Suspension:

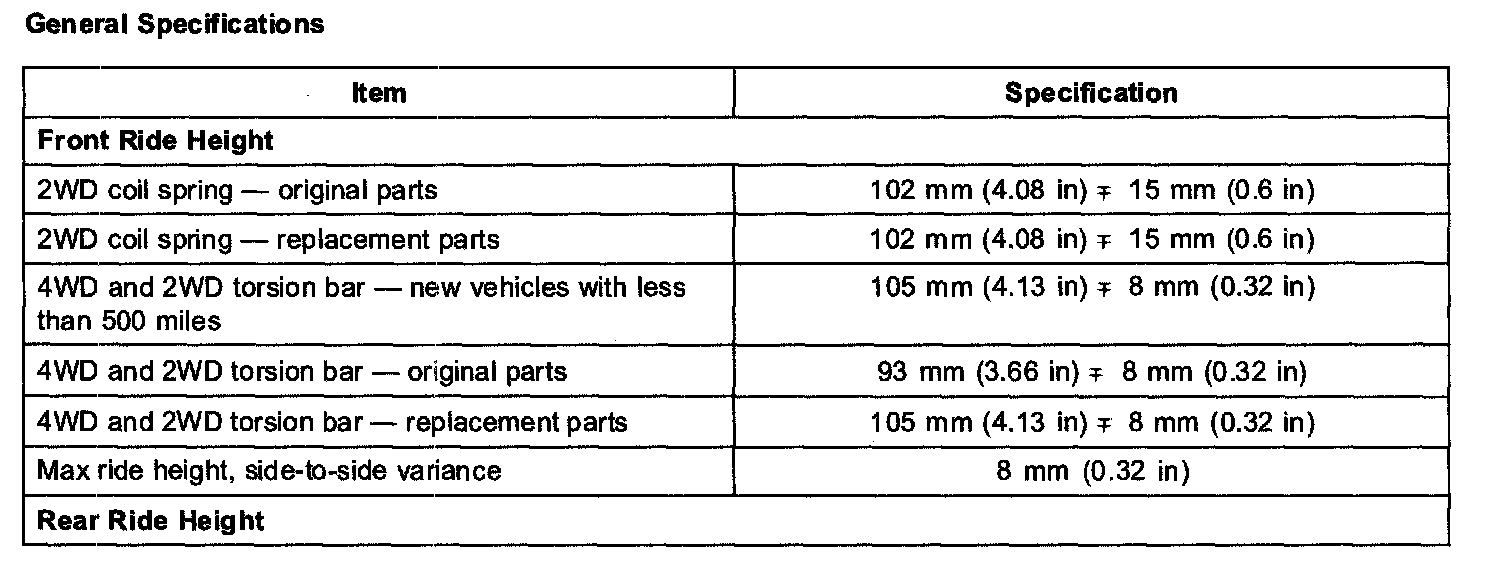

General Specifications (Part 1):

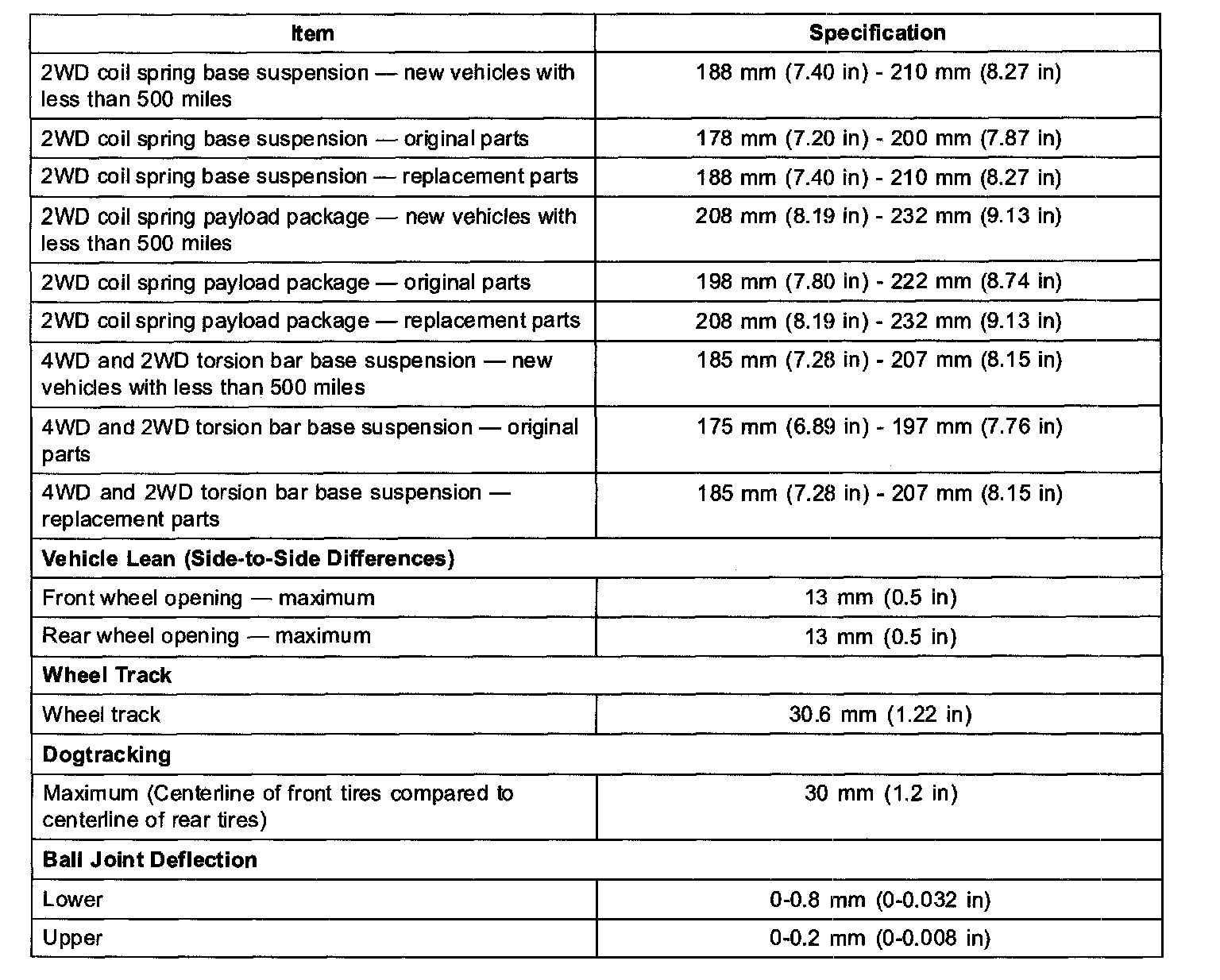

General Specifications (Part 2):
