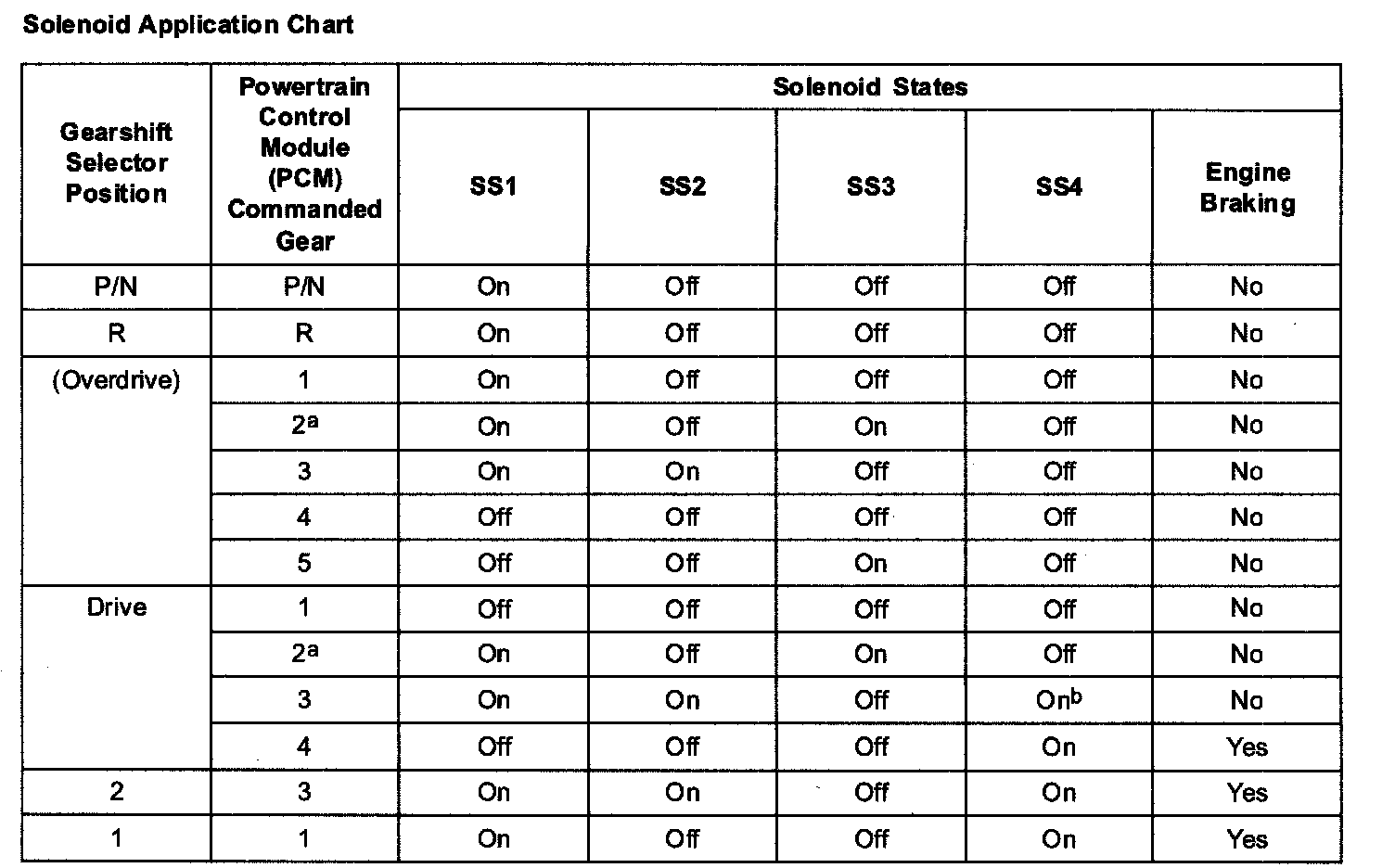

Solenoid Application Chart:

a PCM Controlled
b On time calibration dependent

Shift Solenoid Failure Mode Chart Always On
Failed OFF due to PCM and/or vehicle wiring concerns, solenoid electrically, mechanically or hydraulically stuck ON.














Shift Solenoid Failure Mode Chart Always Off
Failed ON due to PCM and/or vehicle wiring concerns, solenoid electrically, mechanically or hydraulically stuck OFF.








a During Downshift Only
b During Upshift Only
