Connector End Views

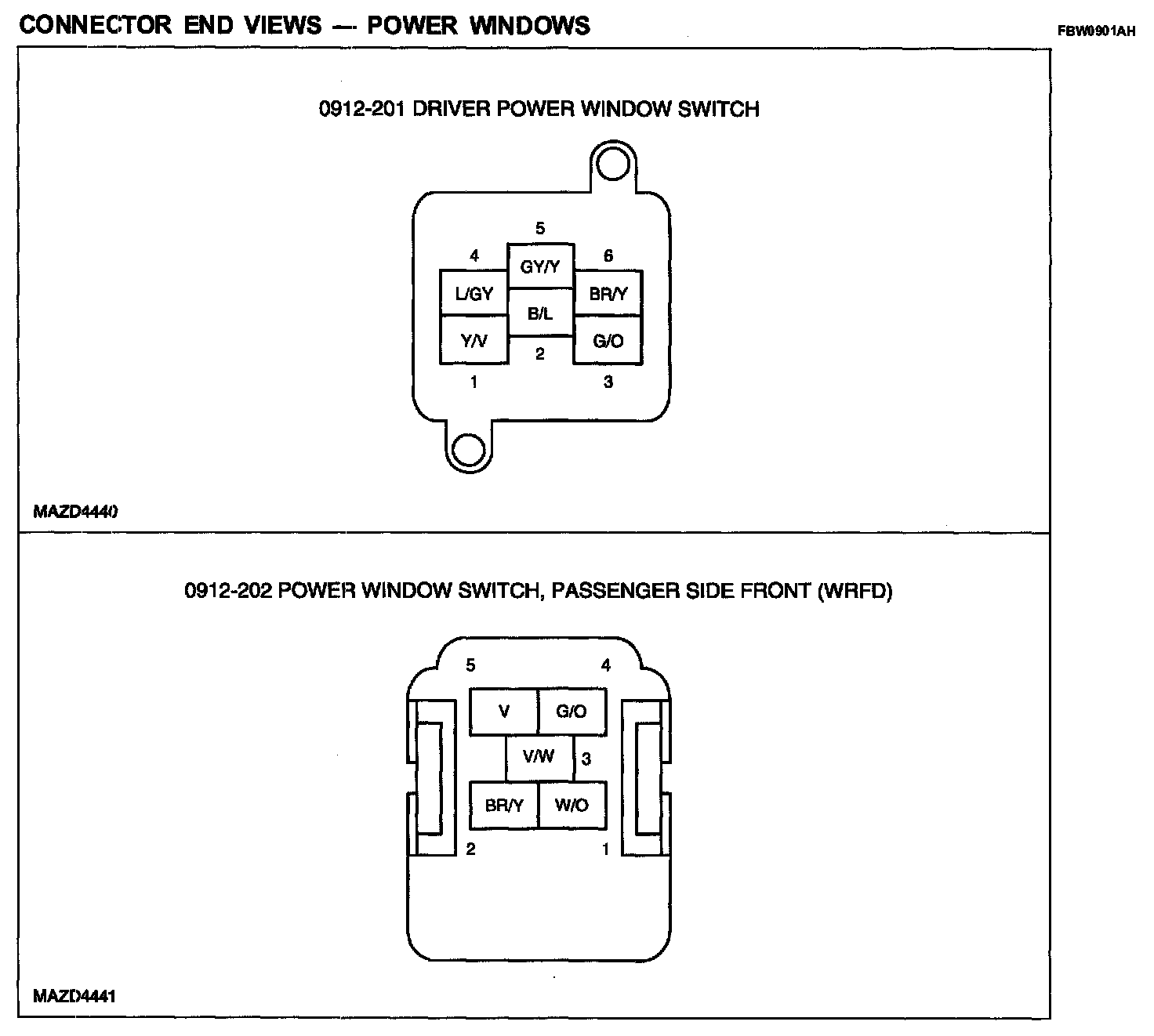

Connector End Views - Power Windows (Part 1):

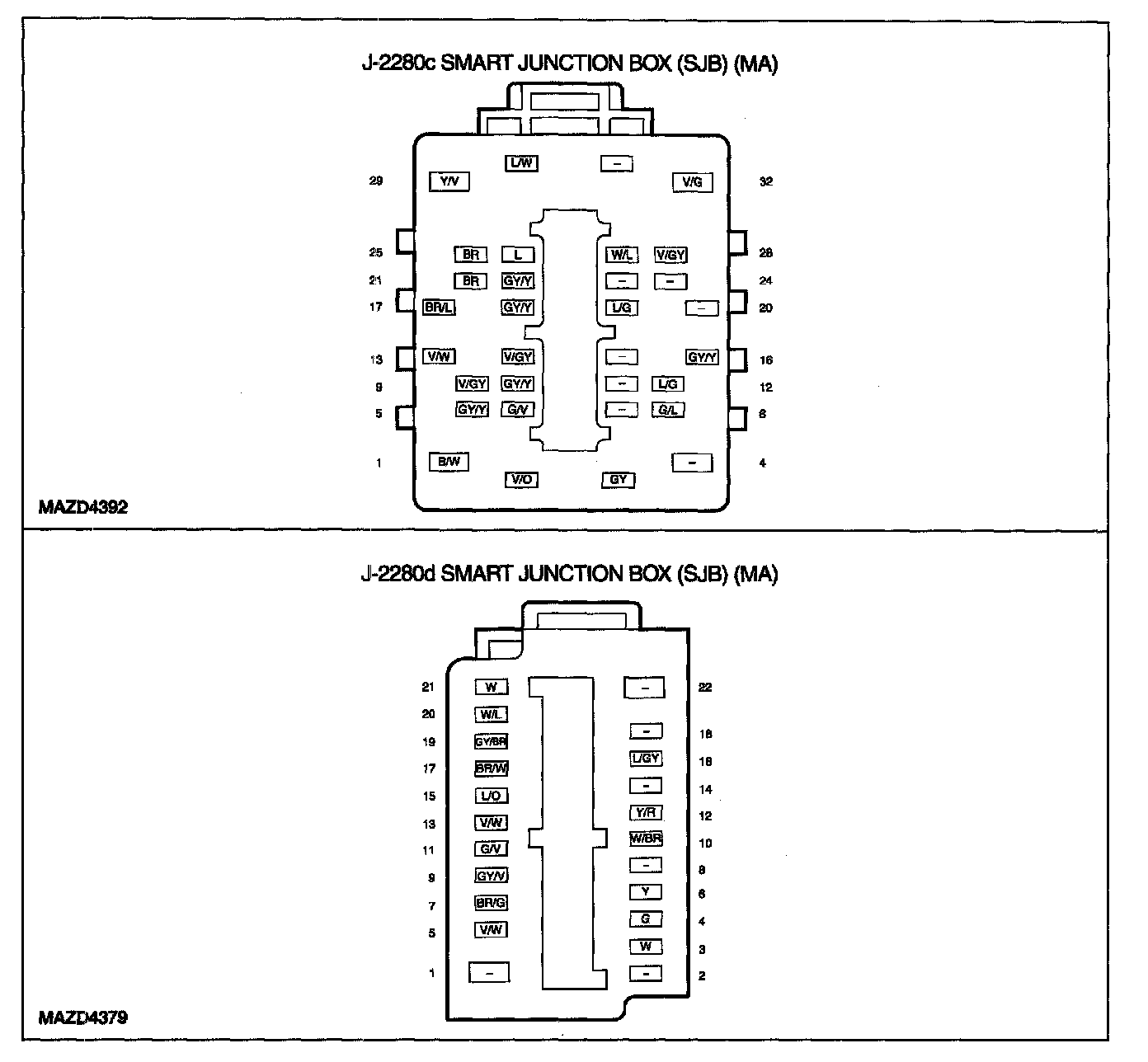

Connector End Views - Power Windows (Part 2):



Connector End Views - Power Windows (Part 3):
