Front Inner Handle Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Remove the screws, then remove the front inner handle.

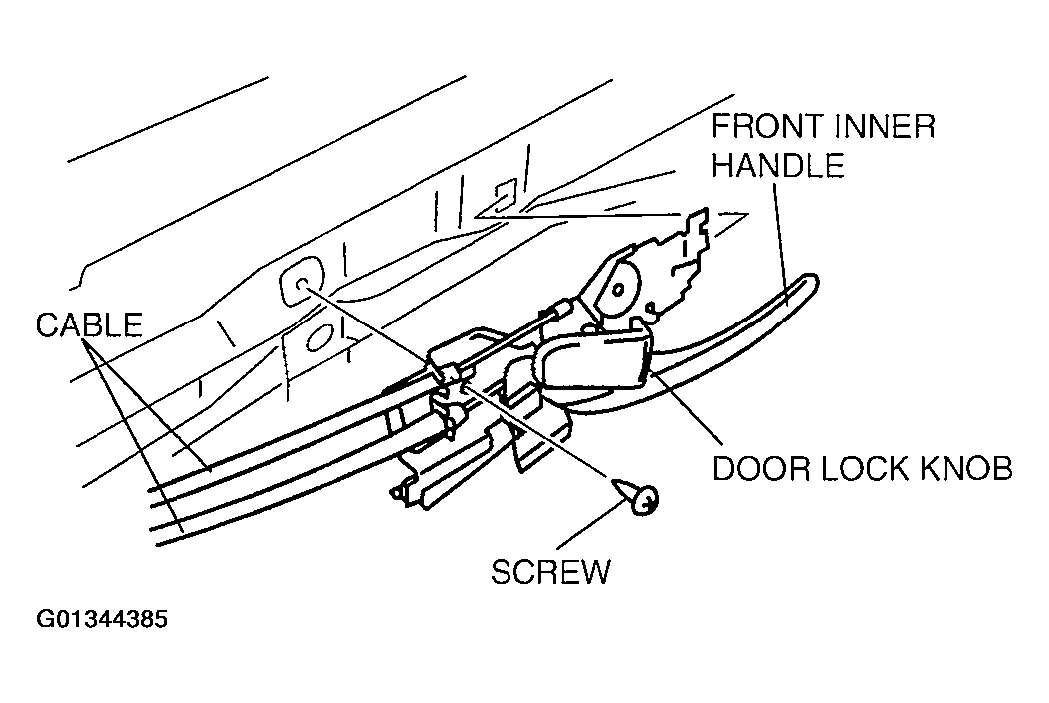

    Fig 1: Removing/Installing Front Inner Handle
    G01344385Courtesy of MAZDA MOTORS CORP.
  4. Detach the cables from the front inner handle and door lock knob.
  5. Install in the reverse order of removal.
