Keyless Receiver Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Remove the bolts.
Remove the connector clip installed to the bracket by shifting the keyless receiver downward.

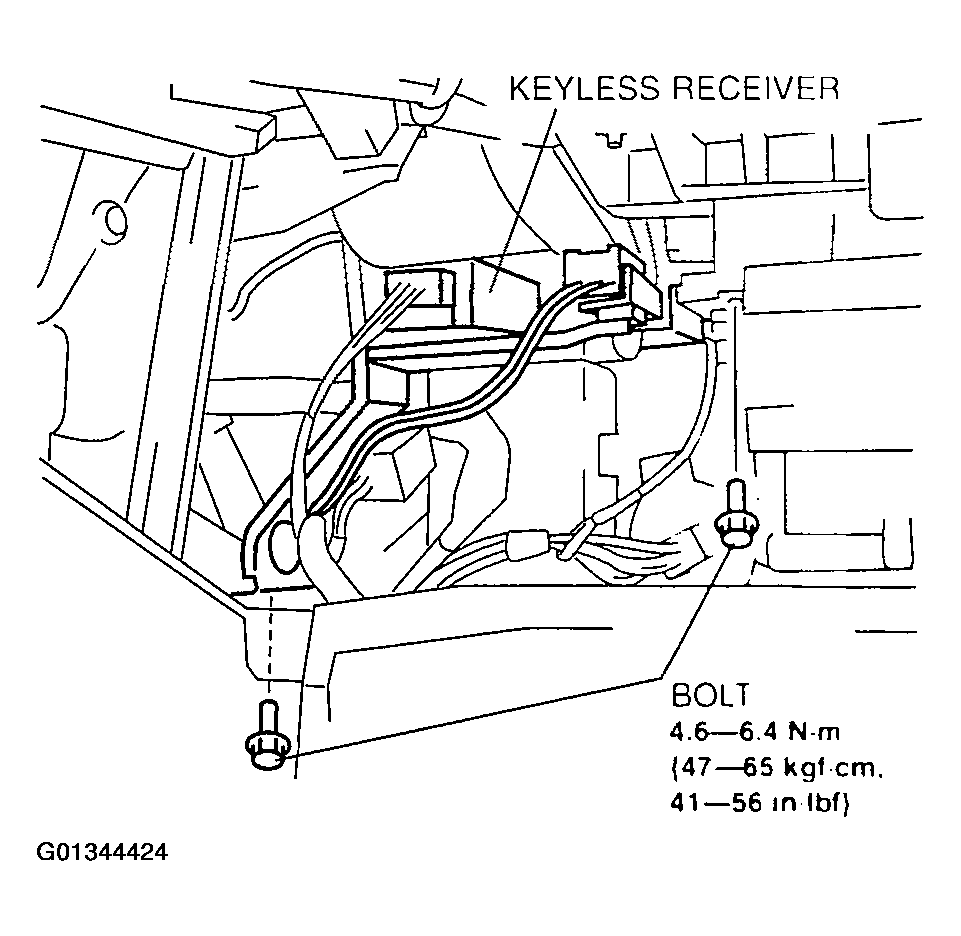

Fig 1: Removing/Installing Keyless Receiver
Courtesy of MAZDA MOTORS CORP.
Disconnect the keyless receiver connector.
NOTE:
- The screw which fixes the keyless receiver and bracket is for a body ground connection. Be sure to secure the screw when installing.

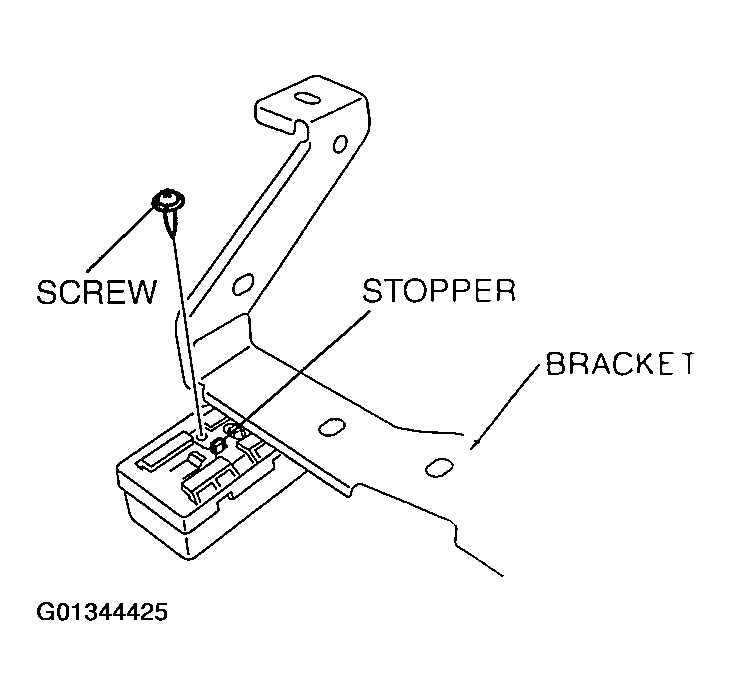

Fig 2: Removing Bracket
Courtesy of MAZDA MOTORS CORP.
Push the stopper in with a small screwdriver and remove the bracket.
Install in the reverse order of removal.
