Trunk Key Cylinder Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the trunk key cylinder switch
Inspect for continuity between the trunk key cylinder switch terminals. See Fig 1.
- If not as specified, replace the trunk key cylinder.

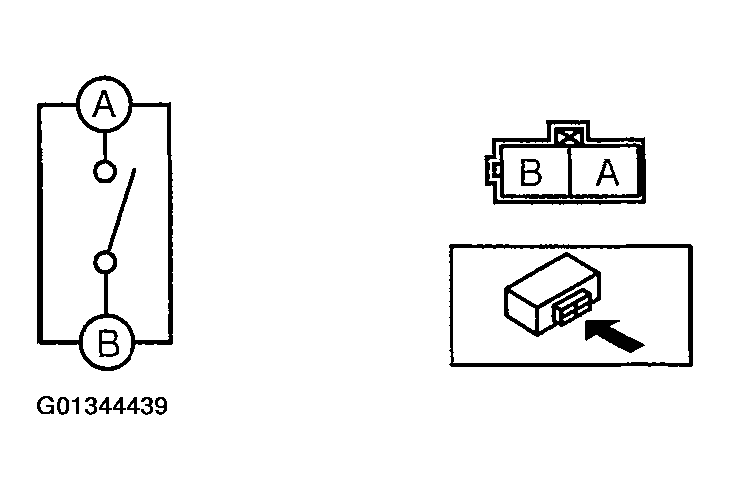

Fig 1: Trunk Key Cylinder Inspection
Courtesy of MAZDA MOTORS CORP.

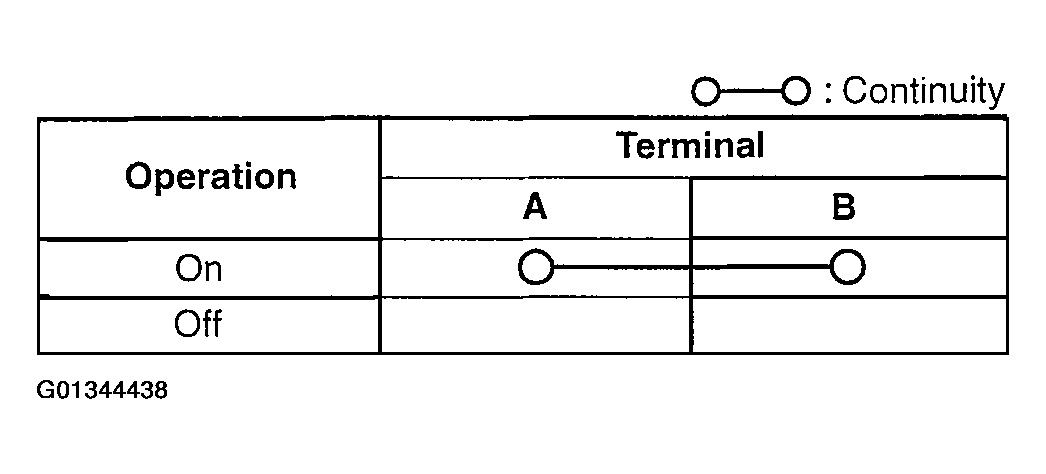

Fig 2: Inspecting Trunk Key Cylinder
Courtesy of MAZDA MOTORS CORP.
