Safety Belt Buckle - Front Center: Notes

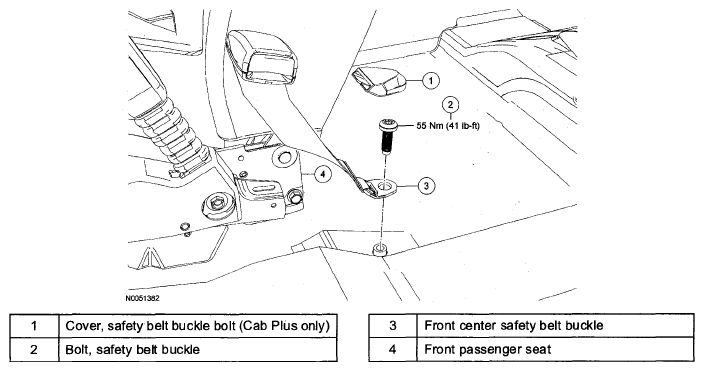

Fig 1: Safety Belt Buckle Replacement Components - Front Center With Torque Specifications

G04930912
