Ignition Switch Inspection
- Remove the ignition switch. See IGNITION SWITCH .
- Inspect for continuity between the ignition switch terminals using an ohmmeter.
Inspection

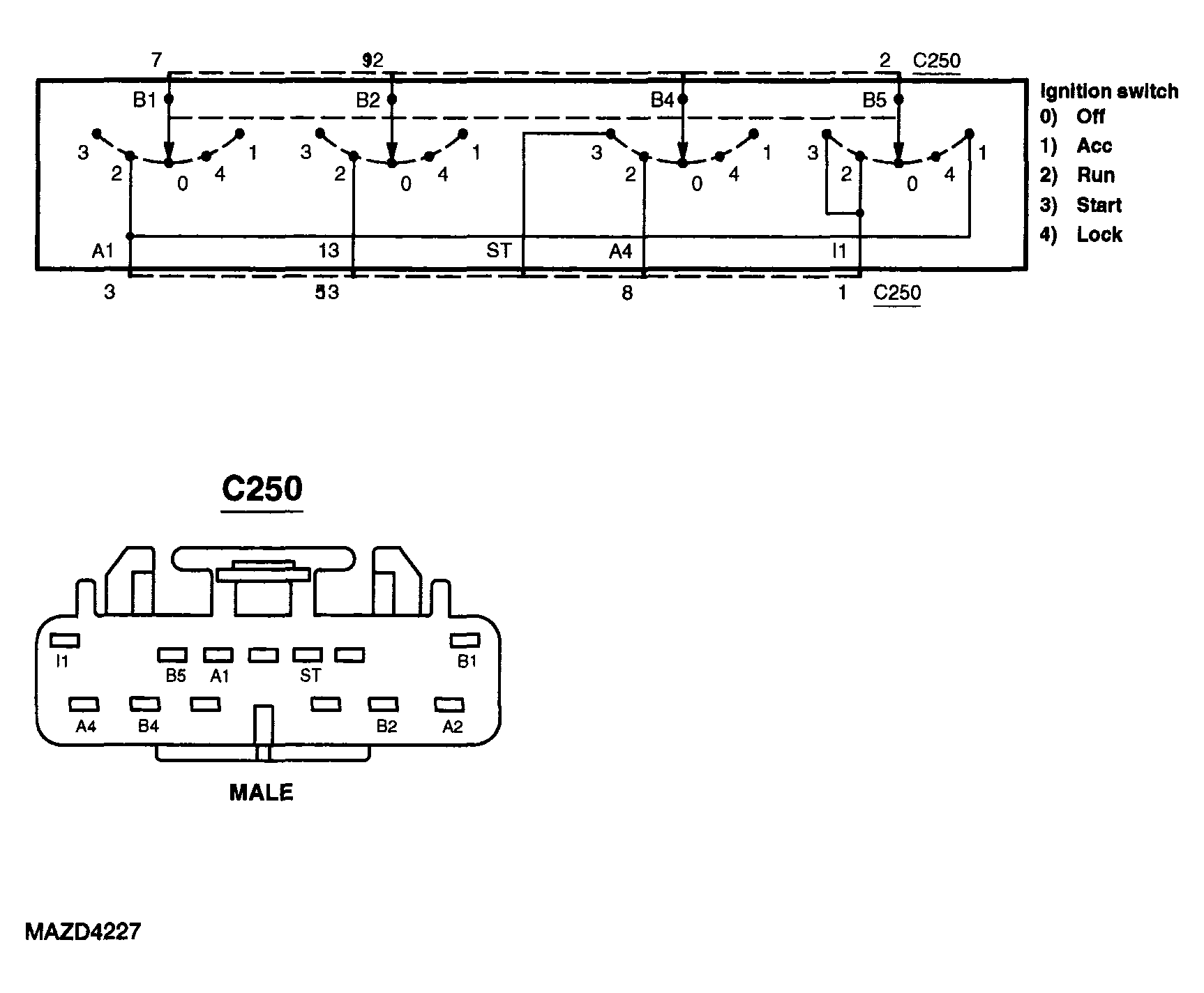

INSPECTION CHARTCircuit to test Connect self-powered test light or ohmmeter to terminals Move switch to these positions A good switch will indicate Run power circuit B1 and A1
B2 and A2
B4 and A4Off/lock Open circuit Accessory Open circuit Run Closed circuit Start Open circuit Run/start power circuit B5 and 11 Off/lock Open circuit Accessory Open circuit Run Closed circuit Start Closed circuit Ace power circuit B5 and A1 Off/lock Open circuit Accessory Closed circuit Run Open circuit Start Open circuit Start power circuit B4 and STA Off/lock Open circuit Accessory Open circuit Run Open circuit Start Closed circuit - If not as specified, replace the ignition switch.
