Accessory Relay Inspection: Notes

  1. Remove the accessory relay.
  2. Inspect for continuity between the accessory relay terminals using an ohmmeter.

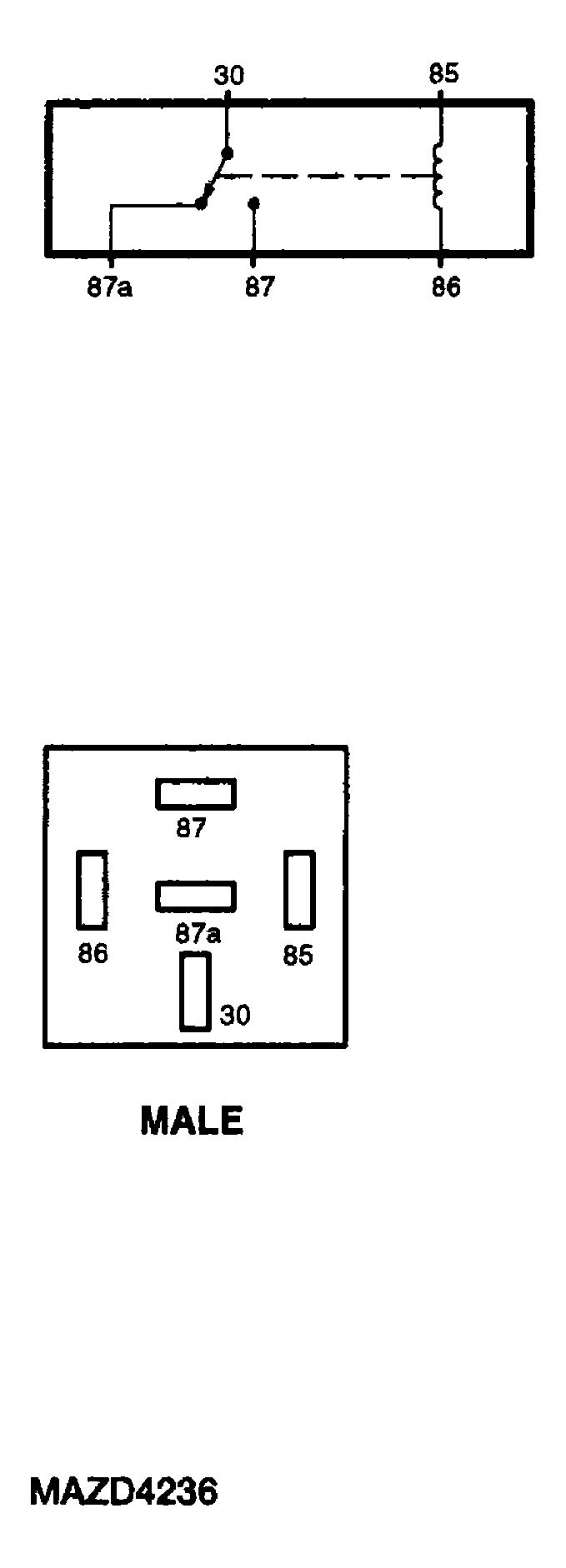

    Fig 1: Inspecting Accessory Relay
    G04310253Courtesy of MAZDA MOTORS CORP.
