Interior Rear View Mirror: Installation

  1. Place the interior rear view mirror on the windshield bracket.

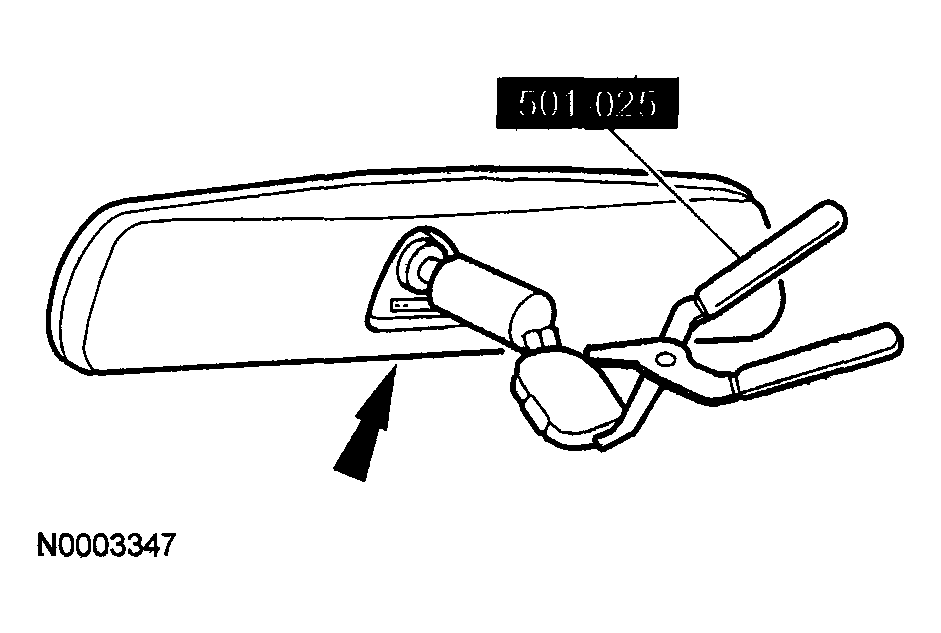

    Fig 1: Rear View Mirror On Windshield Bracket
    G04310257Courtesy of MAZDA MOTORS CORP.
  2. Using SST  501 -025, press the interior rear view mirror on the windshield bracket until fully seated.
