Generator Pulley Removal / Installation

  1. Remove the generator. See GENERATOR REMOVAL / INSTALLATION - 2.3L , , GENERATOR REMOVAL / INSTALLATION - 3.0L , or GENERATOR REMOVAL/INSTALLATION -4.0L ,
  2. Remove the nut (1) and generator pulley (2).
  3. To install, reverse the removal procedure.

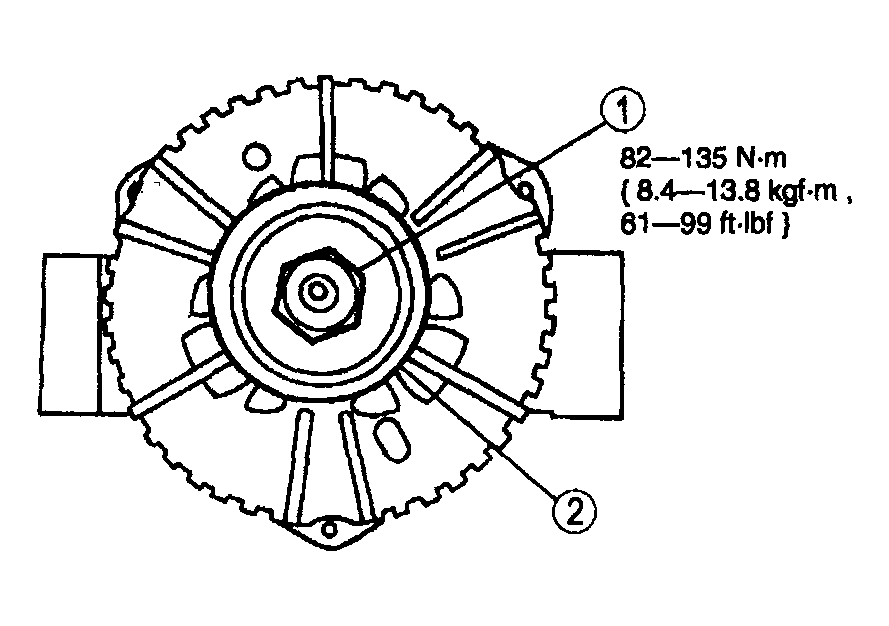

Fig 1: Nut And Generator Pulley With Torque Specifications
G04308287Courtesy of MAZDA MOTORS CORP.
