Generator Removal / Installation - 3.0L: Notes

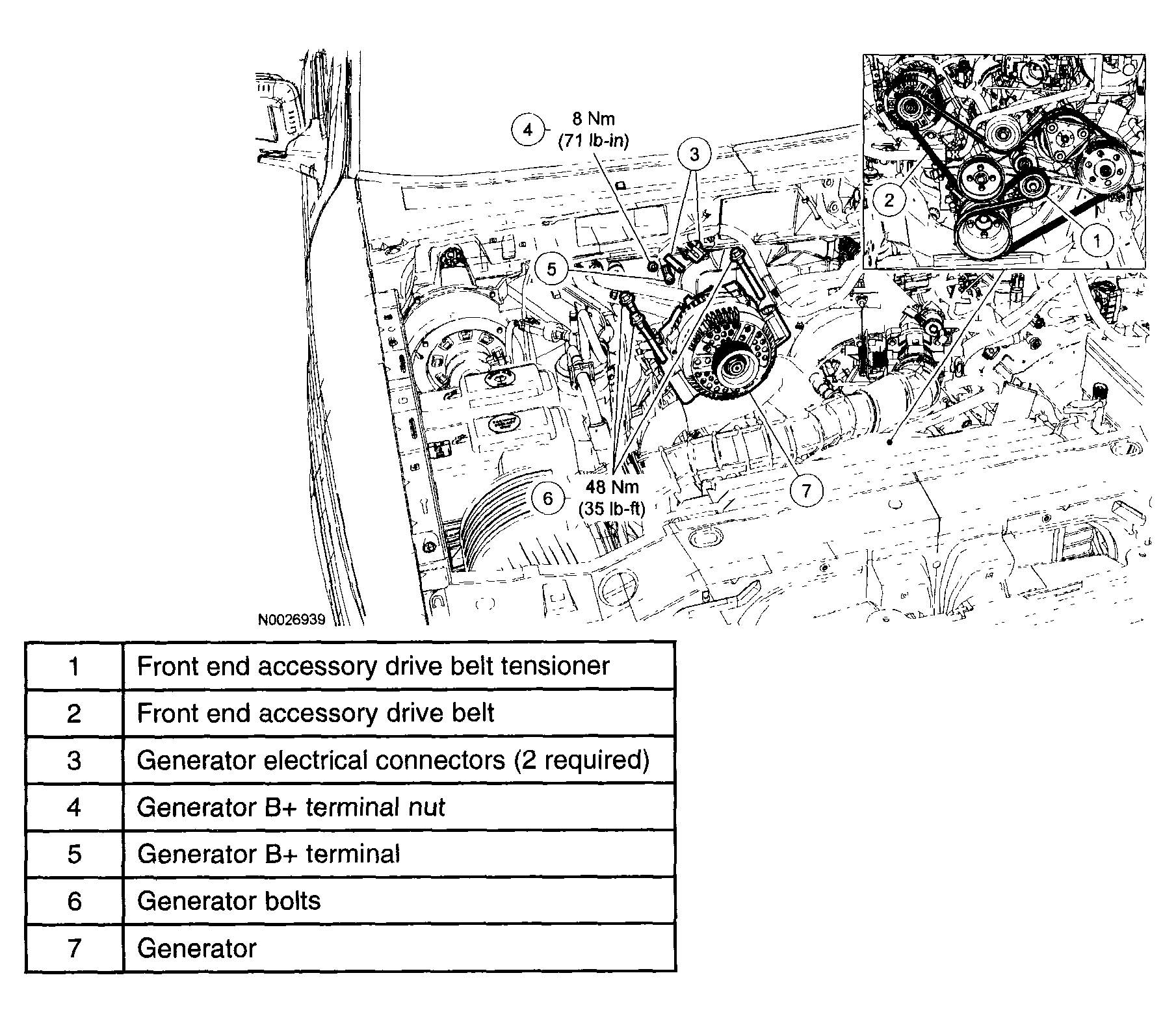

Fig 1: Generator - 3.0L With Torque Specifications
G04308284Courtesy of MAZDA MOTORS CORP.
