Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

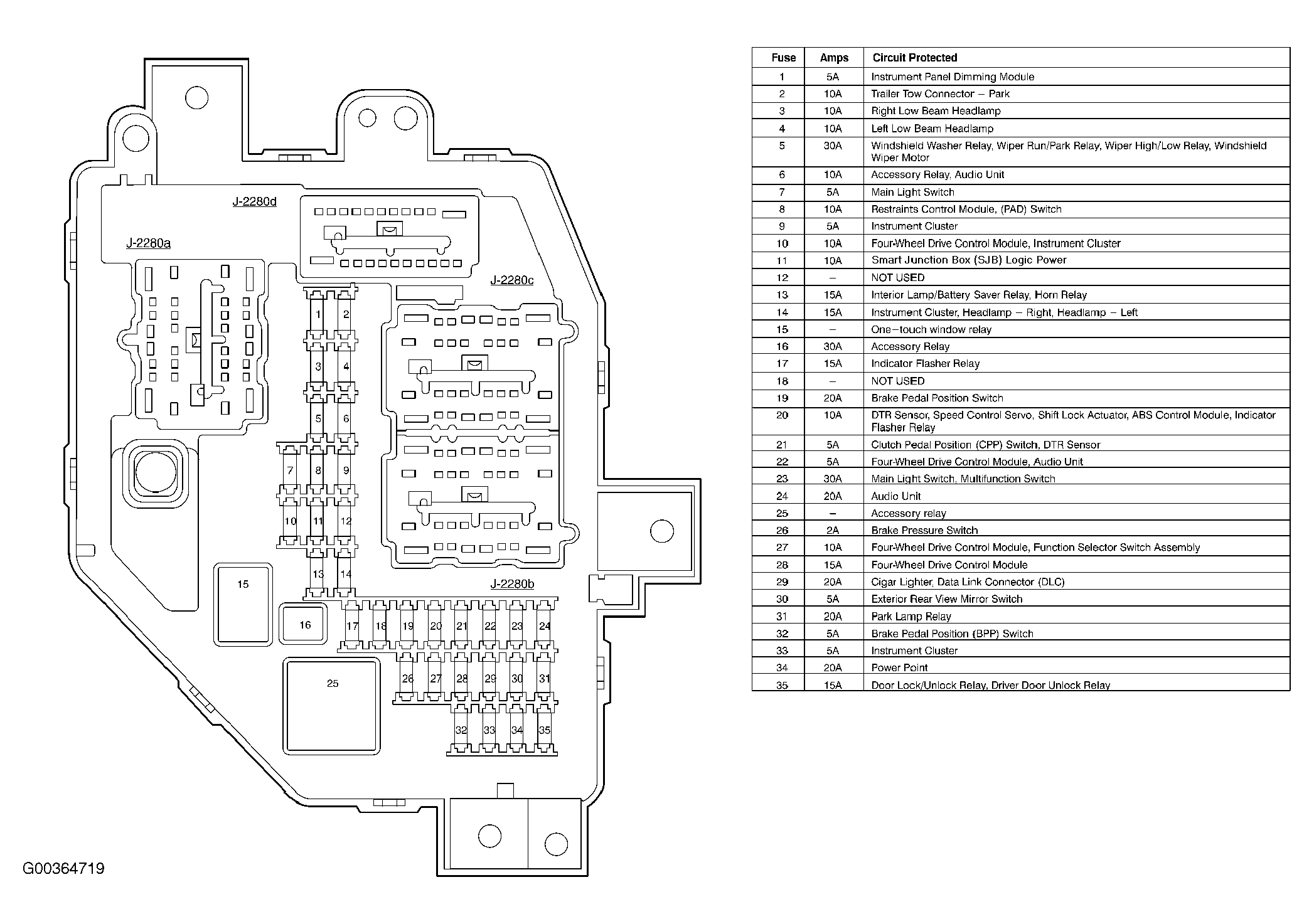

Fig 1: Smart Junction Box

G00364719

Courtesy of MAZDA MOTORS CORP.

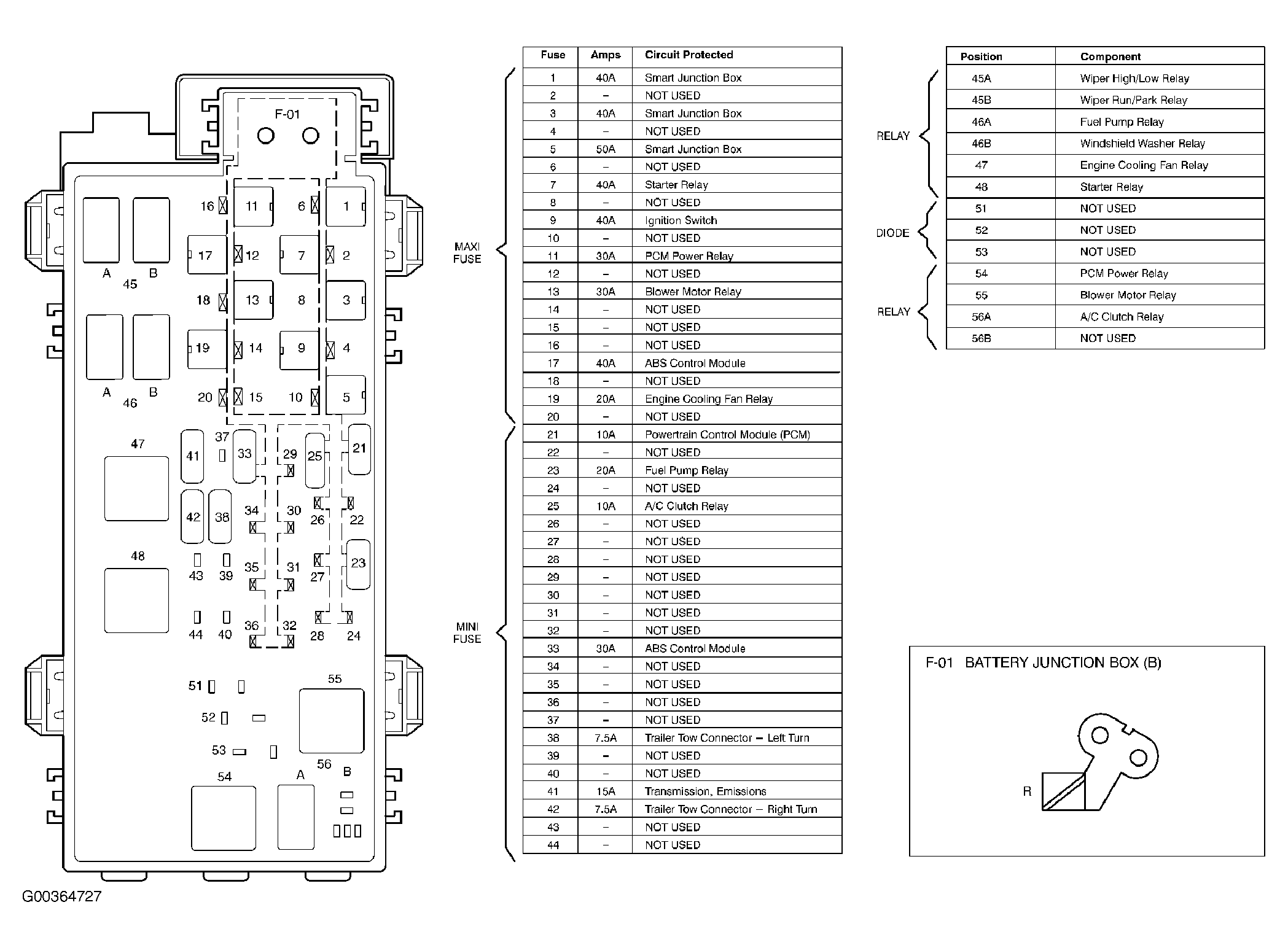

Fig 2: Battery Junction Box (2.3L)

G00364727

Courtesy of MAZDA MOTORS CORP.

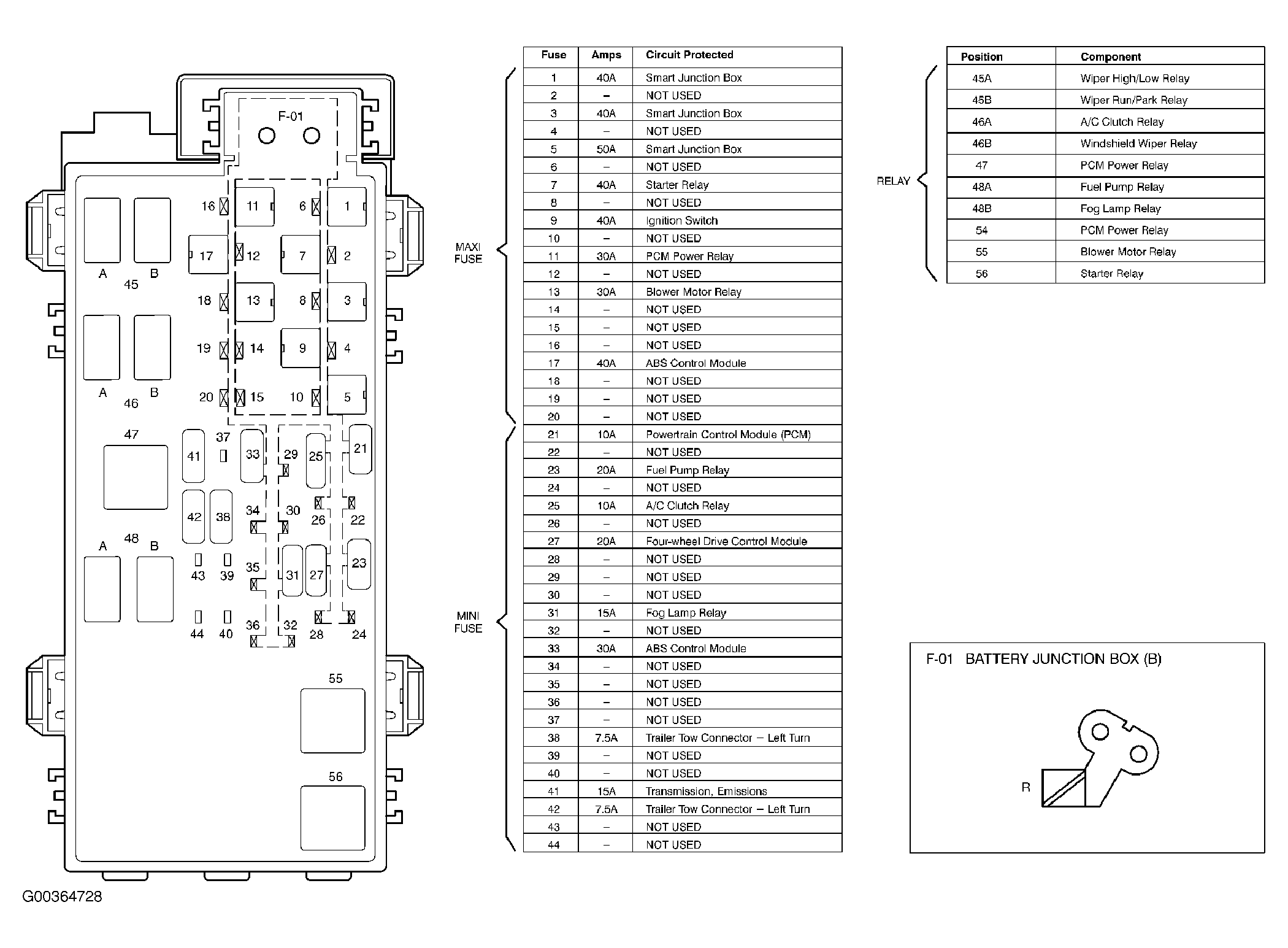

Fig 3: Battery Junction Box (3.0L & 4.0L)

G00364728

Courtesy of MAZDA MOTORS CORP.

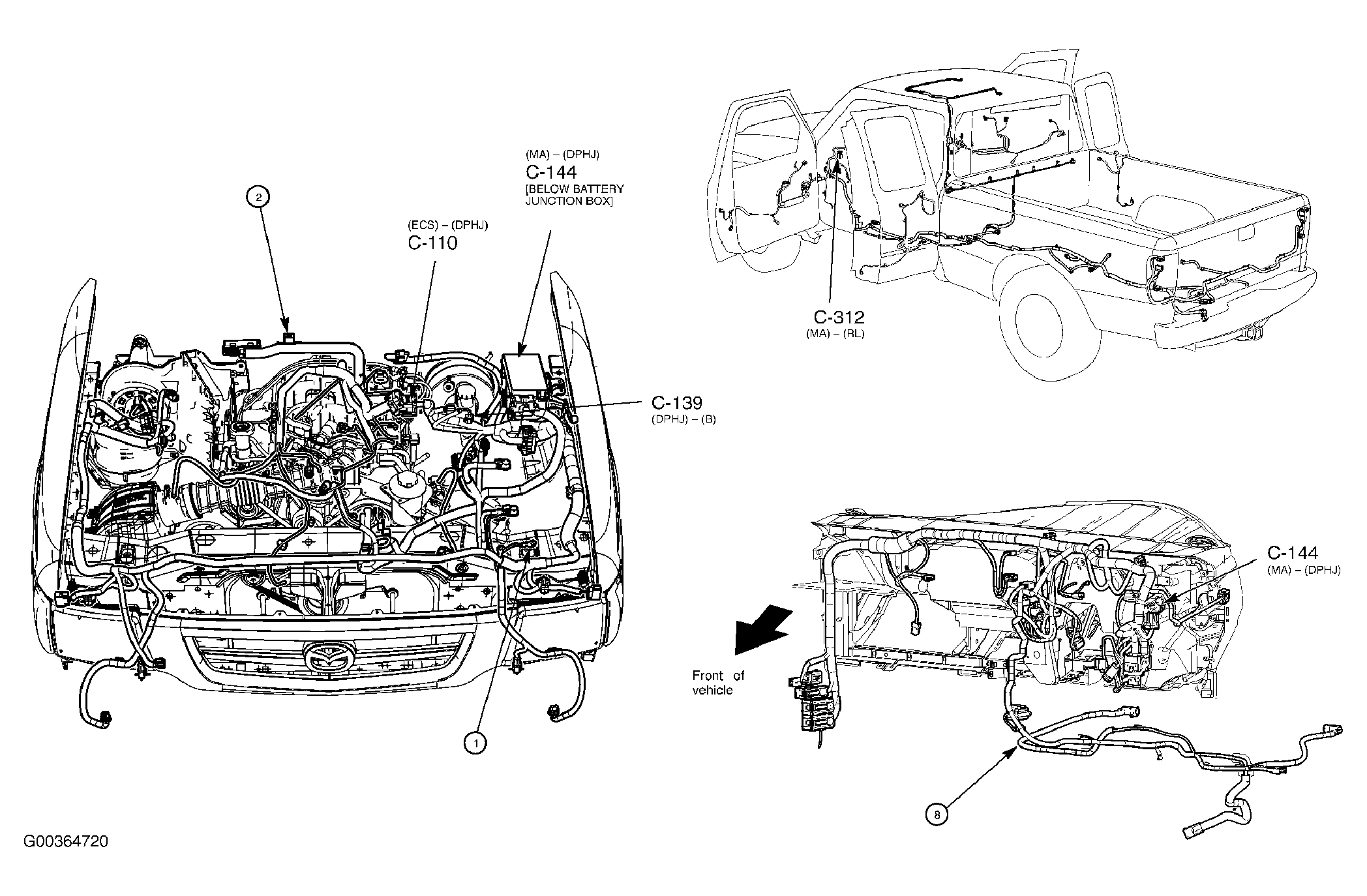

Fig 4: Vehicle Grounds (2.3L, 3.0L & 4.0L)

G00364720

Courtesy of MAZDA MOTORS CORP.

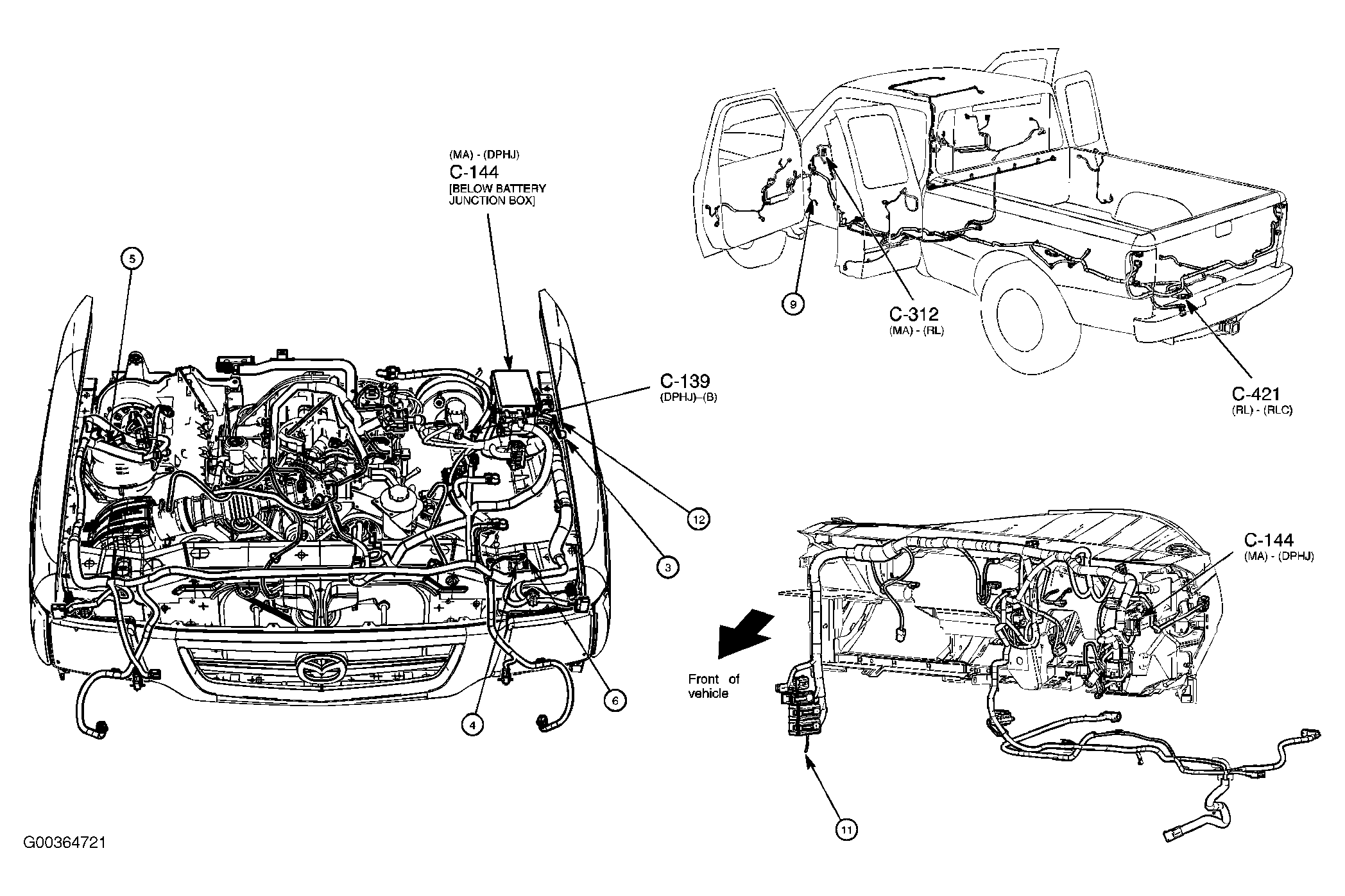

Fig 5: Vehicle Grounds (2.3L, 3.0L & 4.0L)

G00364721

Courtesy of MAZDA MOTORS CORP.

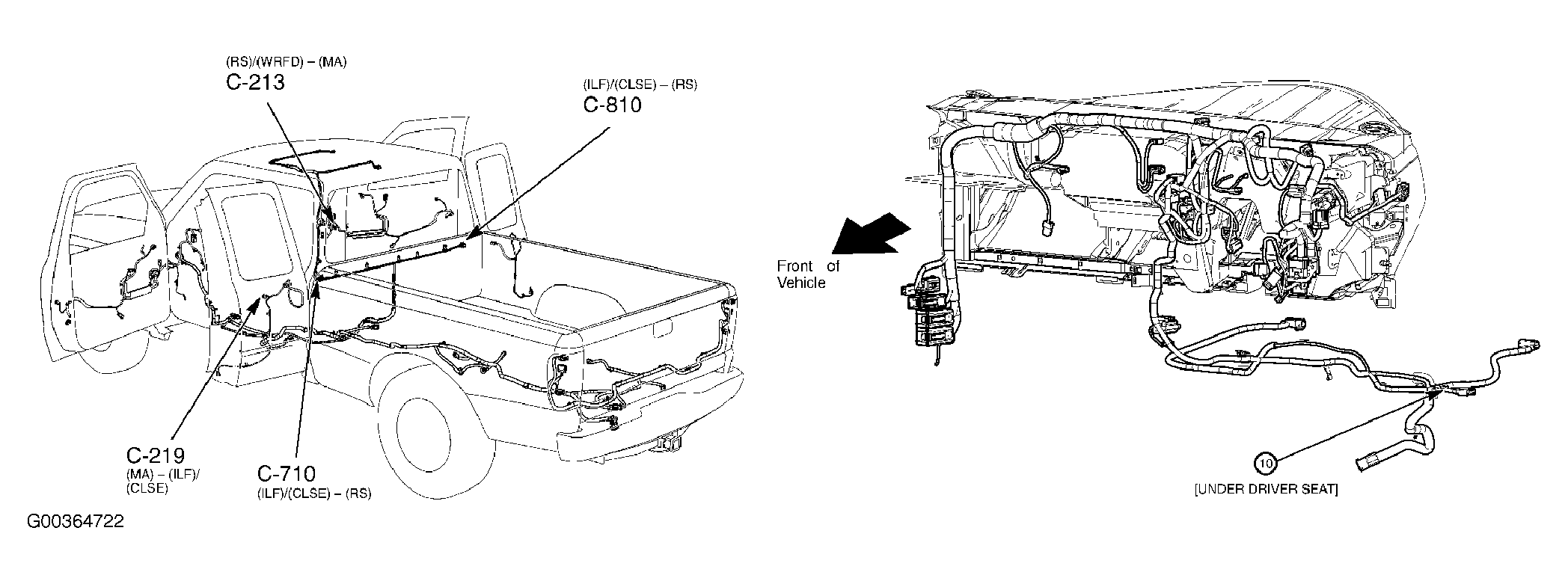

Fig 6: Vehicle Grounds

G00364722

Courtesy of MAZDA MOTORS CORP.

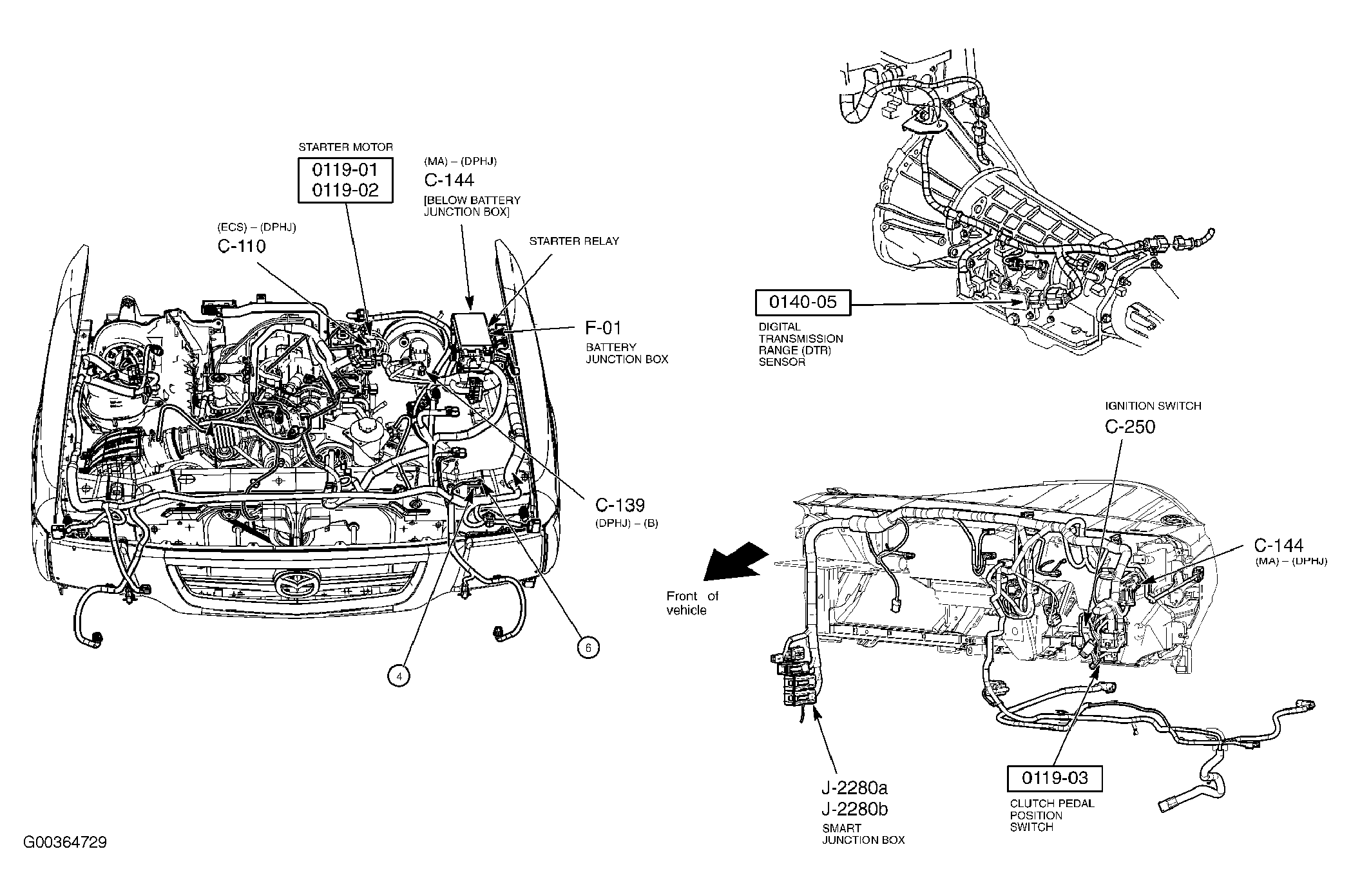

Fig 7: Starting & Charging System (2.3L, 3.0L & 4.0L)

G00364729

Courtesy of MAZDA MOTORS CORP.

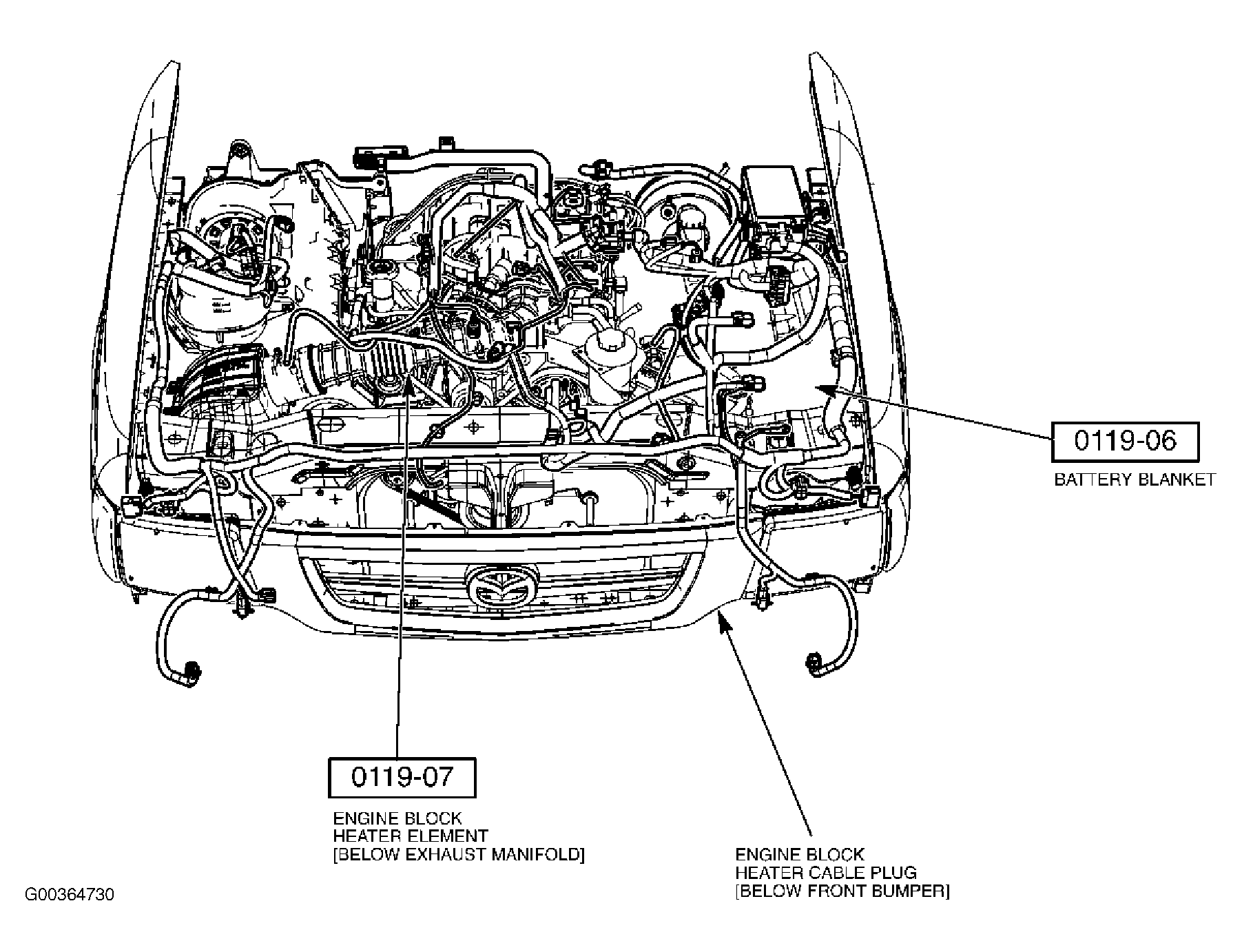

Fig 8: Engine Block Heater (2.3L, 3.0L & 4.0L)

G00364730

Courtesy of MAZDA MOTORS CORP.

Fig 9: Engine Control System (2.3L)

G00364732

Courtesy of MAZDA MOTORS CORP.

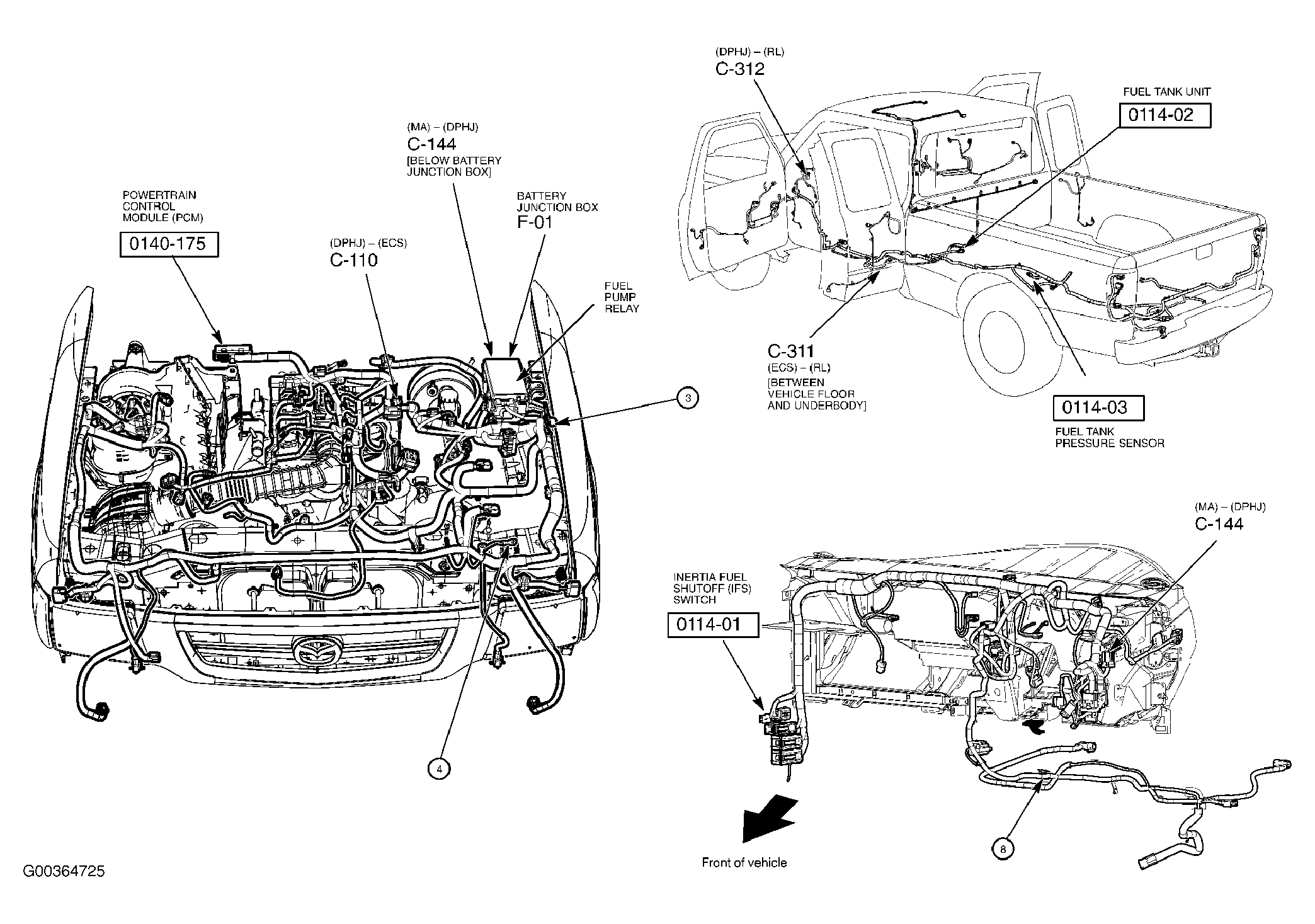

Fig 10: Engine Control System (2.3L)

G00364725

Courtesy of MAZDA MOTORS CORP.

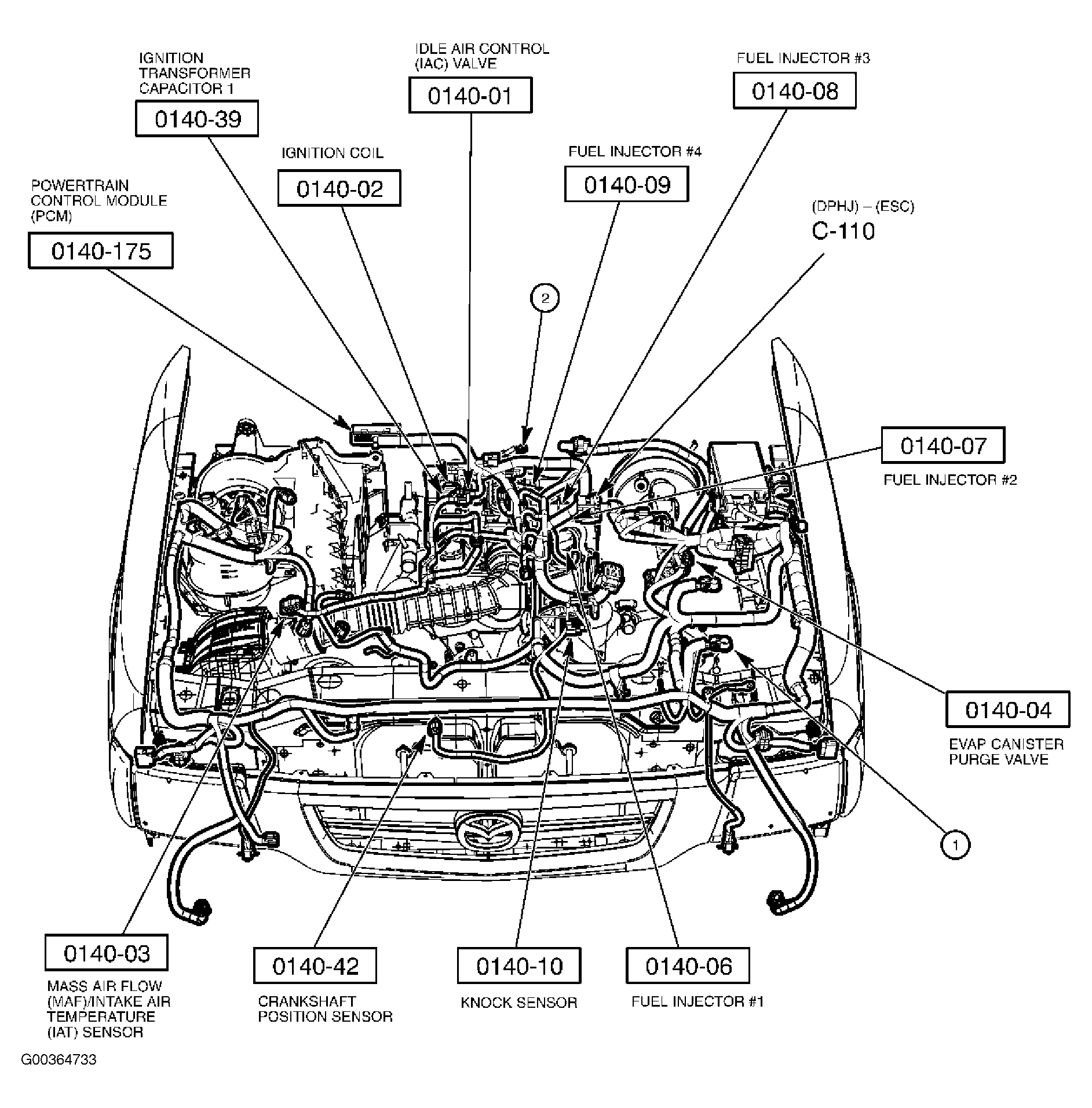

Fig 11: Engine Control System (2.3L)

G00364733

Courtesy of MAZDA MOTORS CORP.

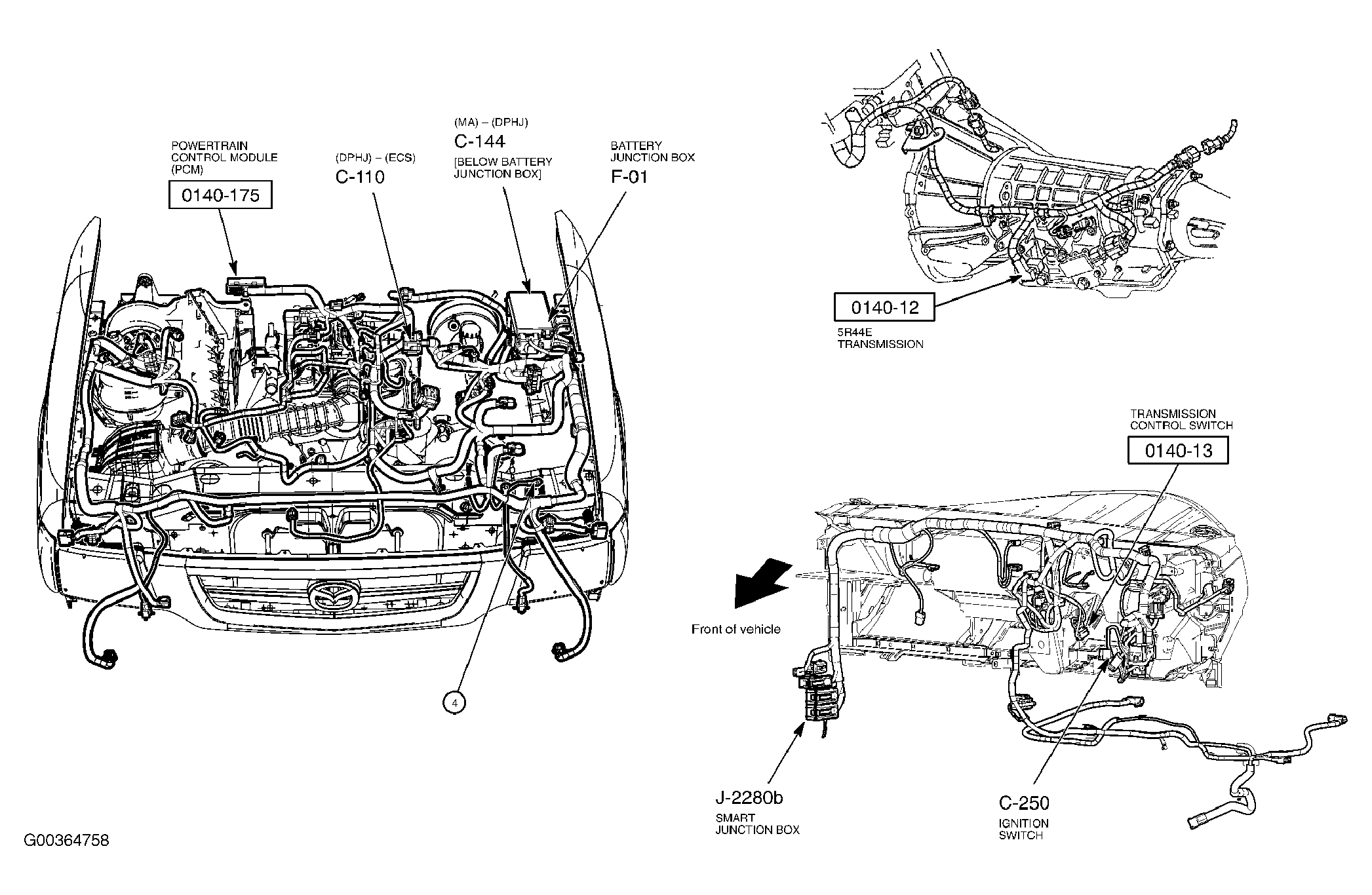

Fig 12: Engine Control System (2.3L, 3.0L & 4.0L)

G00364758

Courtesy of MAZDA MOTORS CORP.

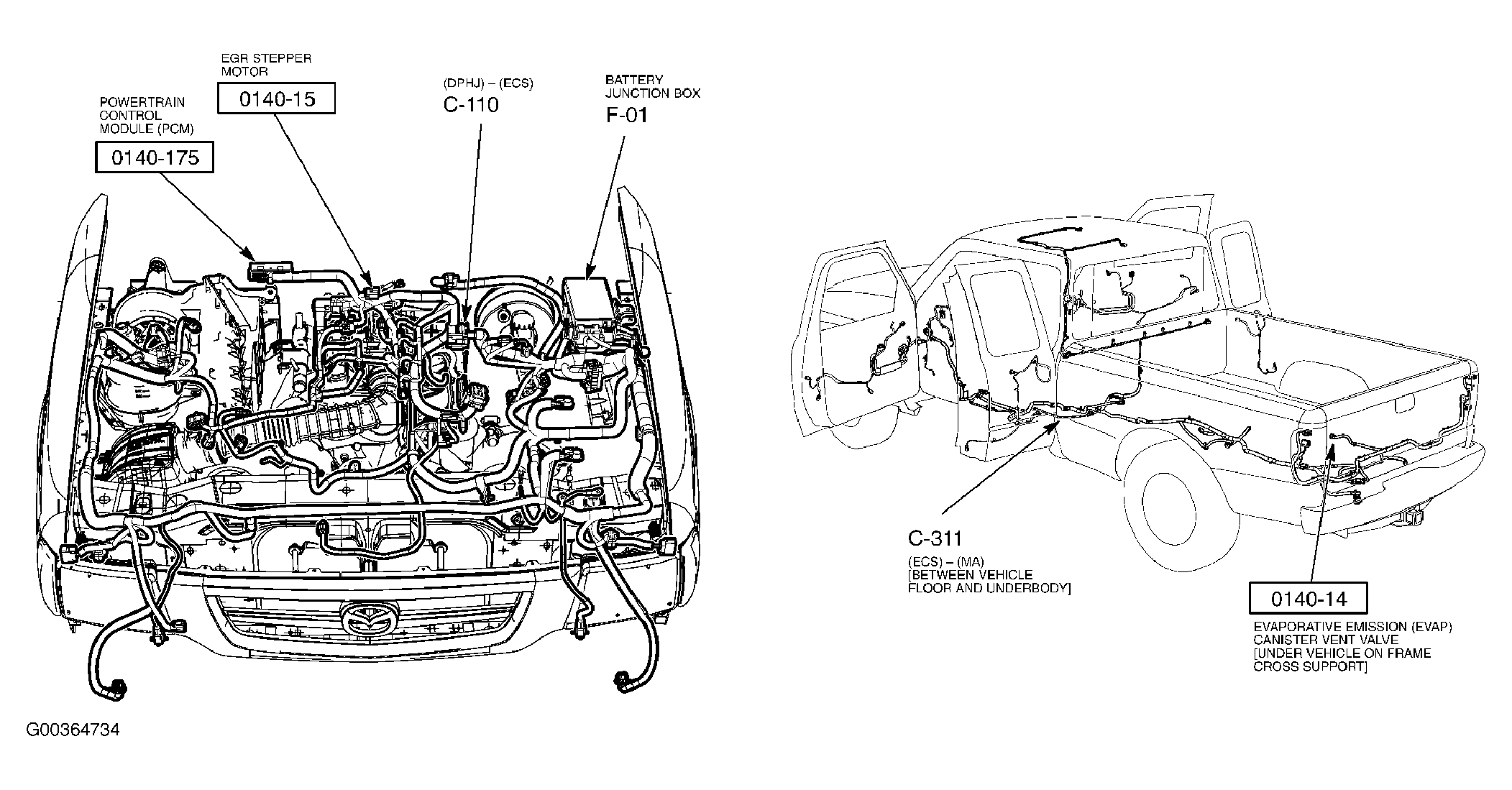

Fig 13: Engine Control System (2.3L)

G00364734

Courtesy of MAZDA MOTORS CORP.

Fig 14: Engine Control System (2.3L)

G00364735

Courtesy of MAZDA MOTORS CORP.

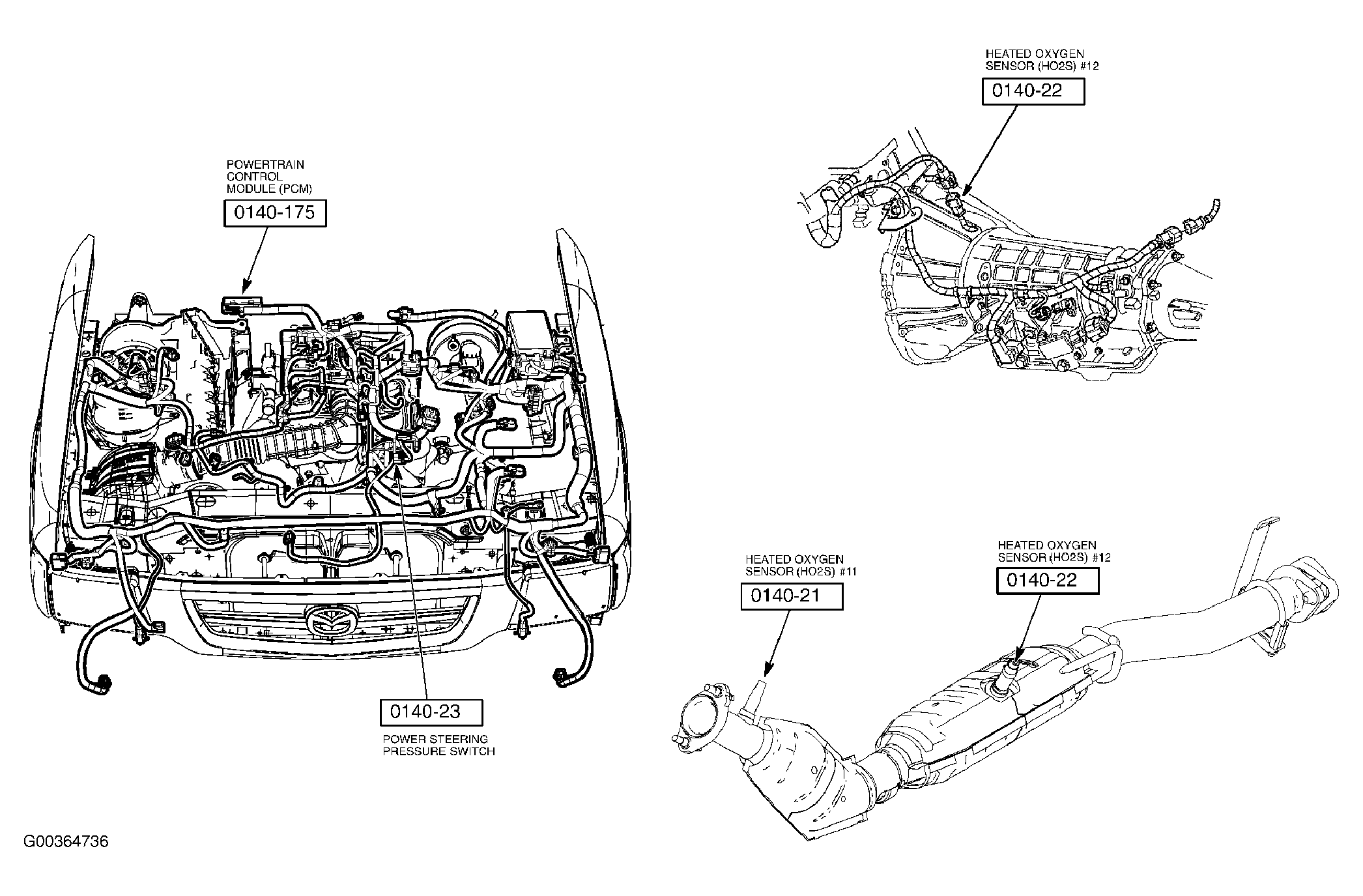

Fig 15: Engine Control System (2.3L)

G00364736

Courtesy of MAZDA MOTORS CORP.

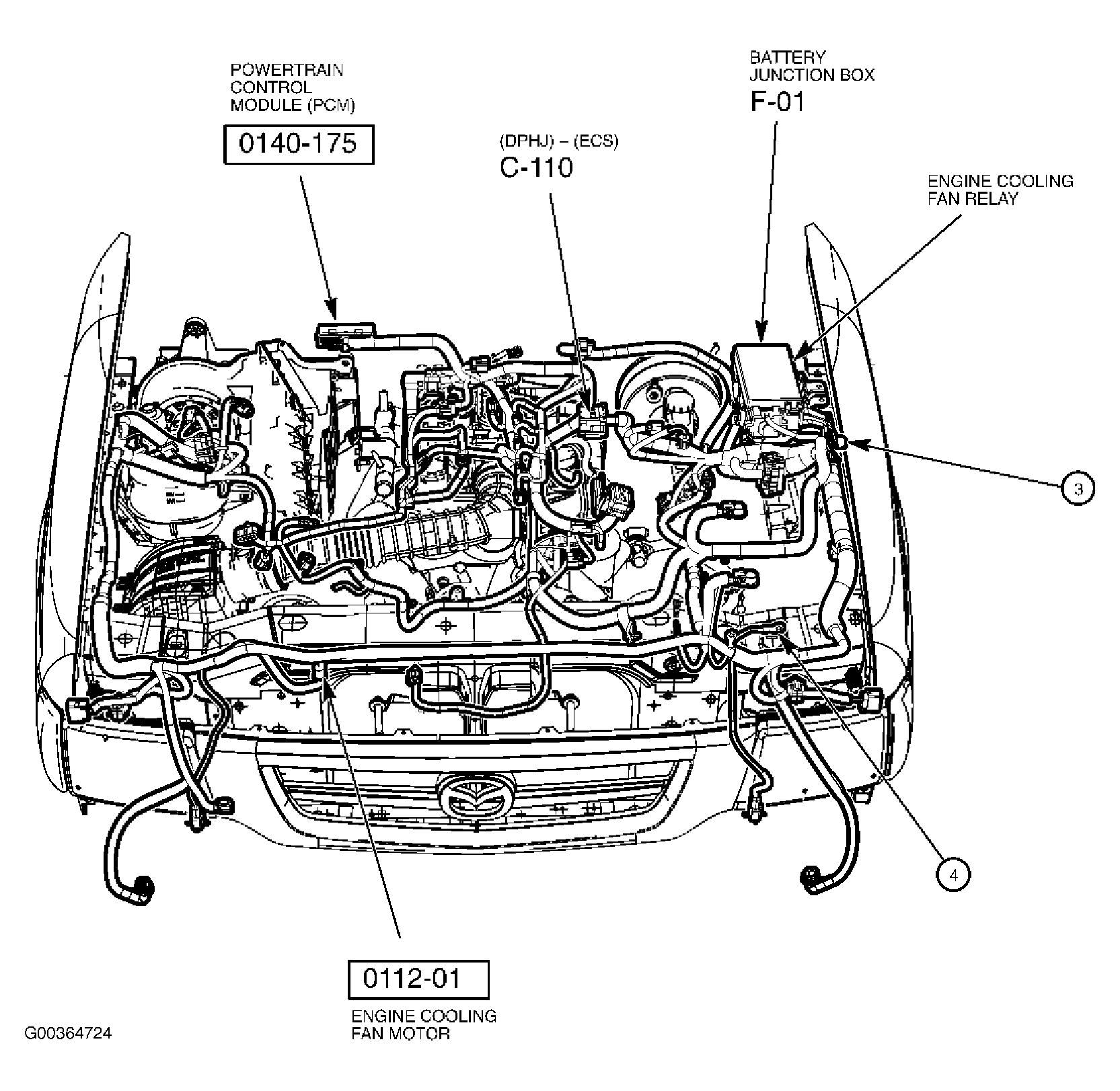

Fig 16: Engine Control System (2.3L, 3.0L & 4.0L)

G00364724

Courtesy of MAZDA MOTORS CORP.

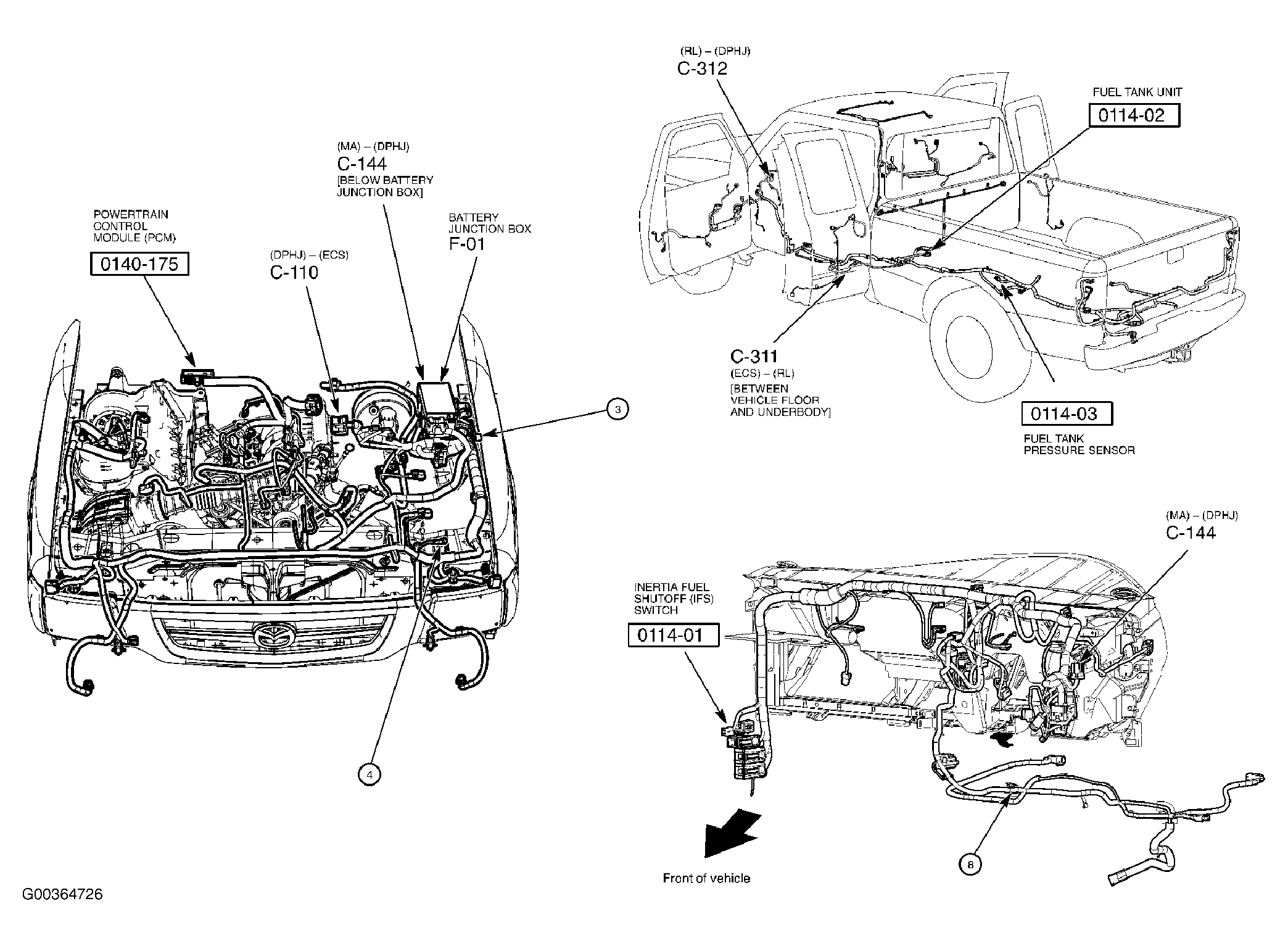

Fig 17: Engine Control System (3.0L)

G00364726

Courtesy of MAZDA MOTORS CORP.

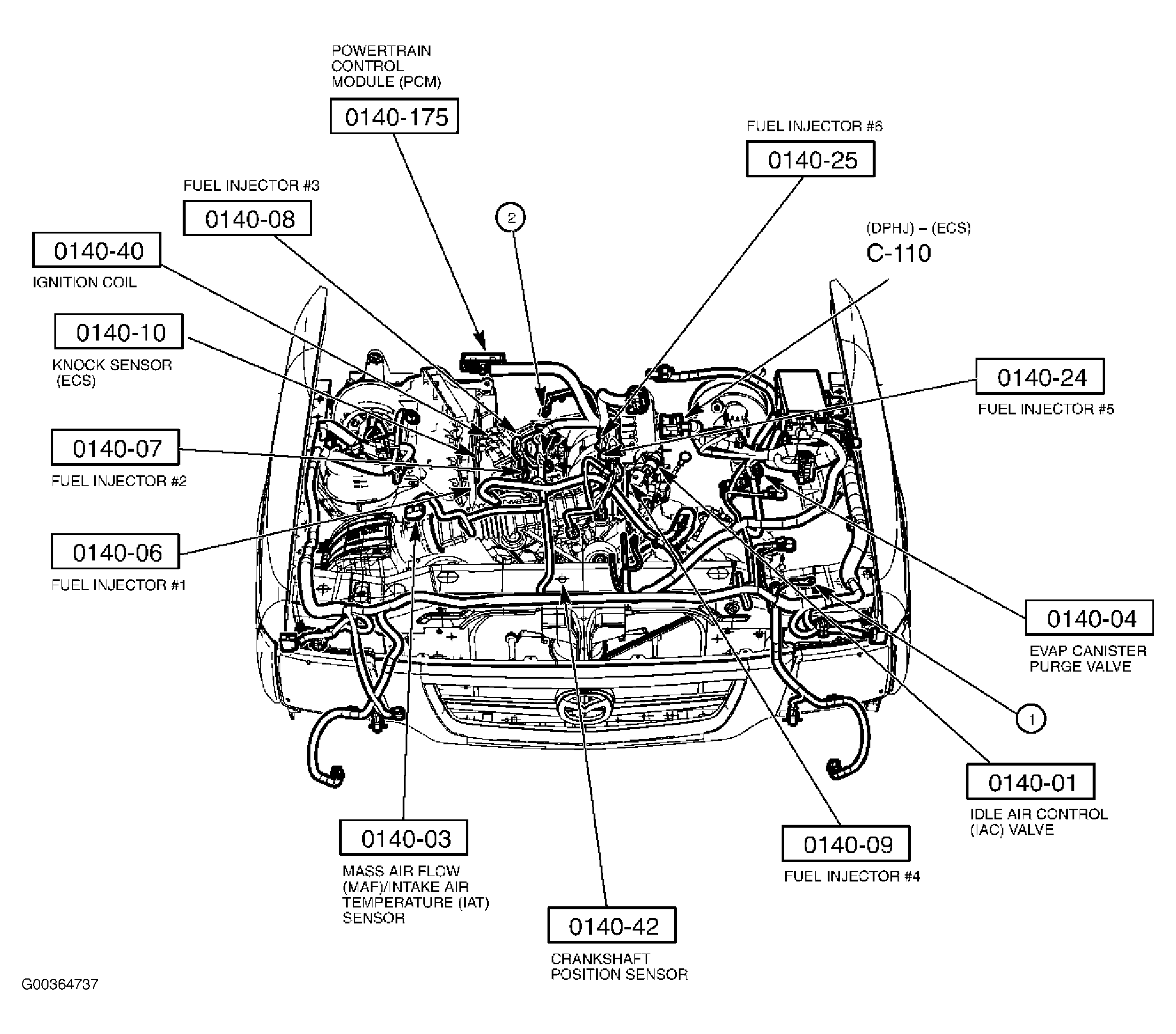

Fig 18: Engine Control System (3.0L)

G00364737

Courtesy of MAZDA MOTORS CORP.

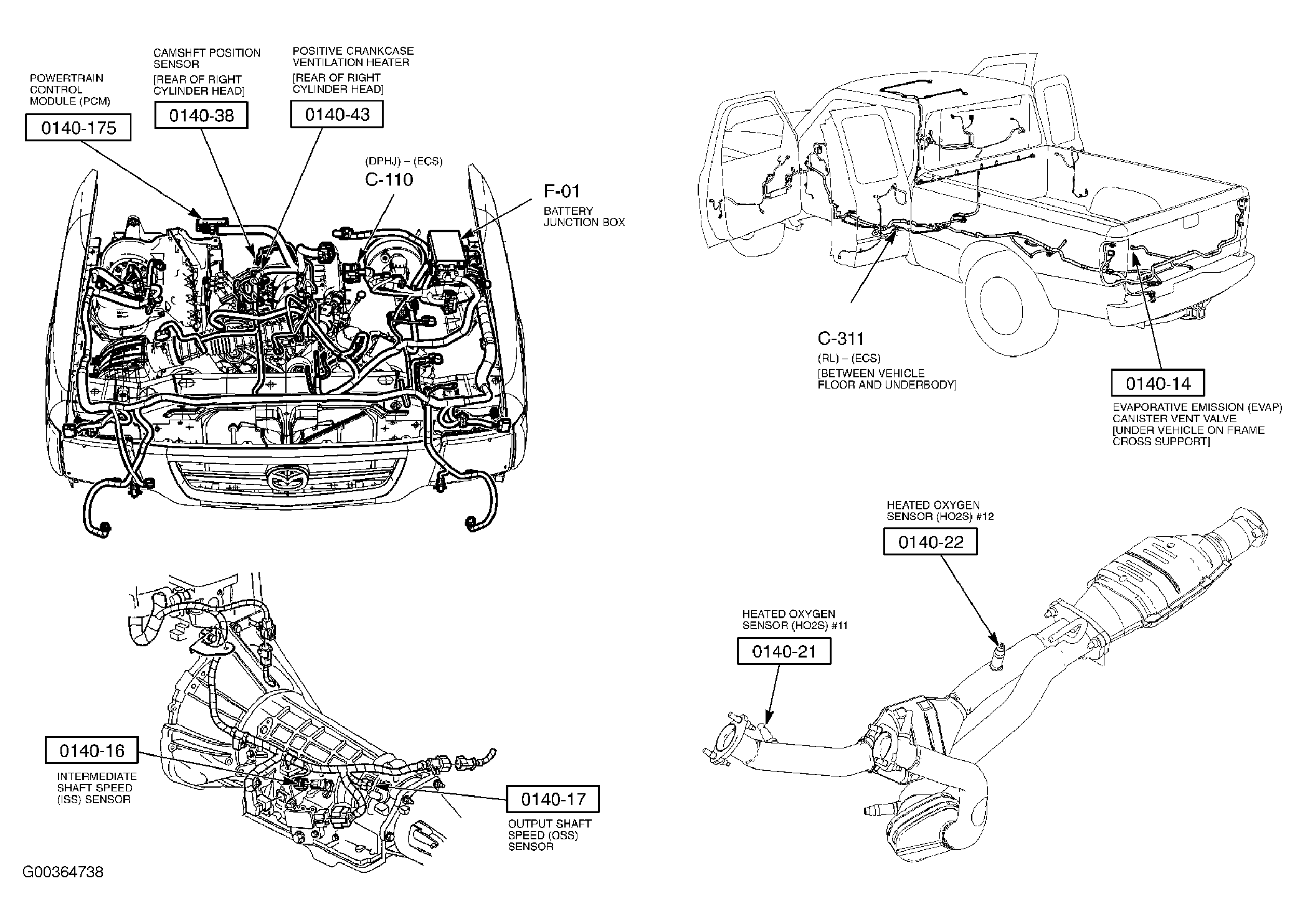

Fig 19: Engine Control System (3.0L)

G00364738

Courtesy of MAZDA MOTORS CORP.

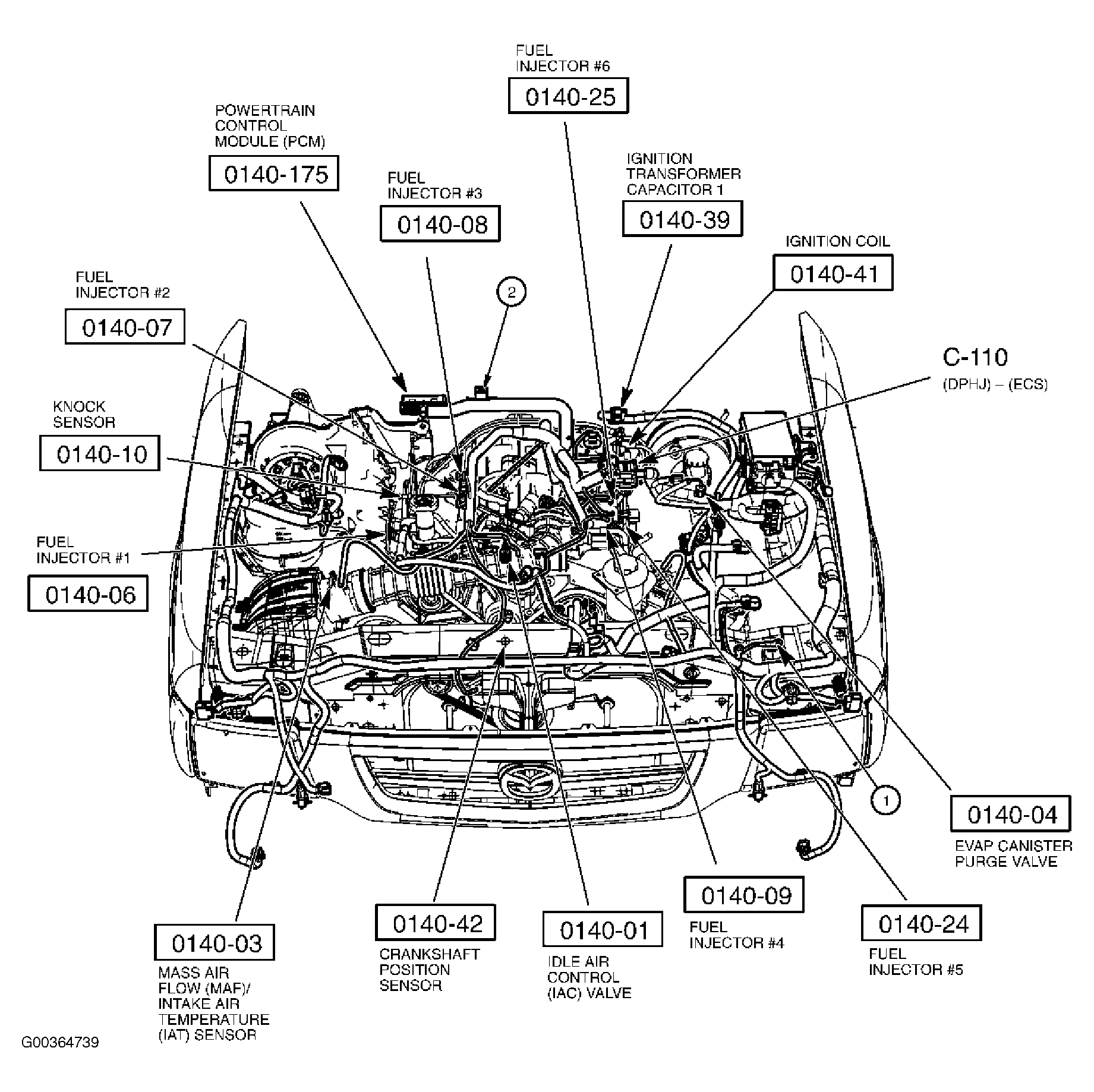

Fig 20: Engine Control System (4.0L)

G00364739

Courtesy of MAZDA MOTORS CORP.

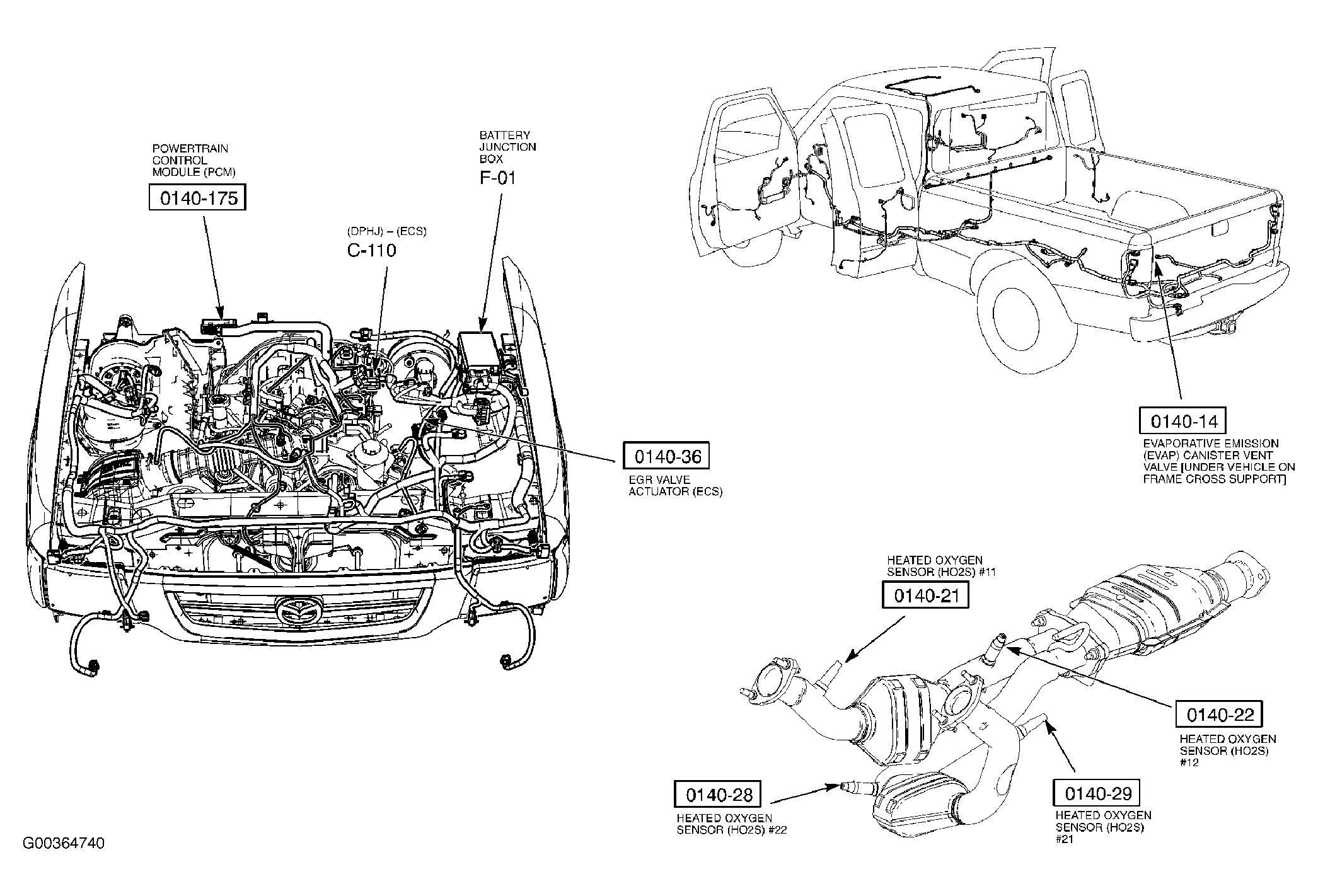

Fig 21: Engine Control System (4.0L)

G00364740

Courtesy of MAZDA MOTORS CORP.

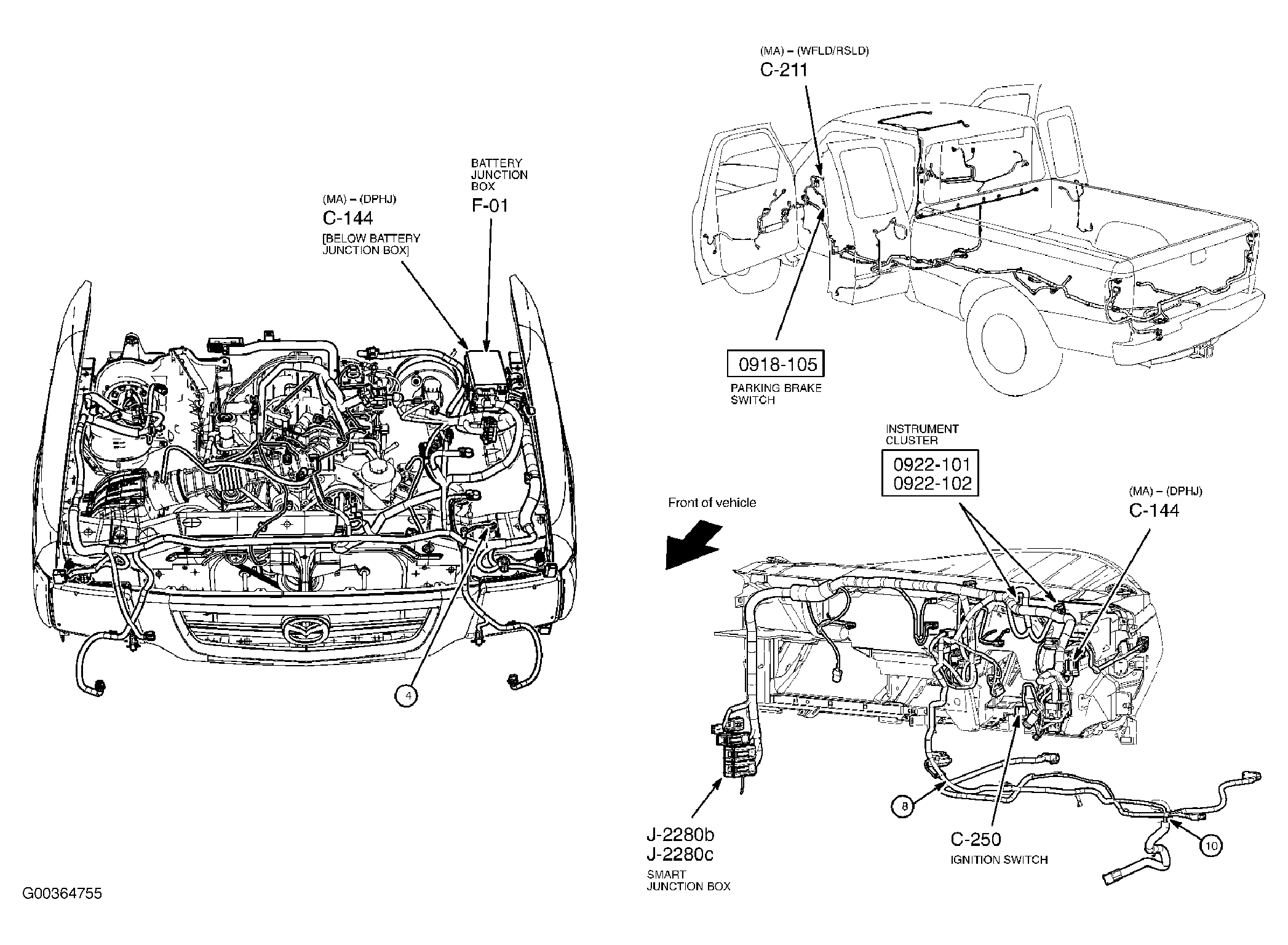

Fig 22: Instrument Cluster (2.3L, 3.0L & 4.0L)

G00364755

Courtesy of MAZDA MOTORS CORP.

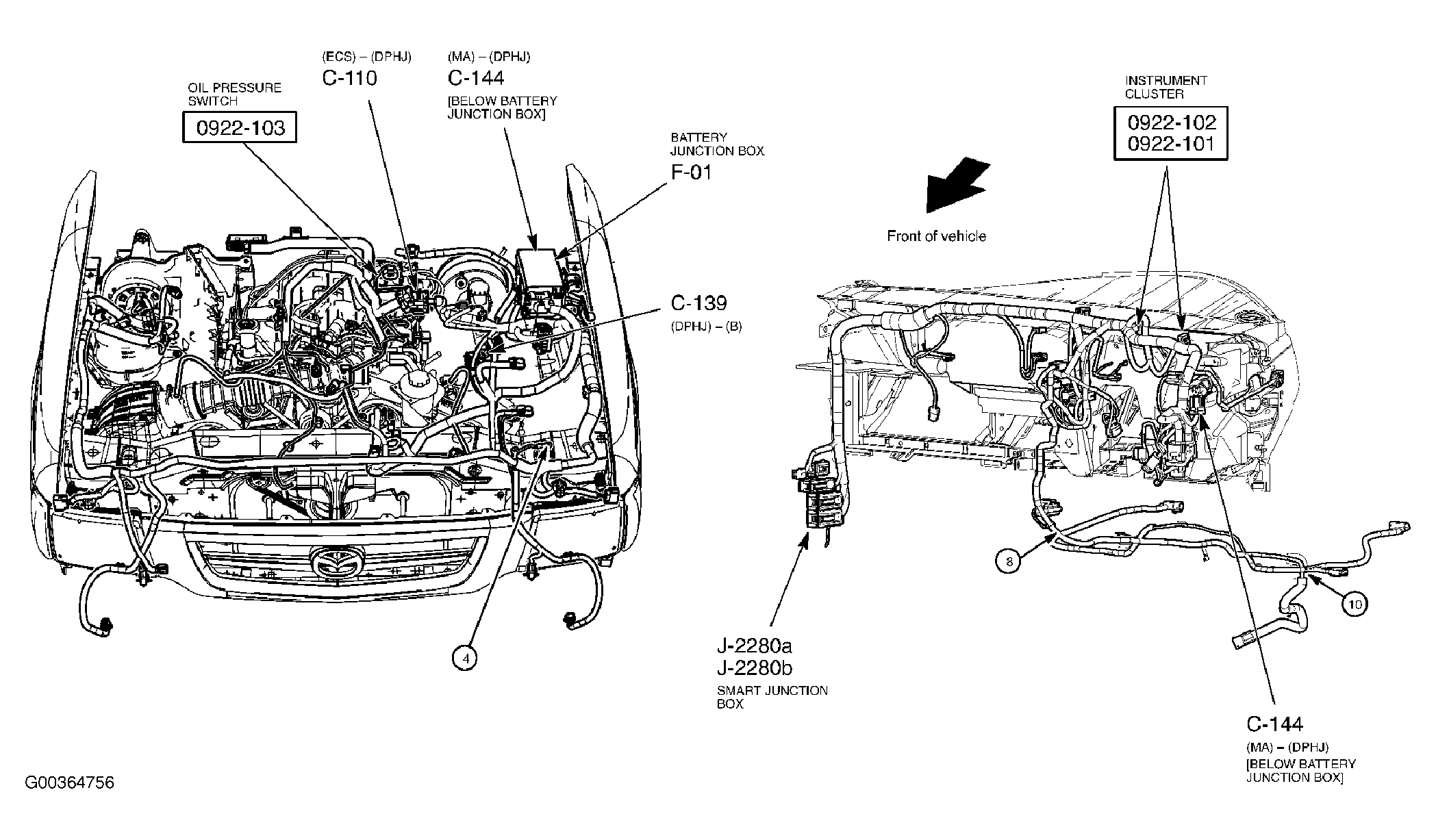

Fig 23: Instrument Cluster (2.3L, 3.0L & 4.0L)

G00364756

Courtesy of MAZDA MOTORS CORP.

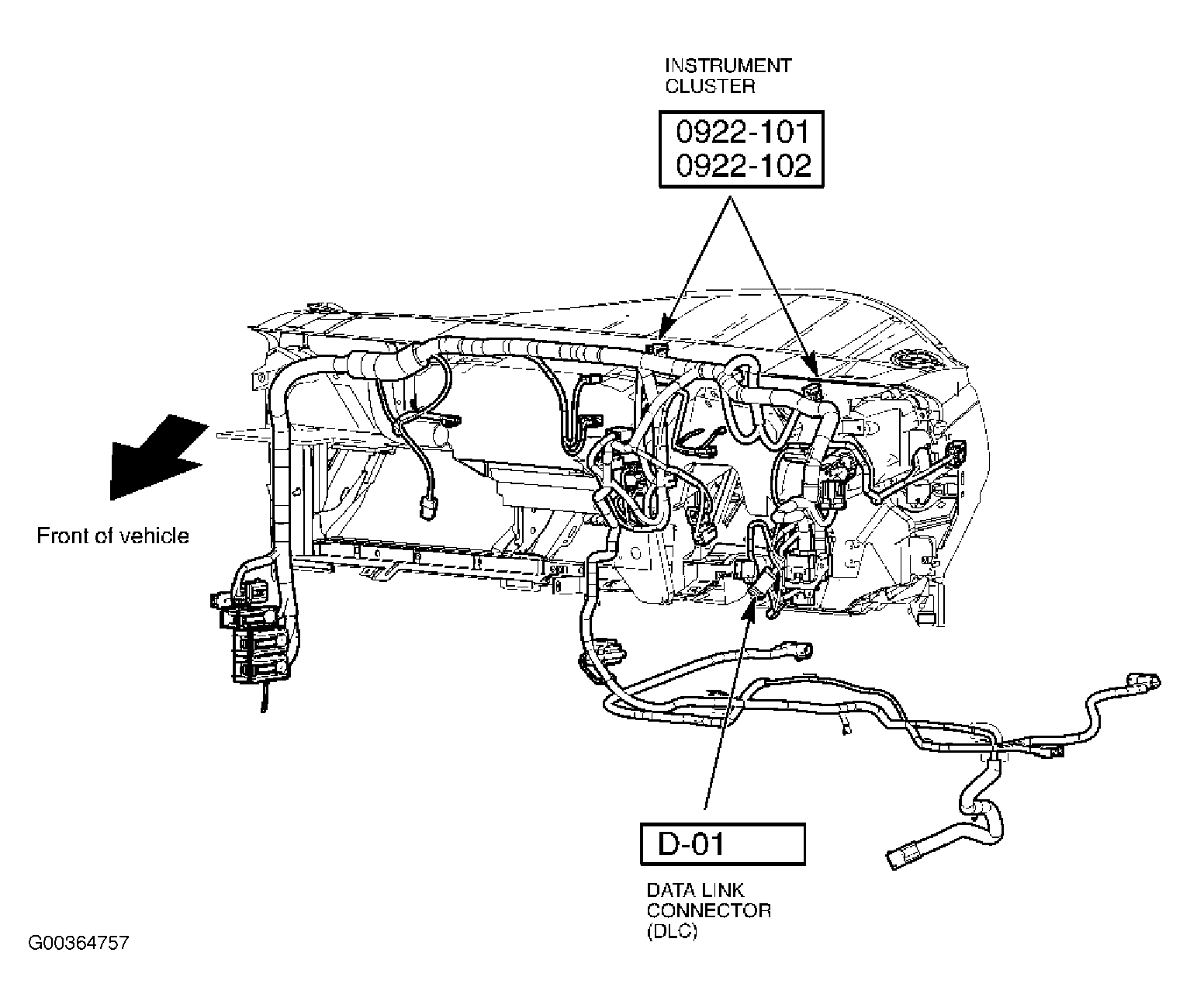

Fig 24: Instrument Cluster (2.3L, 3.0L & 4.0L)

G00364757

Courtesy of MAZDA MOTORS CORP.

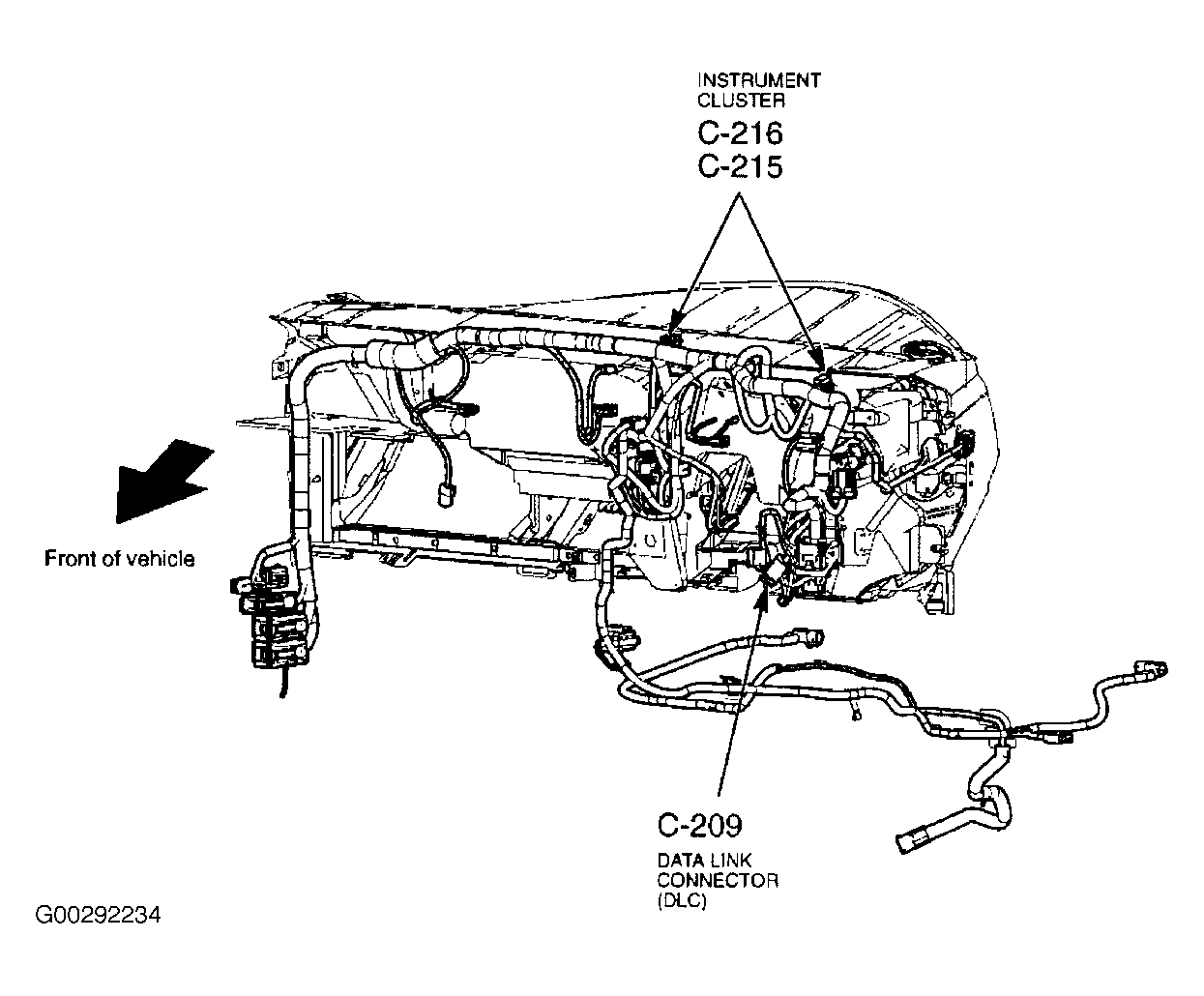

Fig 25: Instrument Cluster

G00292234

Courtesy of MAZDA MOTORS CORP.

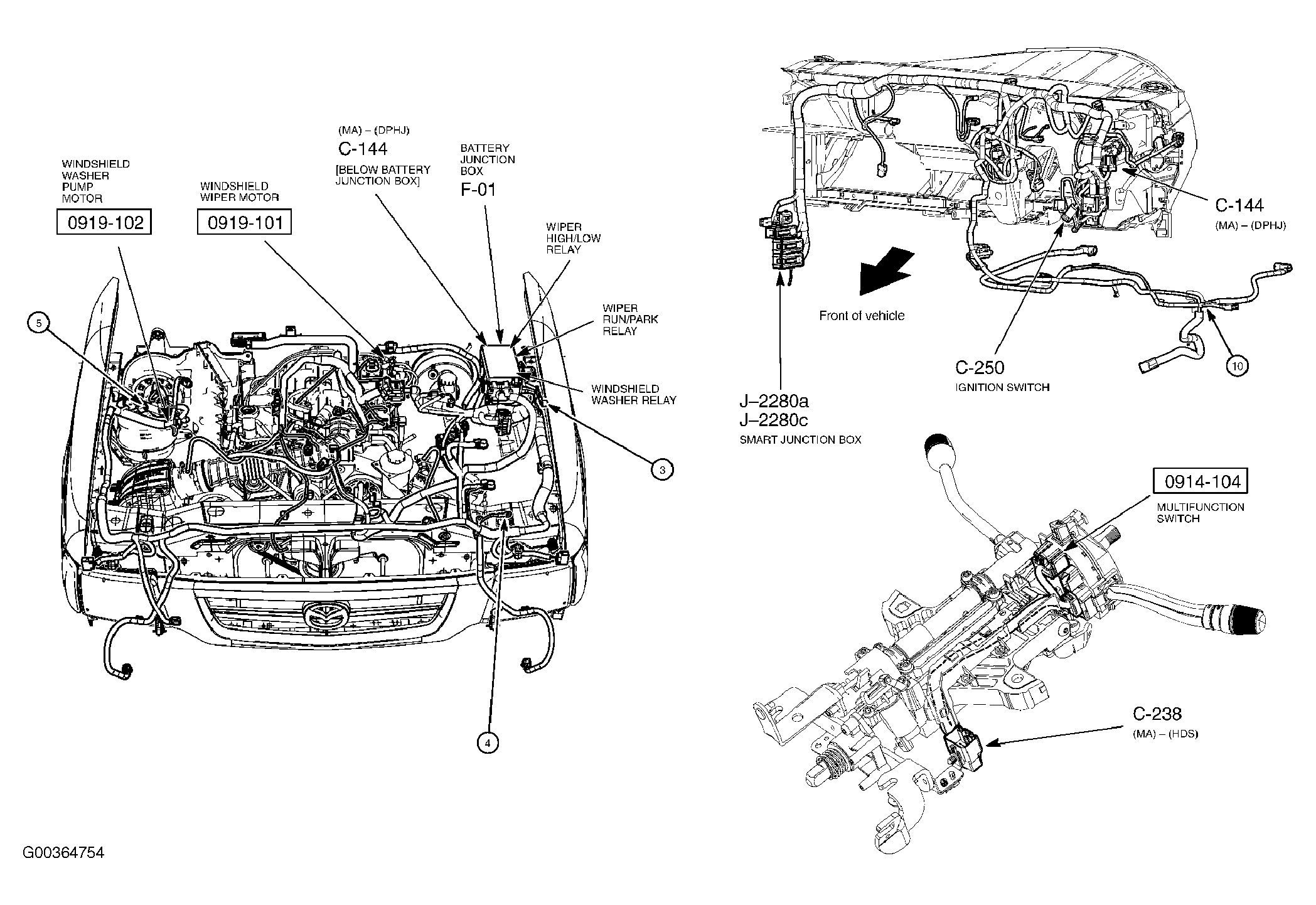

Fig 26: Wiper/Washer System (2.3L, 3.0L & 4.0L)

G00364754

Courtesy of MAZDA MOTORS CORP.

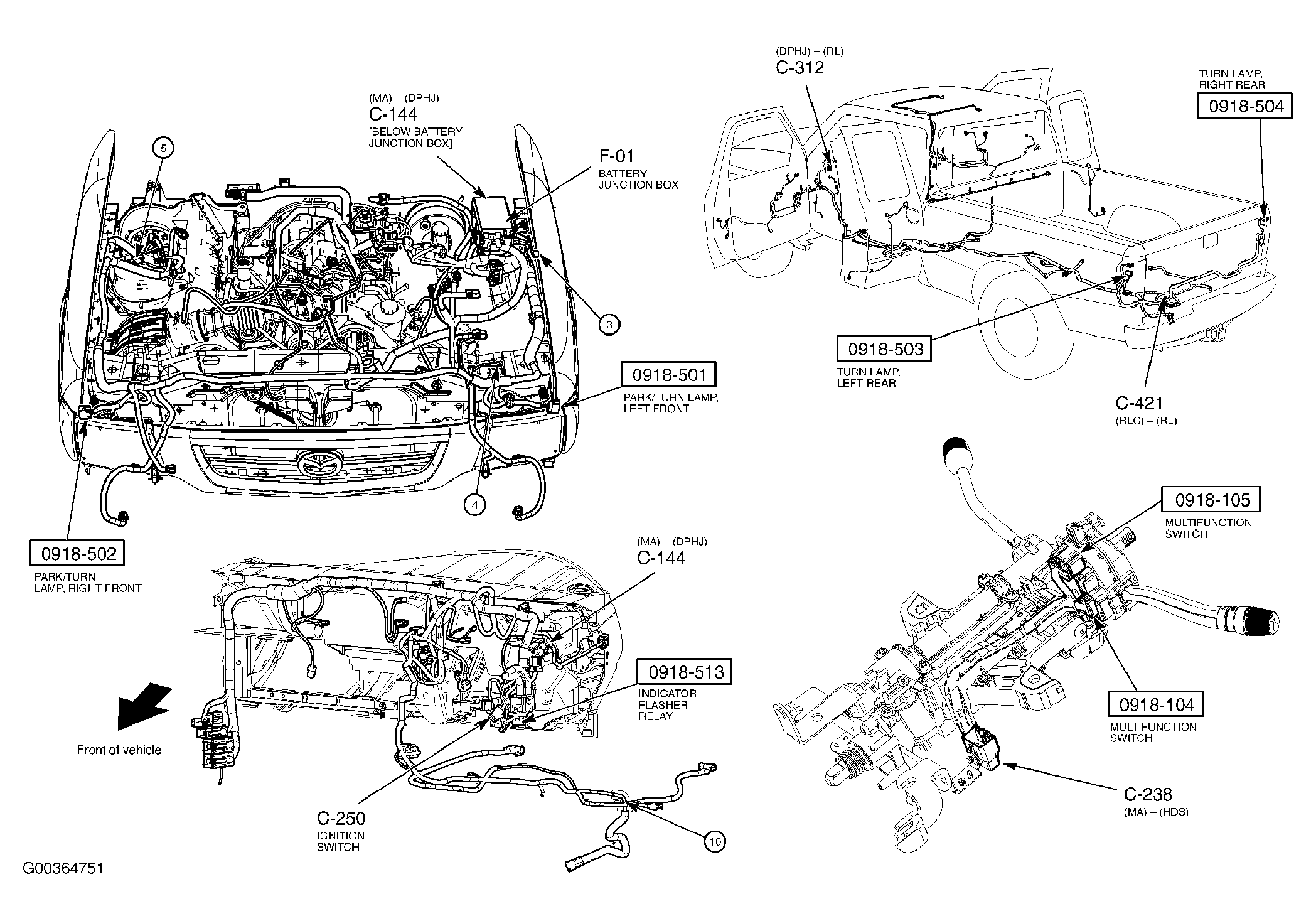

Fig 27: Turn & Hazard Lights (2.3L, 3.0L & 4.0L)

G00364751

Courtesy of MAZDA MOTORS CORP.

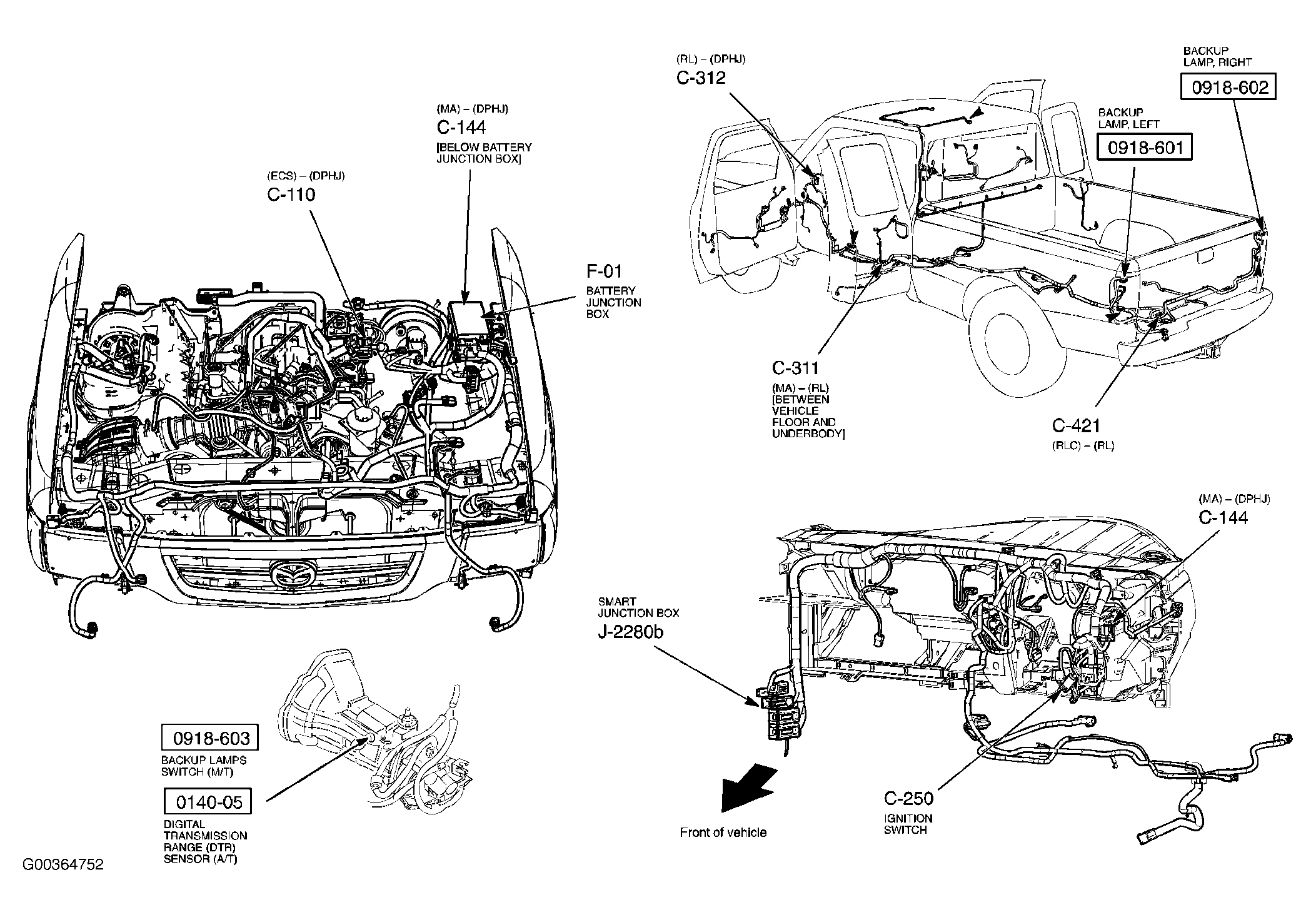

Fig 28: Stop & Back-Up Lights (2.3L, 3.0L & 4.0L)

G00364752

Courtesy of MAZDA MOTORS CORP.

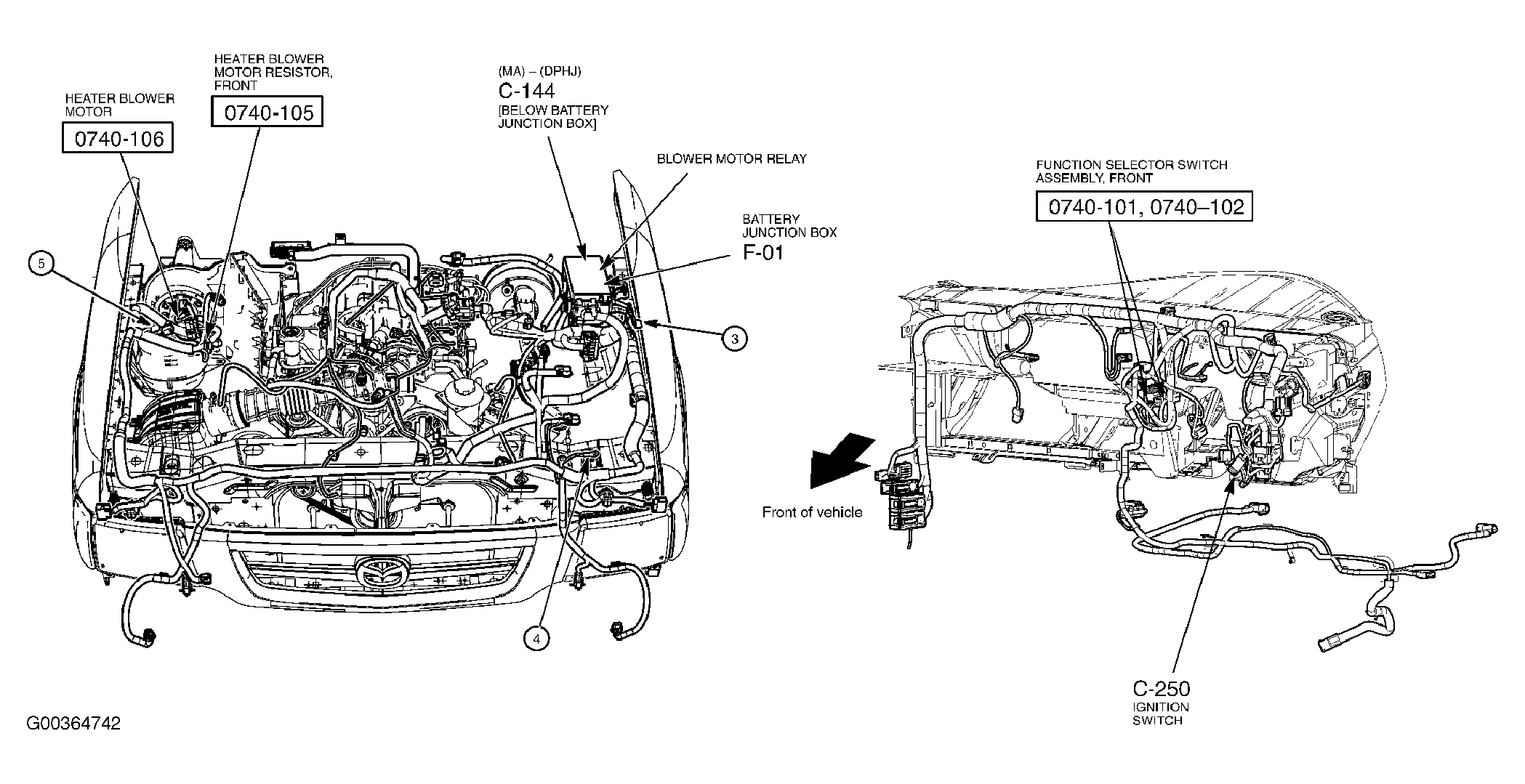

Fig 29: HVAC System (2.3L, 3.0L & 4.0L)

G00364742

Courtesy of MAZDA MOTORS CORP.

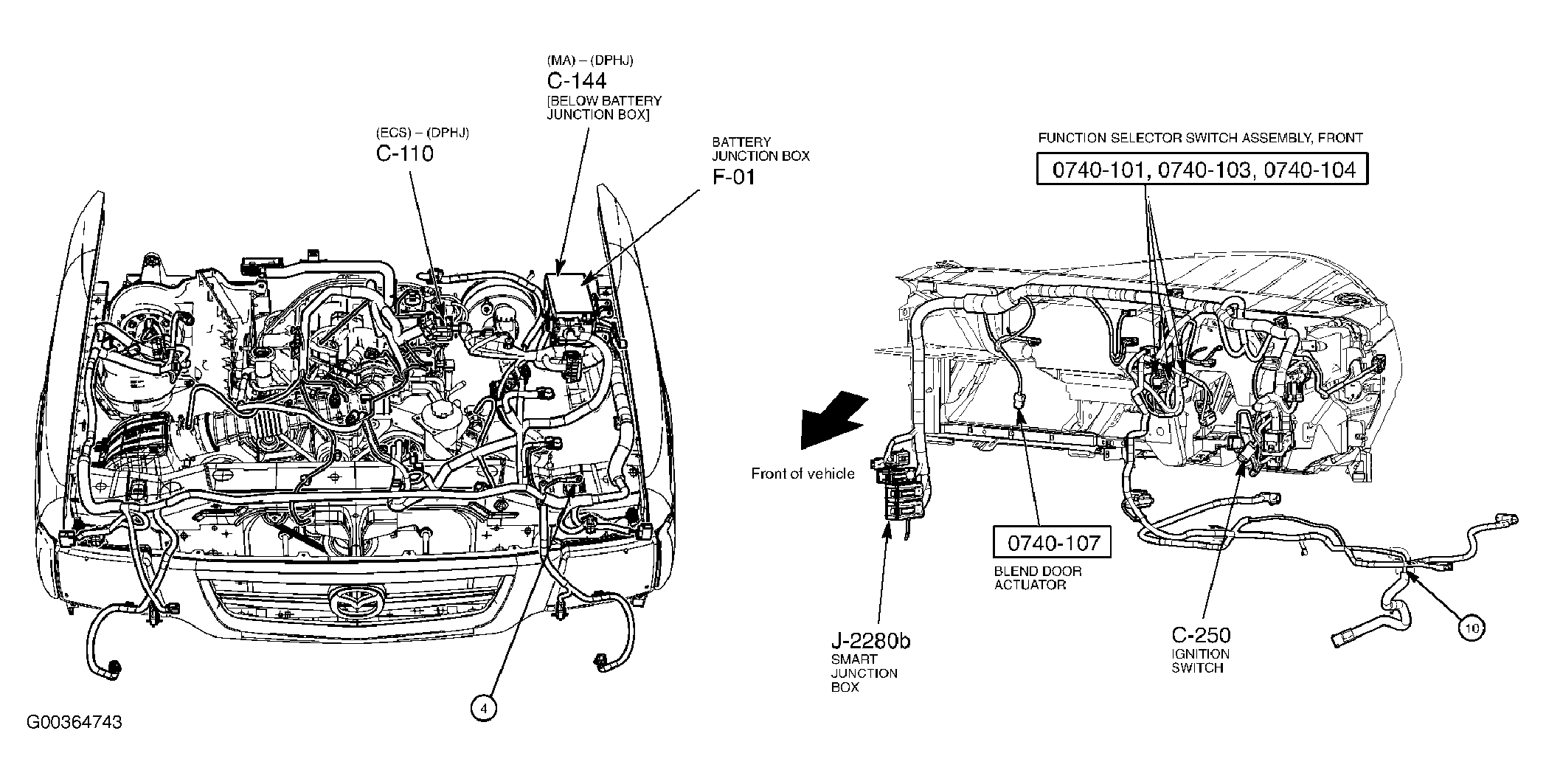

Fig 30: HVAC System (2.3L, 3.0L & 4.0L)

G00364743

Courtesy of MAZDA MOTORS CORP.

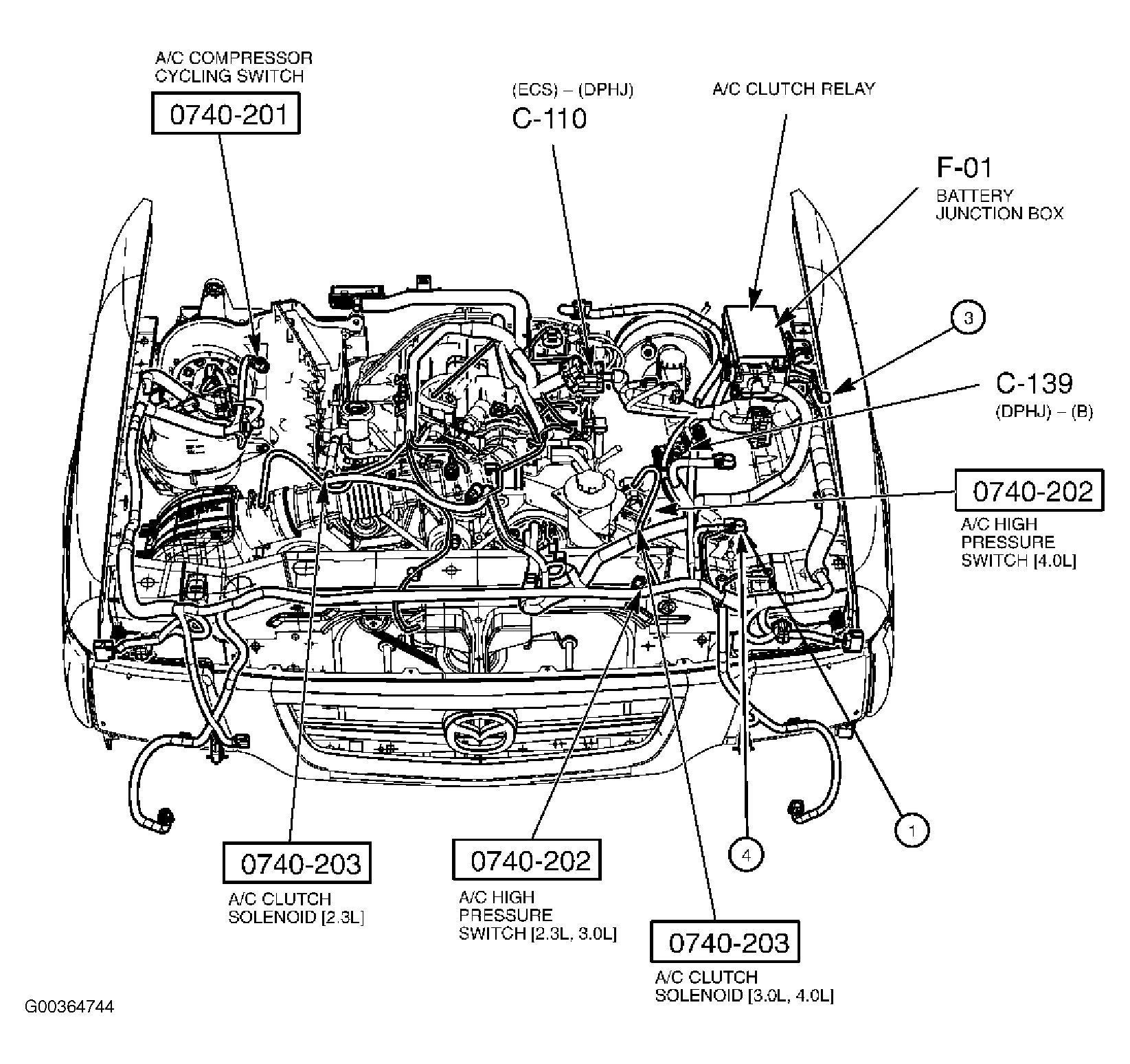

Fig 31: HVAC System (2.3L, 3.0L & 4.0L)

G00364744

Courtesy of MAZDA MOTORS CORP.

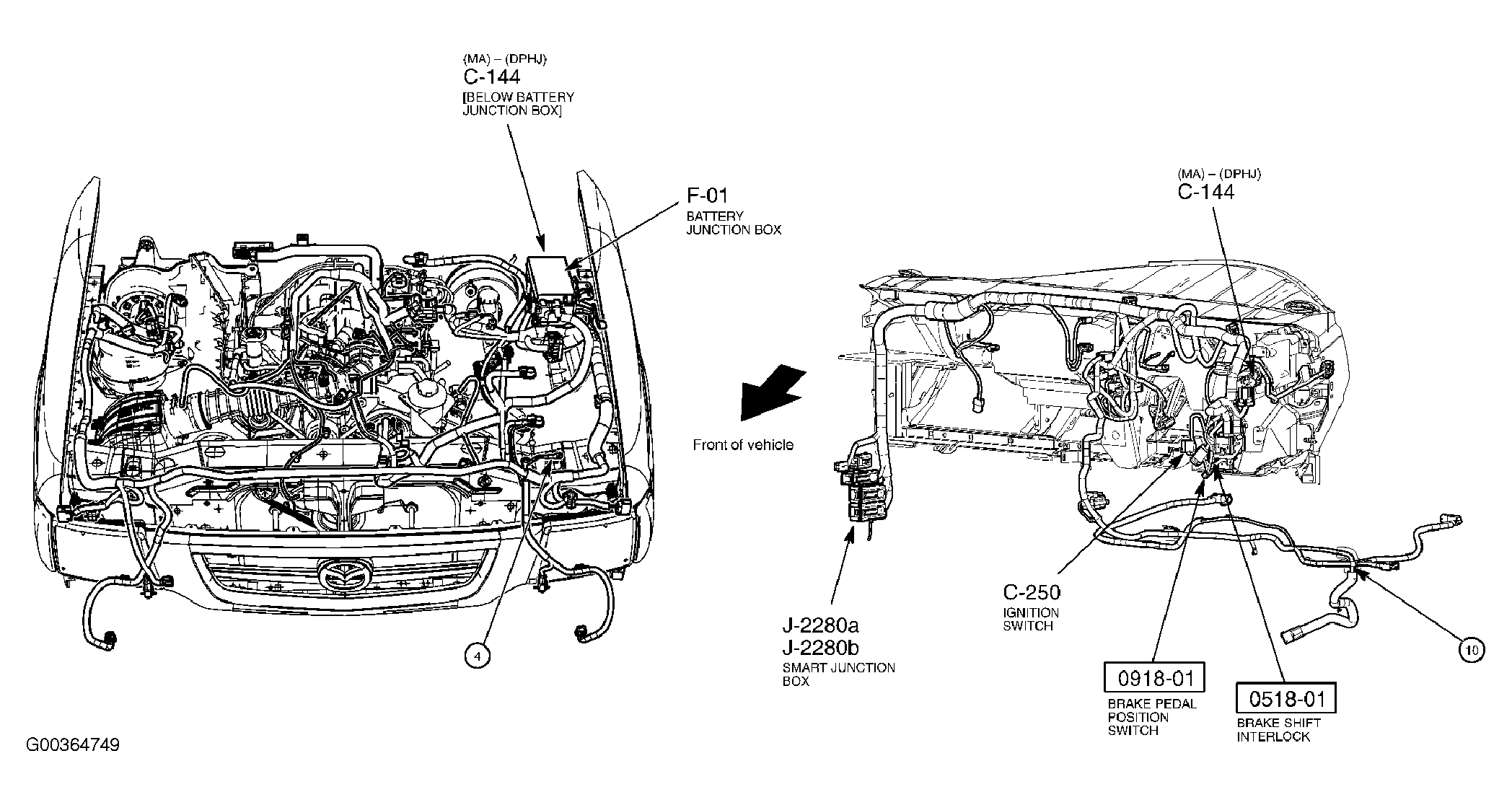

Fig 32: Shift Interlock System (2.3L, 3.0L & 4.0L)

G00364749

Courtesy of MAZDA MOTORS CORP.

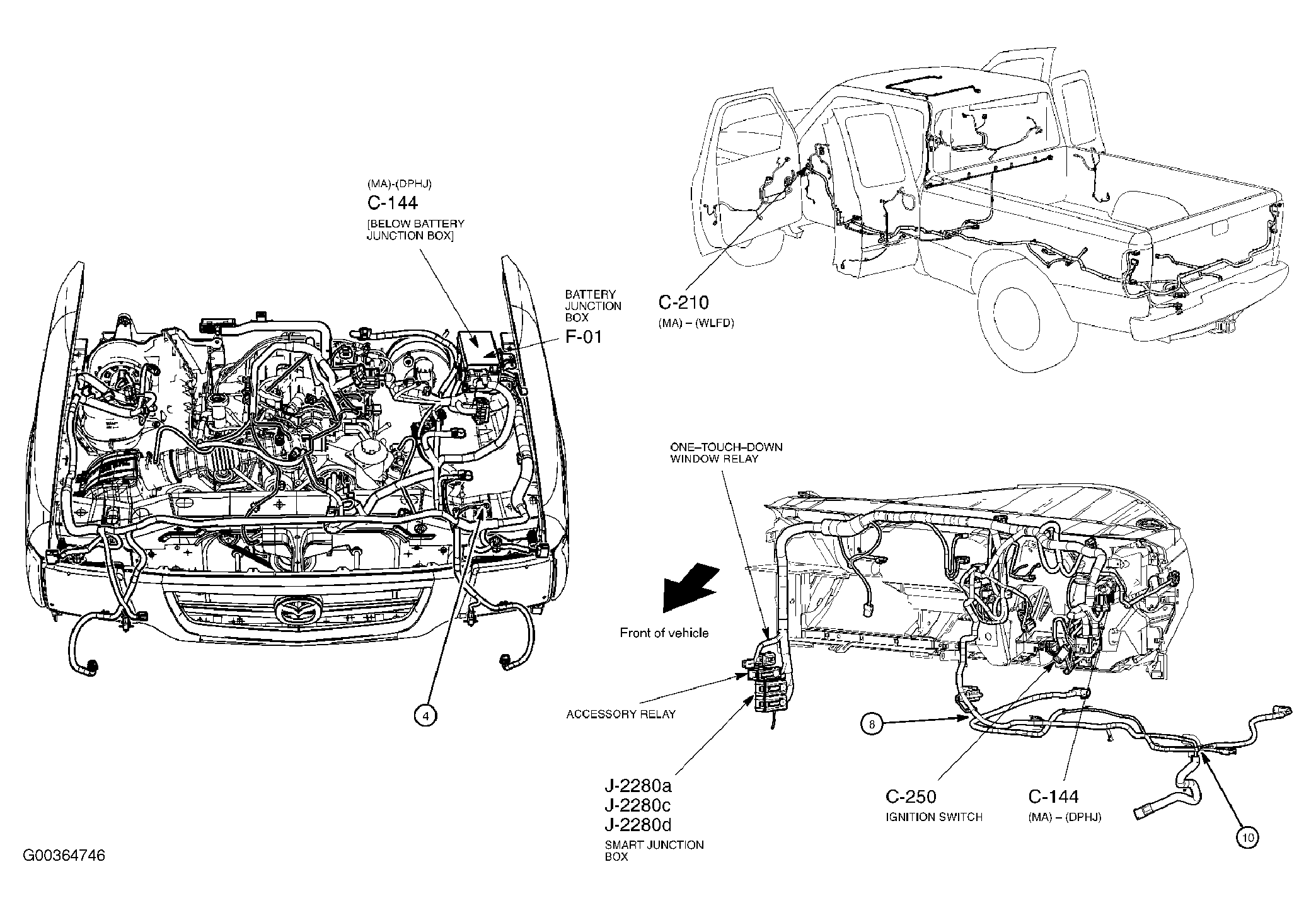

Fig 33: Power Windows (2.3L, 3.0L & 4.0L)

G00364746

Courtesy of MAZDA MOTORS CORP.

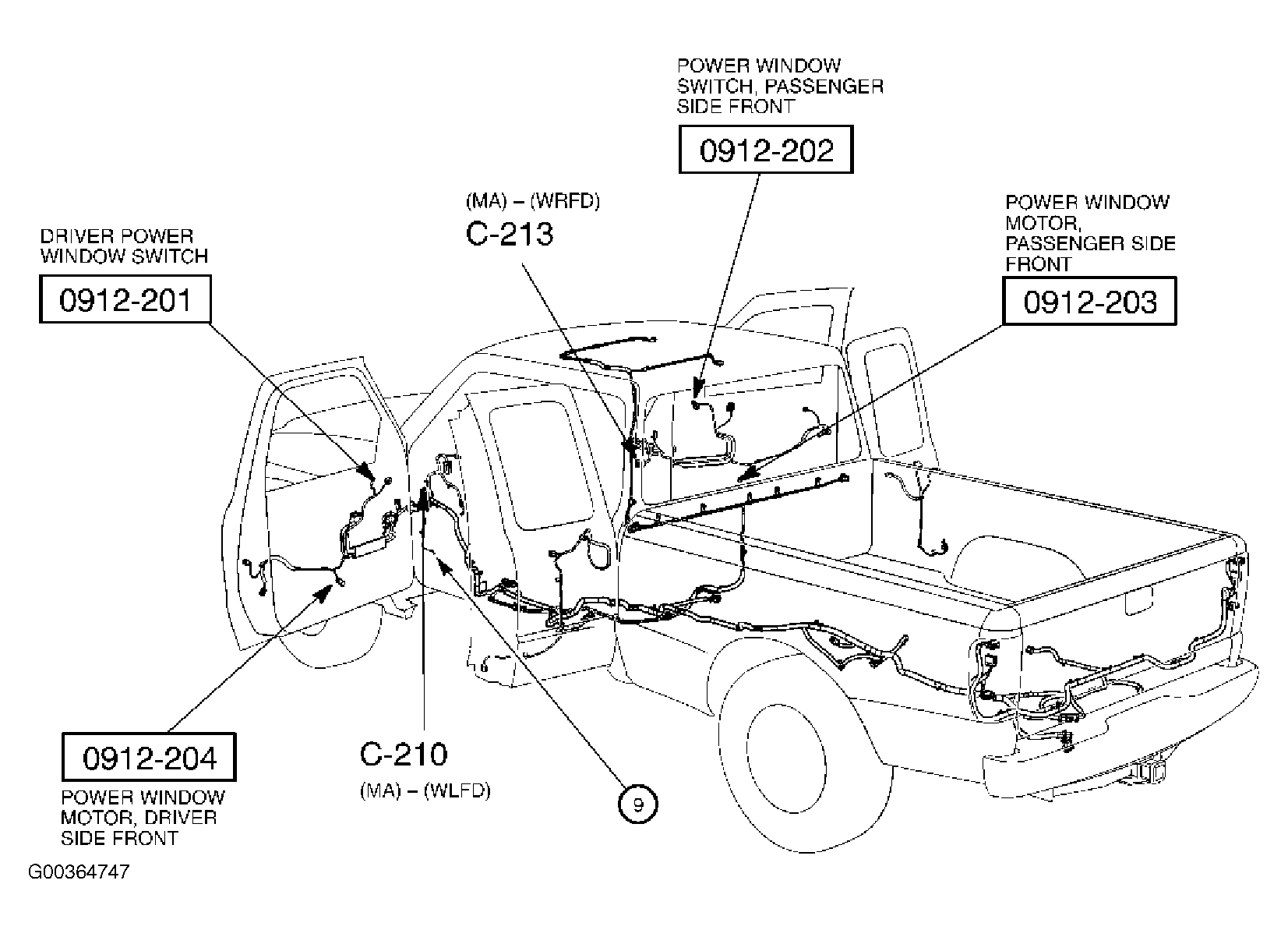

Fig 34: Power Windows

G00364747

Courtesy of MAZDA MOTORS CORP.

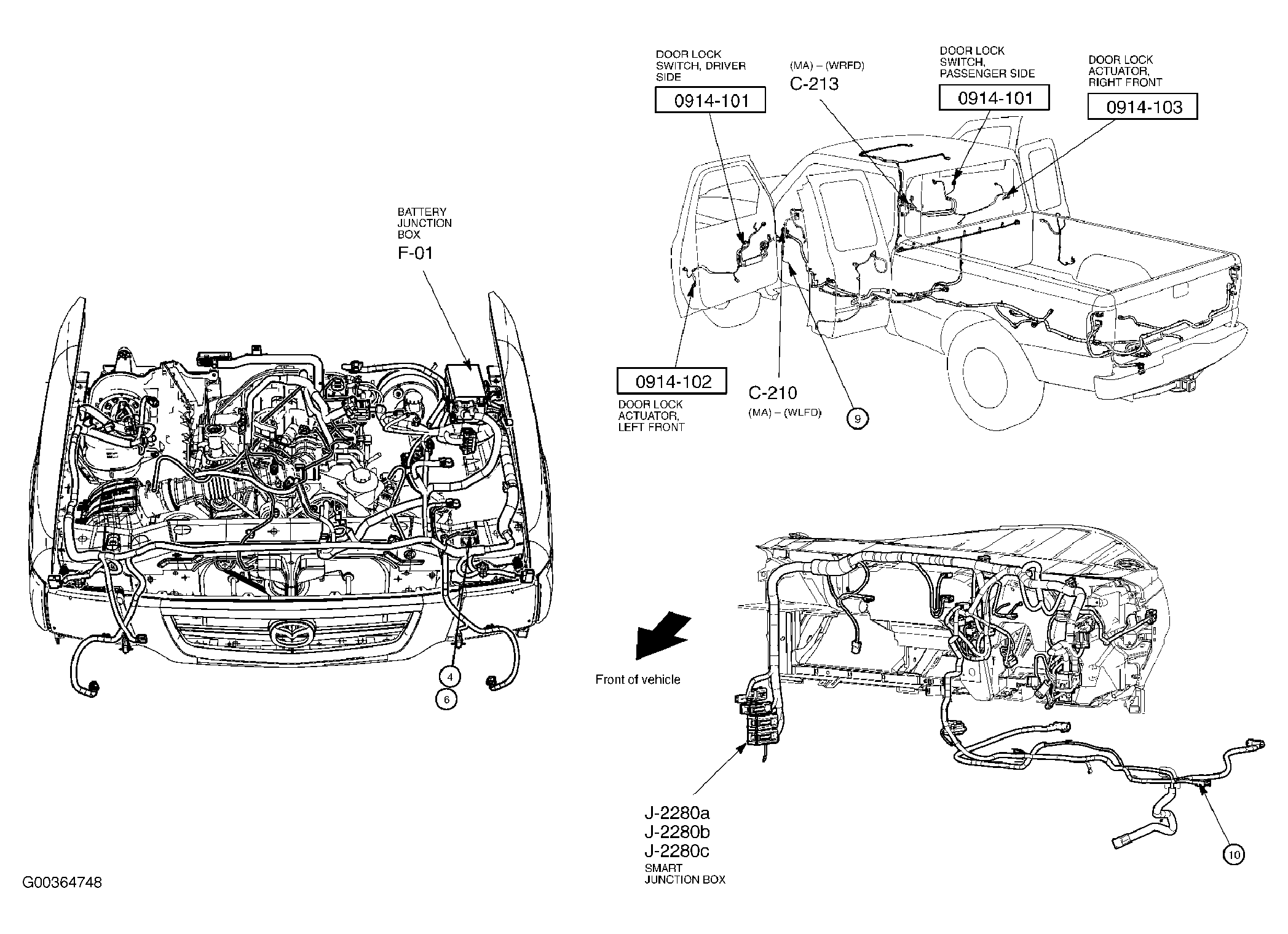

Fig 35: Power Door Locks (2.3L, 3.0L & 4.0L)

G00364748

Courtesy of MAZDA MOTORS CORP.

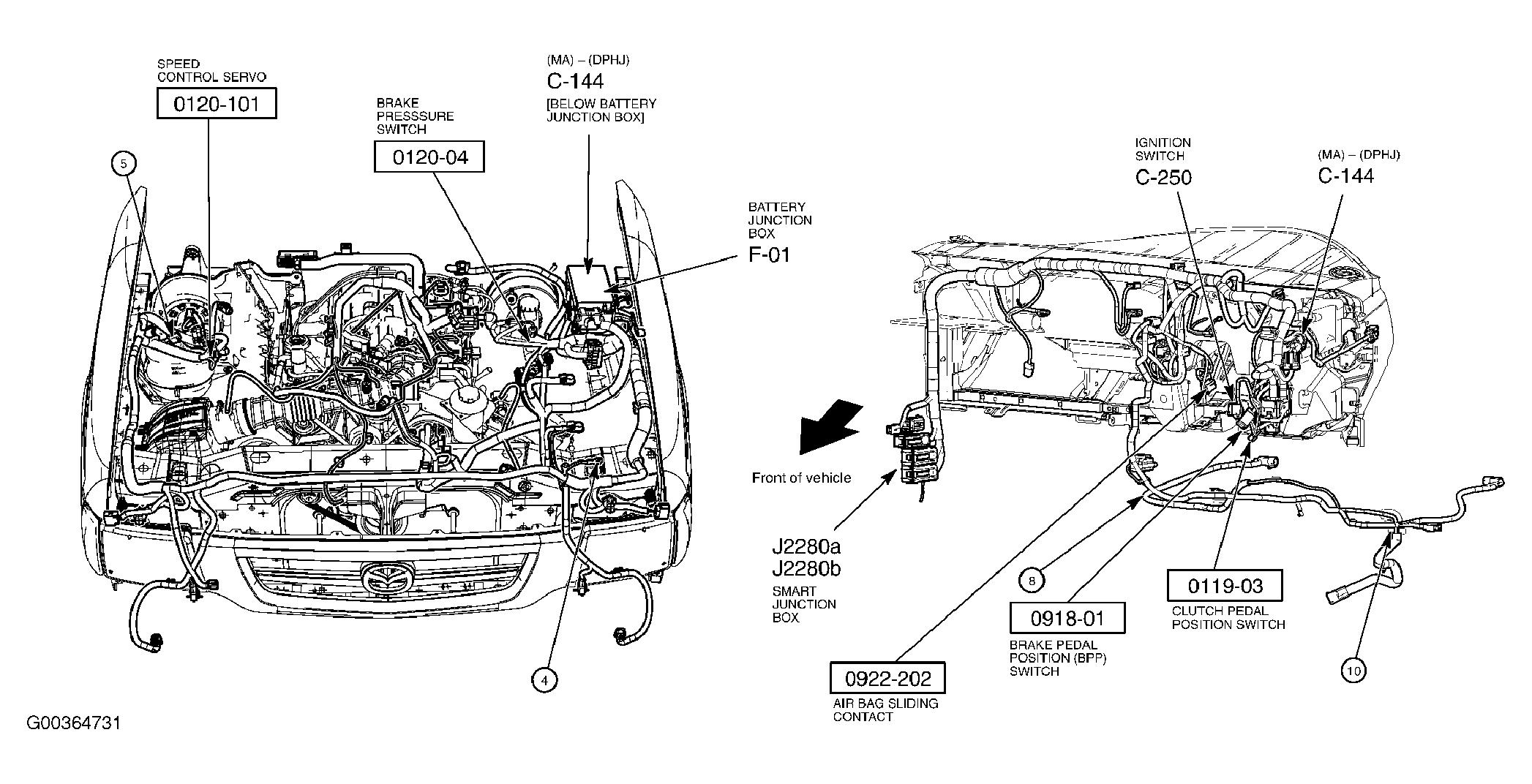

Fig 36: Cruise Control System (2.3L, 3.0L & 4.0L)

G00364731

Courtesy of MAZDA MOTORS CORP.

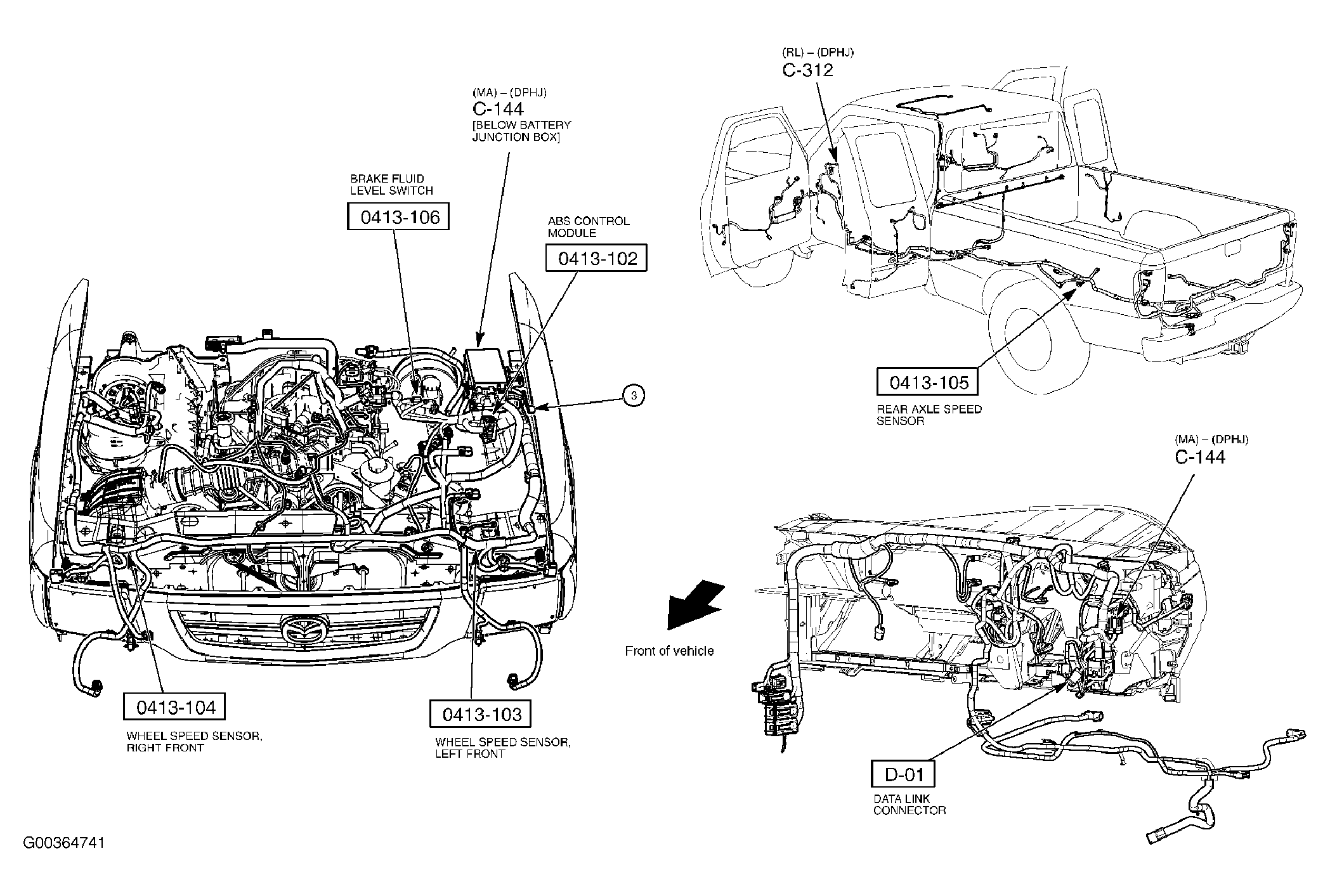

Fig 37: ABS Control System (2.3L, 3.0L & 4.0L)

G00364741

Courtesy of MAZDA MOTORS CORP.

Fig 38: Air Bag System

G00364745

Courtesy of MAZDA MOTORS CORP.

Fig 39: Engine Compartment (2.3L, 3.0L & 4.0L)

G00364723

Courtesy of MAZDA MOTORS CORP.

Fig 40: Engine Compartment (2.3L, 3.0L & 4.0L)

G00364750

Courtesy of MAZDA MOTORS CORP.

Fig 41: Vehicle Overview (2.3L, 3.0L & 4.0L)

G00364753

Courtesy of MAZDA MOTORS CORP.
