Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

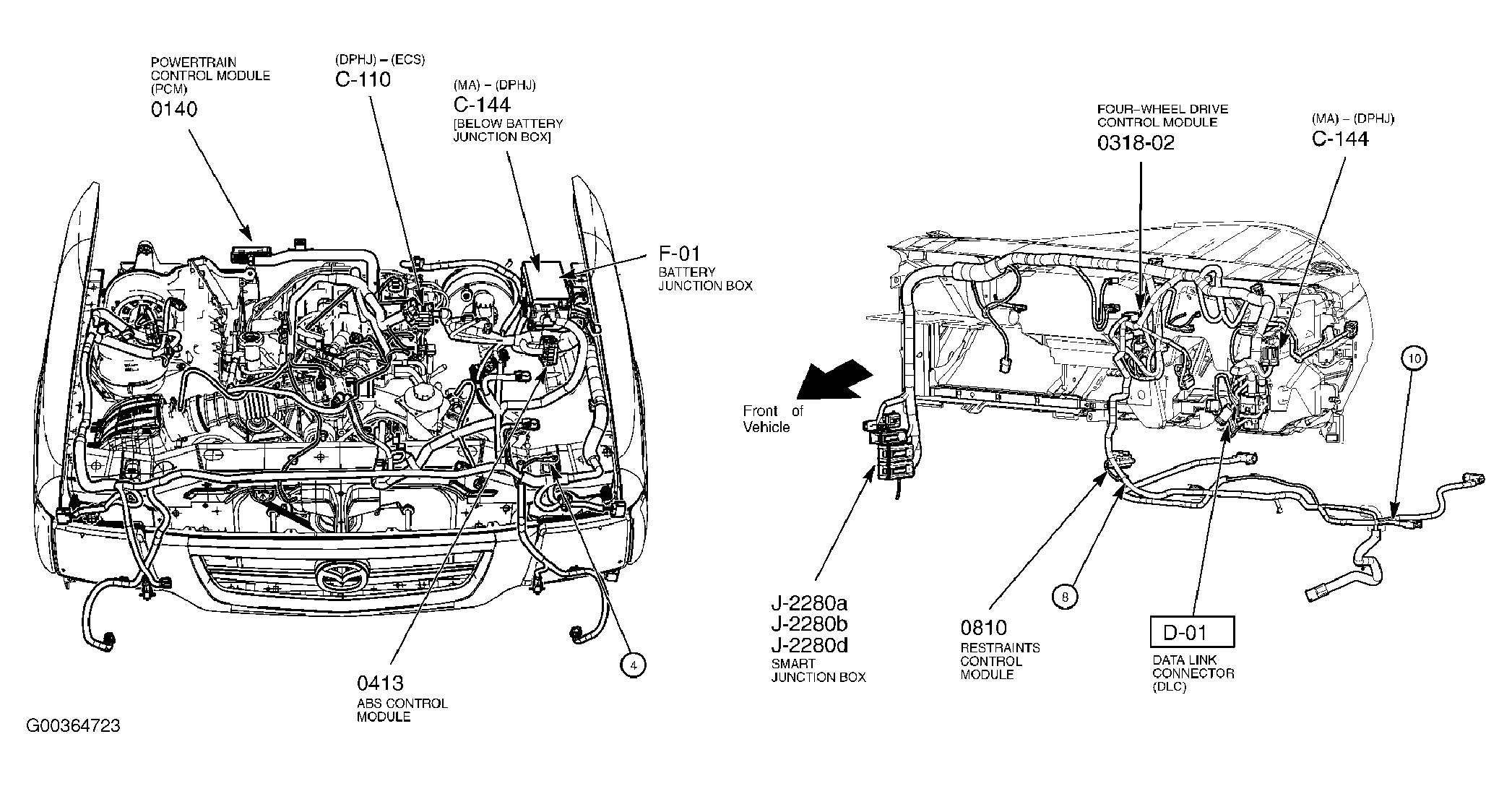

| ABS Control Module | On left front inner fender panel. See Figure. |

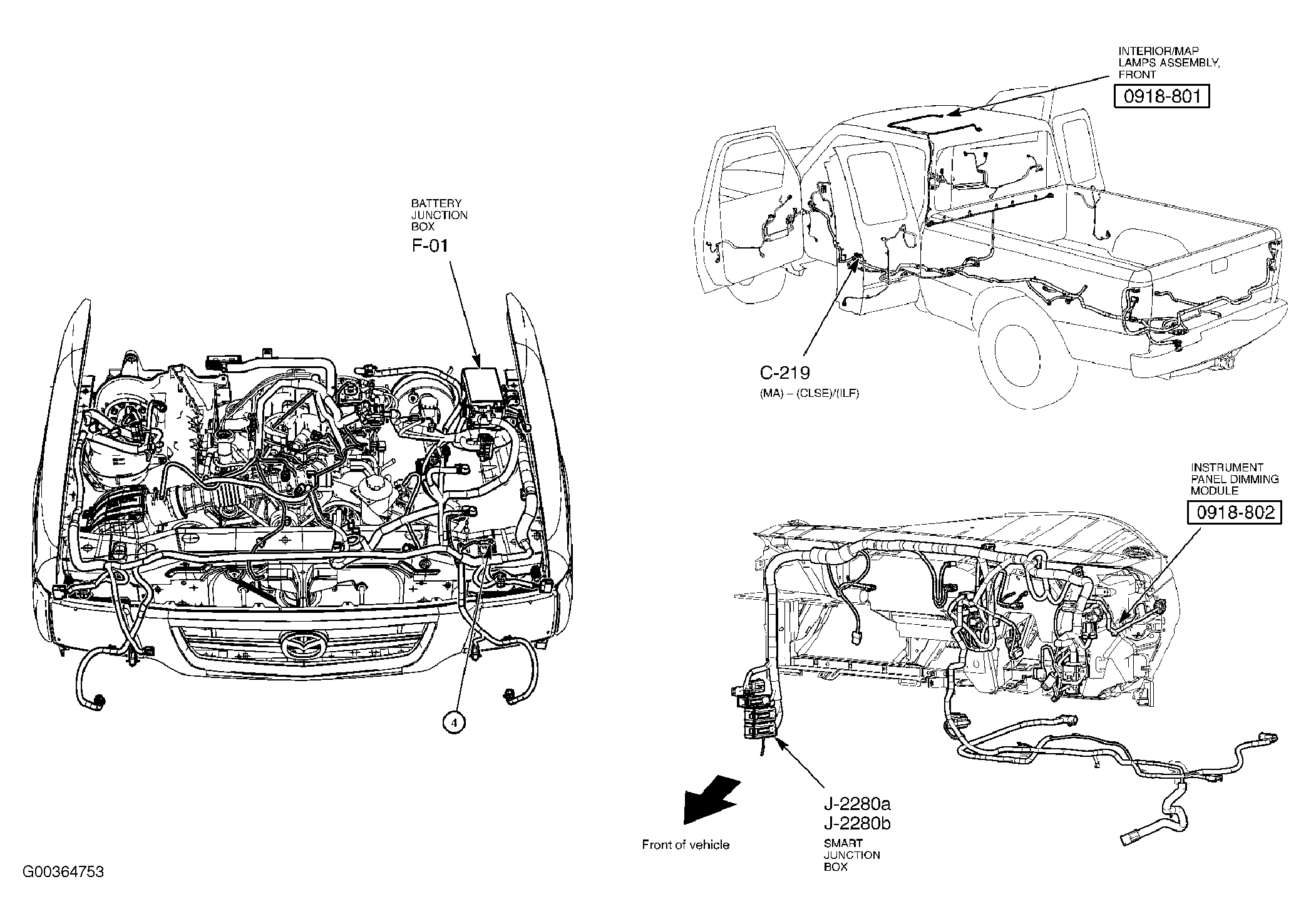

| Instrument Panel Dimming Module | Left side of dash. See Figure. |

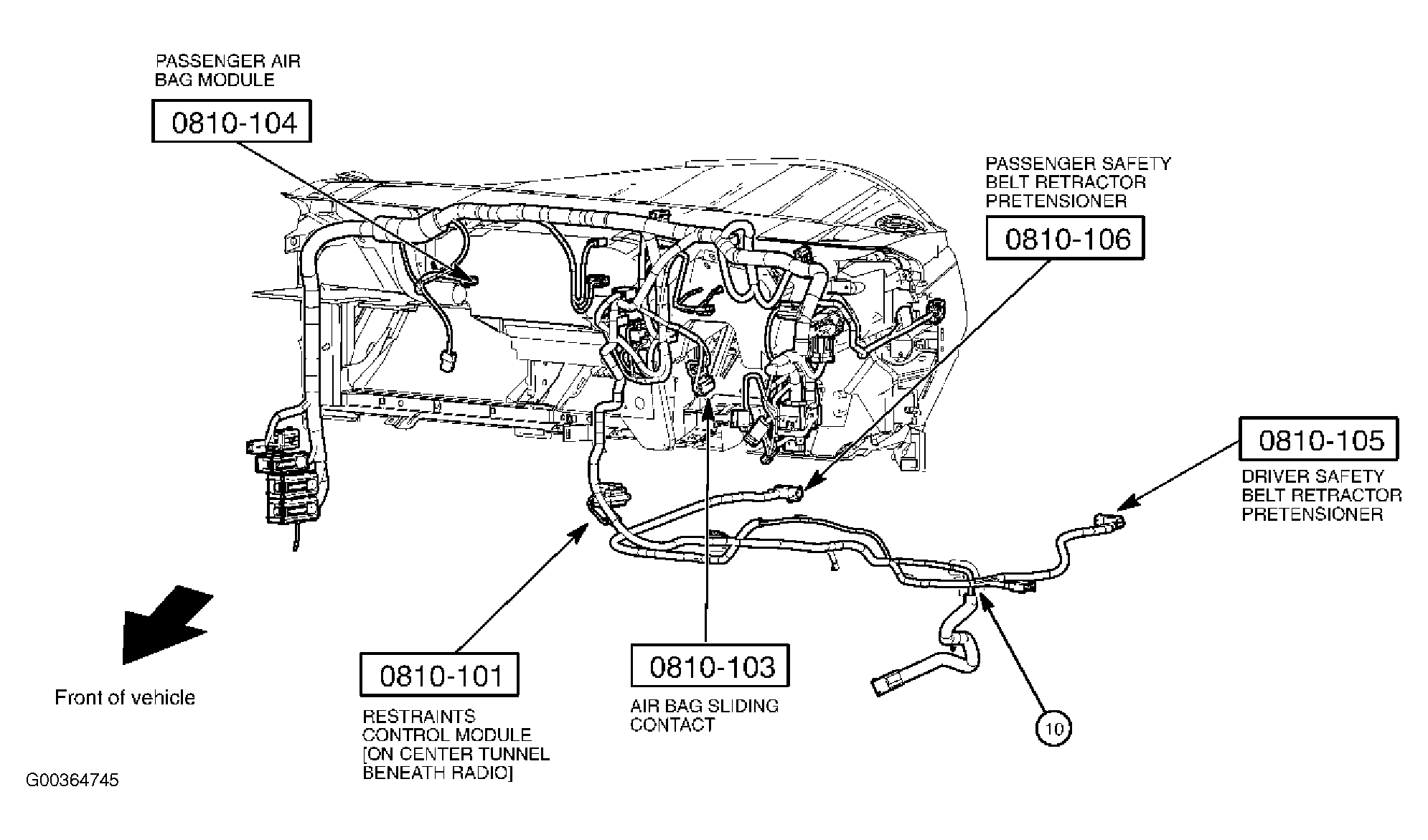

| Passenger Air Bag Module | Behind right side of dash. See Figure. |

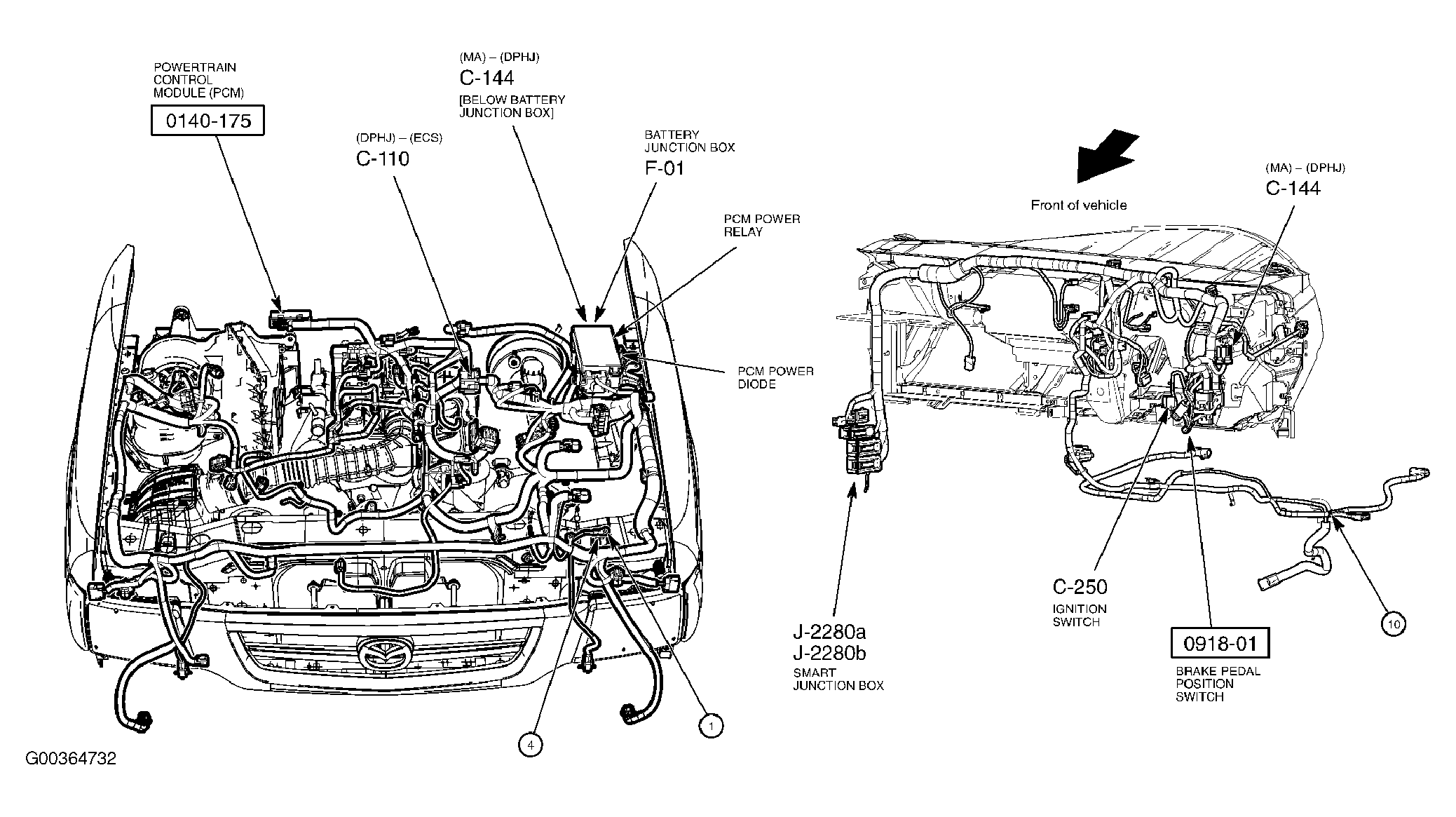

| Powertrain Control Module (PCM) (2.3L) | At right rear of engine compartment, through firewall. See Figure. |
| Powertrain Control Module (PCM) (3.0L) | At right rear of engine compartment, through firewall. See Figure. |
| Powertrain Control Module (PCM) (4.0L) | At right rear of engine compartment, through firewall. See Figure. |
| Restraints Control Module | Below center of dash. See Figure. |
