Camshaft Synchronizer Removal / Installation - 3.0L: Notes

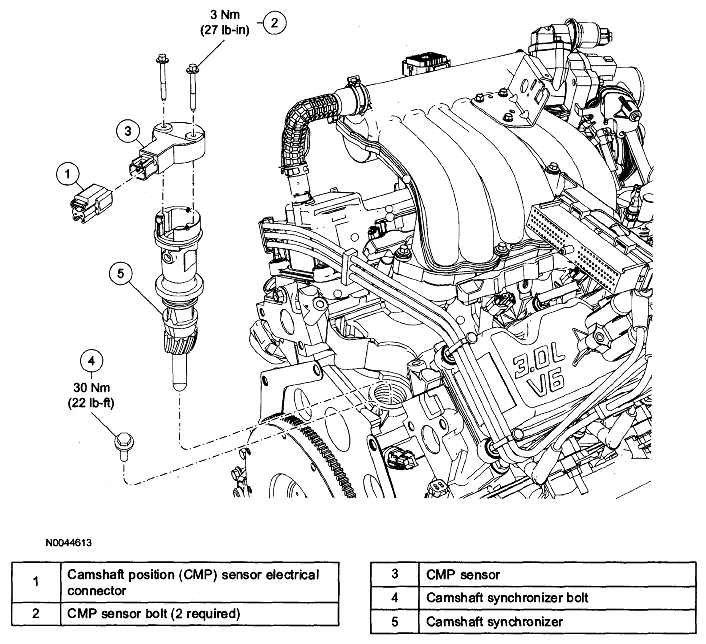

Fig 1: Camshaft Synchronizer Replacement Components With Torque Specifications - 3.0L
G04930160Courtesy of MAZDA MOTORS CORP.
