Crankshaft Position (CKP) Sensor Removal / Installation - 2.3L: Installation

NOTE:

• A new CKP sensor must be installed when ever the old sensor is removed.

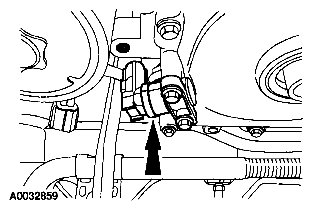

Fig 1: Locating CKP Sensor

Courtesy of MAZDA MOTORS CORP.

1. Install a new CKP, but do not tighten the bolts at this time.

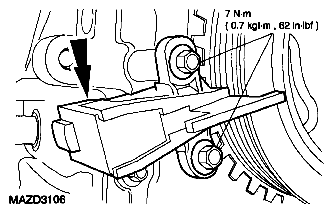

   Fig 2: Locating Crankshaft Position Sensor Alignment Jig And Bolts With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
2. Adjust the CKP with the Crankshaft Position Sensor Alignment Jig and tighten the bolts.

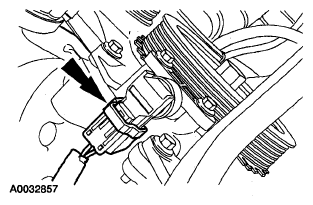

   Fig 3: Locating Crankshaft Position Sensor Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
3. Connect the CKP electrical connector.
   Fig 4: Locating M6 Bolt

   Courtesy of MAZDA MOTORS CORP.
4. Remove the M6 bolt.

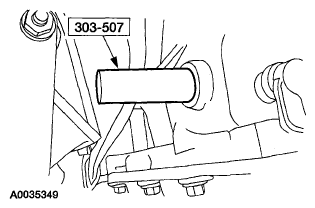

   Fig 5: Identifying Crankshaft Timing Peg SST

   Courtesy of MAZDA MOTORS CORP.
5. Remove the crankshaft timing peg SST.

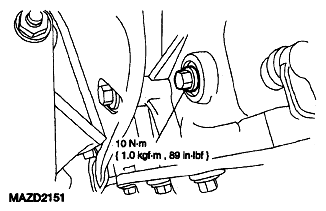

   Fig 6: Plug With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
6. Install the plug for the crankshaft timing peg.

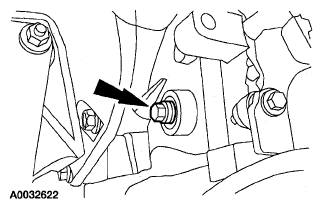

   Fig 7: Locating Plug

   Courtesy of MAZDA MOTORS CORP.
