2.3L Engine

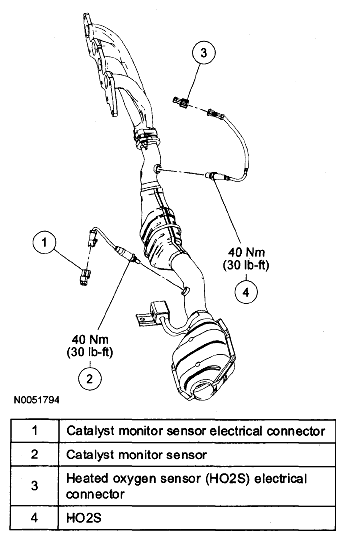

Fig 1: Heated Oxygen Sensor (HO2S) Replacement Components With Torque Specifications - 2.3L Engine
G04930211Courtesy of MAZDA MOTORS CORP.
