3.0L Engine

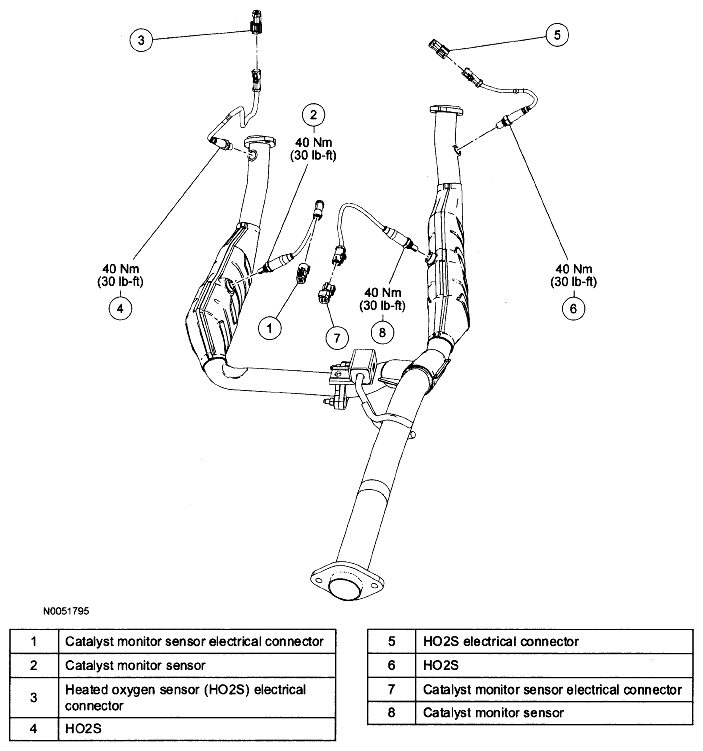

Fig 1: Heated Oxygen Sensor (HO2S) Replacement Components With Torque Specifications - 3.0L Engine
G04930212Courtesy of MAZDA MOTORS CORP.
