Idle Air Control (IAC) Valve Removal / Installation - 2.3L

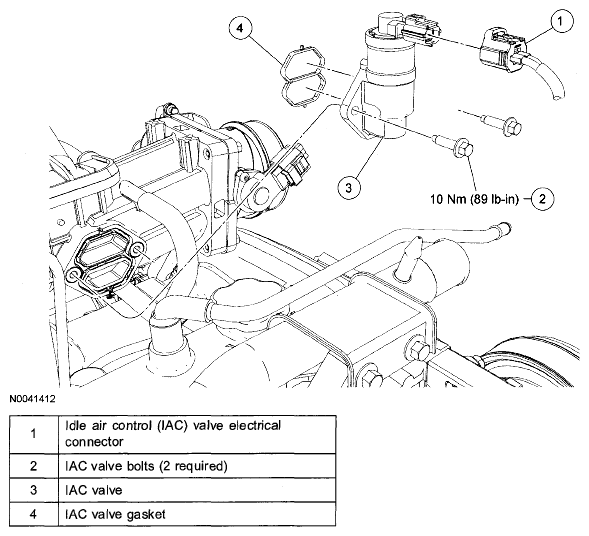

Fig 1: Idle Air Control (IAC) Valve Replacement Components With Torque Specifications - 2.3L

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery cable. See BATTERY DISCONNECT .
2. Disconnect the idle air control (IAC) valve electrical connector.
   Fig 2: Locating Idle Air Control (IAC) Valve Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
3. Remove the bolts and the IAC valve and discard the gasket.
   Fig 3: IAC Valve Bolts With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
   NOTE:

   • Install a new IAC valve gasket.
4. To install, reverse the removal procedure.
