Knock Sensor (KS) Removal / Installation - 3.0L

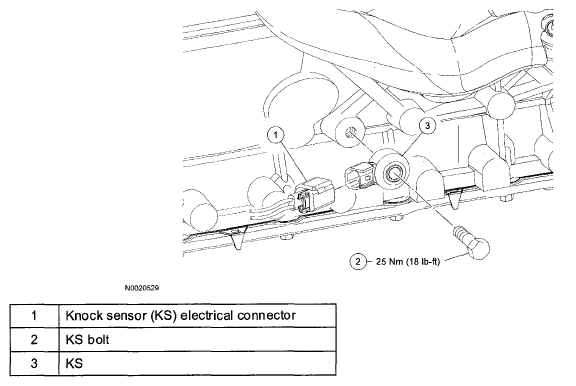

Fig 1: Knock Sensor (KS) Replacement Components With Torque Specifications - 3.0L

Courtesy of MAZDA MOTORS CORP.

1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
2. Disconnect the negative battery cable. See BATTERY DISCONNECT .

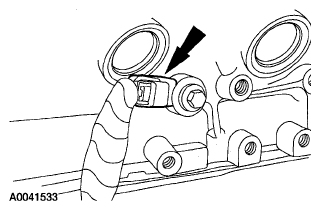

   Fig 2: Locating Knock Sensor Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
3. Disconnect the knock sensor (KS) electrical connector.

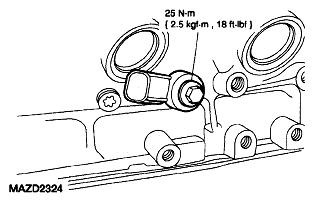

   Fig 3: Knock Sensor Bolt With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
4. Remove the bolt and the KS.
5. To install, reverse the removal procedure.
