Manifold Absolute Pressure (Map) Sensor Removal / Installation - 2.3L

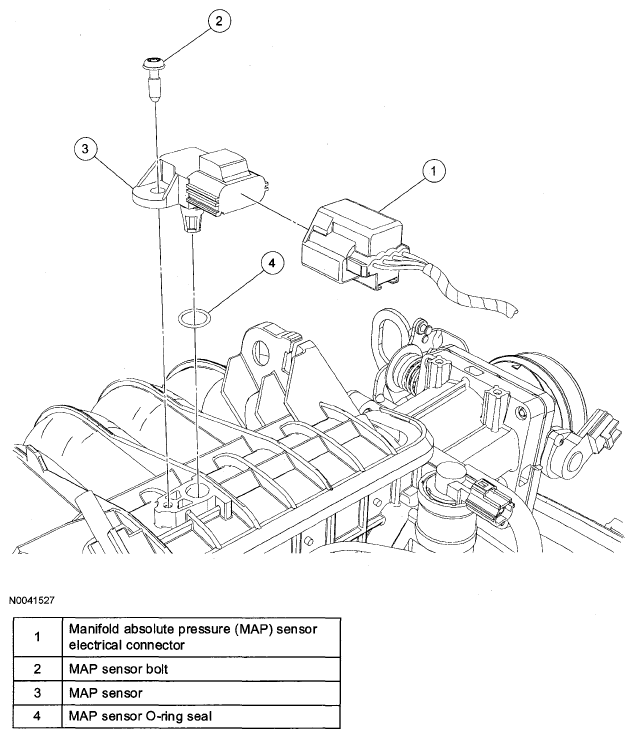

Fig 1: Identifying Manifold Absolute Pressure (MAP) Sensor Components - 2.3L

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery cable. See BATTERY DISCONNECT .

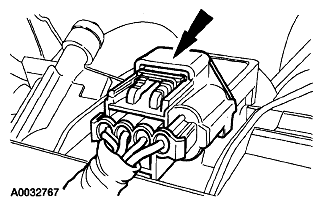

   Fig 2: Locating Manifold Absolute Pressure Sensor Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
2. Disconnect the manifold absolute pressure (MAP) sensor electrical connector.

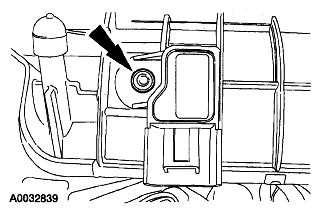

   Fig 3: Locating MAP Sensor Bolt

   Courtesy of MAZDA MOTORS CORP.
3. Remove the bolt and lift the MAP sensor out of the intake manifold.
4. To install, reverse the removal procedure.
