Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Removal / Installation

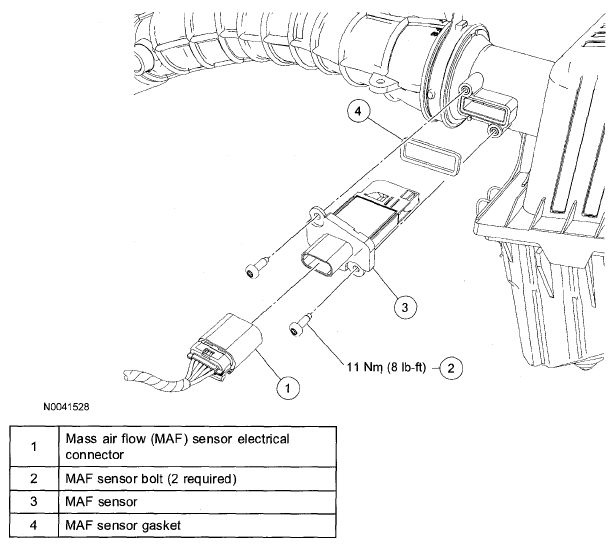

Fig 1: Mass Air Flow/Intake Air Temperature Sensor Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

CAUTION:

• Sensing elements located in the airflow bypass are not to be tampered with.

1. Disconnect negative battery cable. See BATTERY DISCONNECT .
2. Disconnect the mass air flow (MAF) sensor electrical connector.
   Fig 2: Disconnecting MAF Sensor Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
3. Disconnect the air cleaner outlet tube from the MAF sensor.
   Fig 3: Disconnecting Air Cleaner Outlet Tube From MAF Sensor

   Courtesy of MAZDA MOTORS CORP.
4. Remove the four bolts and the MAF sensor.
   Fig 4: Locating MAF Sensor Bolt

   Courtesy of MAZDA MOTORS CORP.
   CAUTION:

   • Do not tamper with the MAF sensing elements located in the airflow bypass. Tampering may result in failure.
   NOTE:

   • The MAF sensor module and body are calibrated and installed as a unit.
5. To install, reverse the removal procedure.

   Tightening torque

   4-5 N.m {41-51 kgf.cm, 38-44 in.lbf}
