Throttle Position (TP) Sensor Removal / Installation - 2.3L

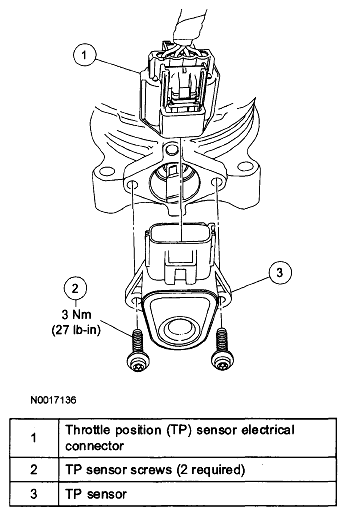

Fig 1: Throttle Position (TP) Sensor Replacement Components With Torque Specifications - 2.3L

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery cable. See BATTERY DISCONNECT .
   Fig 2: Control Splash Shield Bolt With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
2. Remove the accelerator control splash shield.
3. Disconnect the throttle position (TP) sensor electrical connector.
   Fig 3: Locating Throttle Position (TP) Sensor Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
4. Disconnect the throttle position (TP) sensor electrical connector.

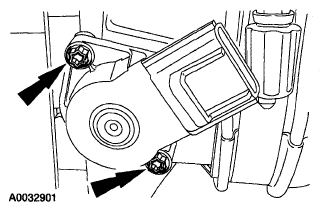

   Fig 4: Locating TP Sensor Bolts

   Courtesy of MAZDA MOTORS CORP.
5. Remove the bolts and the TP sensor.
6. To install, reverse the removal procedure.
