Throttle Position (TP) Sensor Removal / Installation - 4.0L

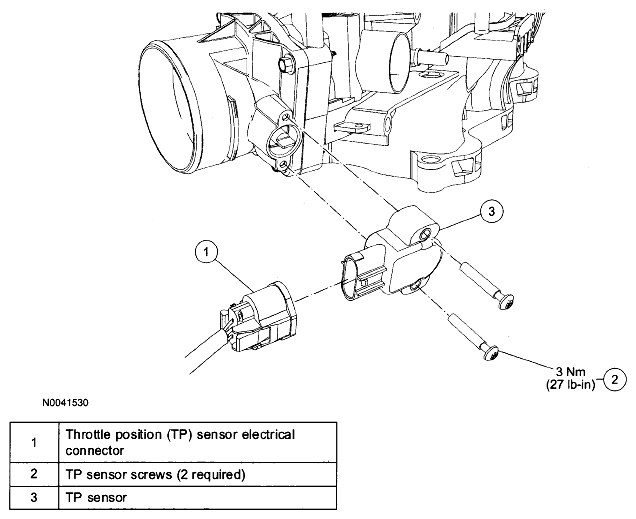

Fig 1: Throttle Position (TP) Sensor Replacement Components With Torque Specifications - 4.0L

Courtesy of MAZDA MOTORS CORP.

1. Remove the accelerator control splash shield.

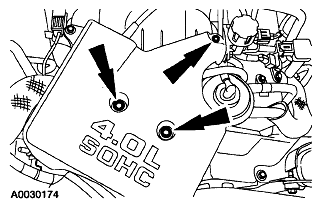

   Fig 2: Locating Accelerator Control Splash Shield Screws

   Courtesy of MAZDA MOTORS CORP.
2. Remove the throttle position (TP) sensor.

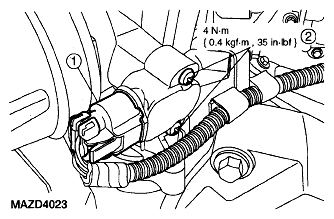

   Fig 3: TP Sensor Bolt With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
   1. Disconnect the electrical connector.
   2. Remove the bolts and the TP sensor.
3. To install, reverse the removal procedure.
