Inertia Fuel Shutoff Switch Removal / Installation: Notes

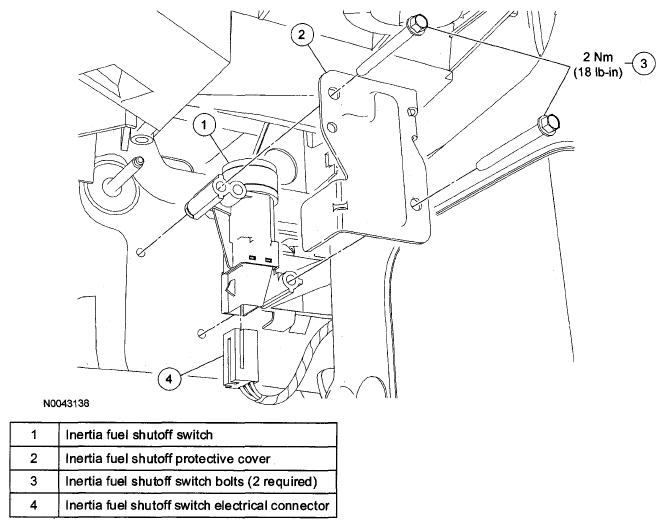

Fig 1: Inertia Fuel Shutoff Switch Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the battery. See BATTERY DISCONNECT .
2. Access the fuel pump shutoff switch on the right side interior trim panel and disconnect the electrical connector.
3. Remove the bolts and remove the fuel pump switch.

   Tightening torque:

   2 Nm {0.2 kgf-m, 18 in-lbf}

4. To install, reverse the removal procedure
