R-Clip Fittings: Connect

Inspect the fitting and the tube for damage. Remove any dirt or obstructions.
Insert the R-clip into the fitting.

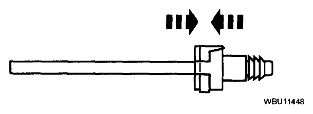

Fig 1: Inserting R-Clip Into Fitting
Courtesy of MAZDA MOTORS CORP.
Align the tube and the fitting.

Fig 2: Aligning Tube And Fitting
Courtesy of MAZDA MOTORS CORP.
Insert the tube in the fitting and push together until a click is heard.

Fig 3: Inserting Tube In Fitting
Courtesy of MAZDA MOTORS CORP.
Pull on the connection to make sure it is fully engaged.

Fig 4: Pulling On Connection

Courtesy of MAZDA MOTORS CORP.
