Engine Ignition Specifications - 2.3L
ENGINE IGNITION SPECIFICATIONS -2.3L
| Item | Specification |
|---|---|
| Ignition timing (not adjustable) | 10 degrees BTDC |

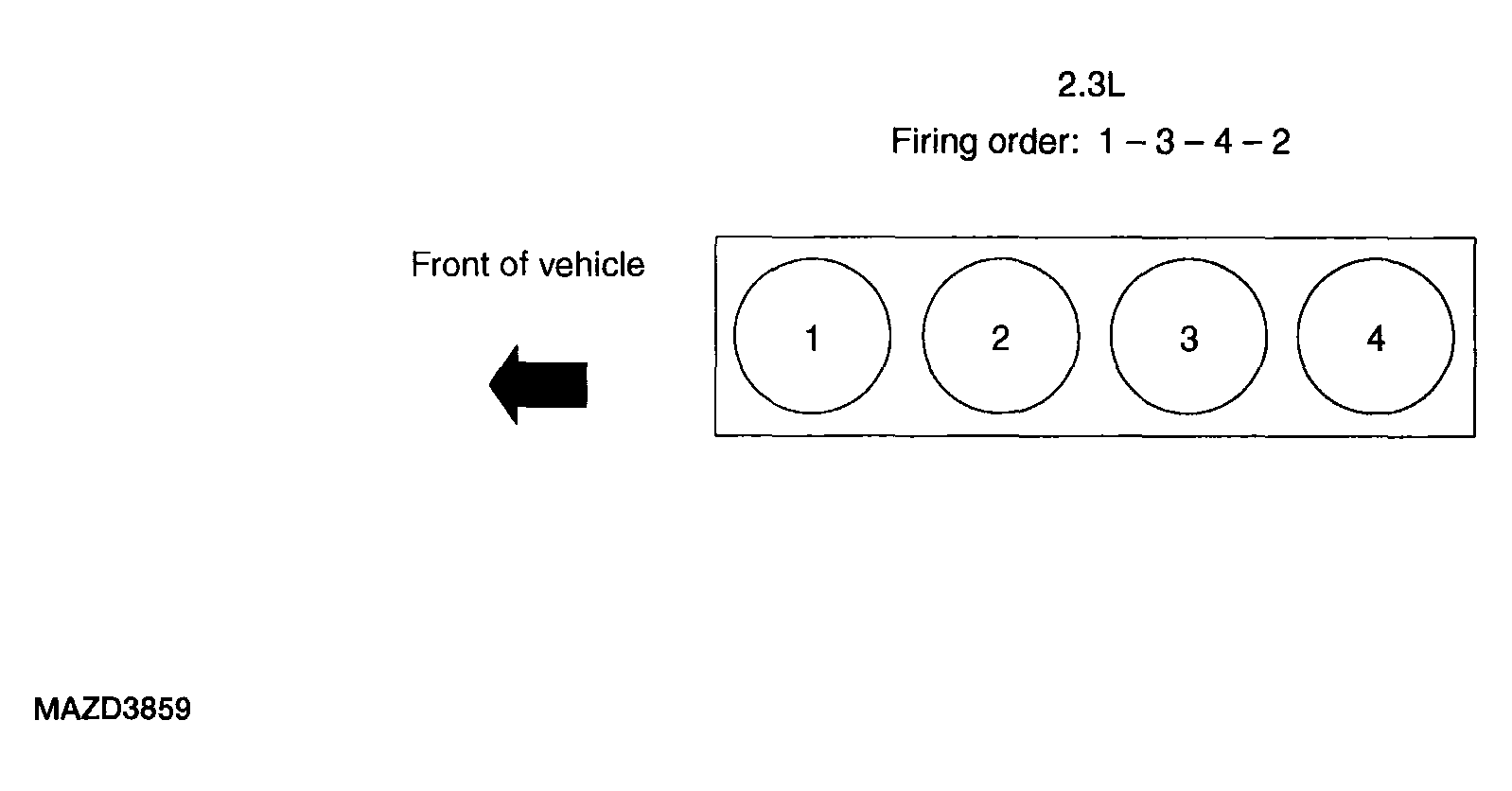

| Firing order | 1-3-4-2 |
| Original spark plug | AGSF32FEC |
| Replacement spark plug | AGSF32FEC |
| Spark plug gap mm (in) | 1.05-1.15 mm (0.041-0.045 in) |
Ignition Torque Specifications
IGNITION TORQUE SPECIFICATIONS
| Description | N.m | kgf.m | ff.lbf |
|---|---|---|---|
| Spark plugs | 12 | 1.2 | 9 |
| Coil mounting bolts | 6 | 0.61 | 4 |
