Engine Ignition Specifications - 3.0L

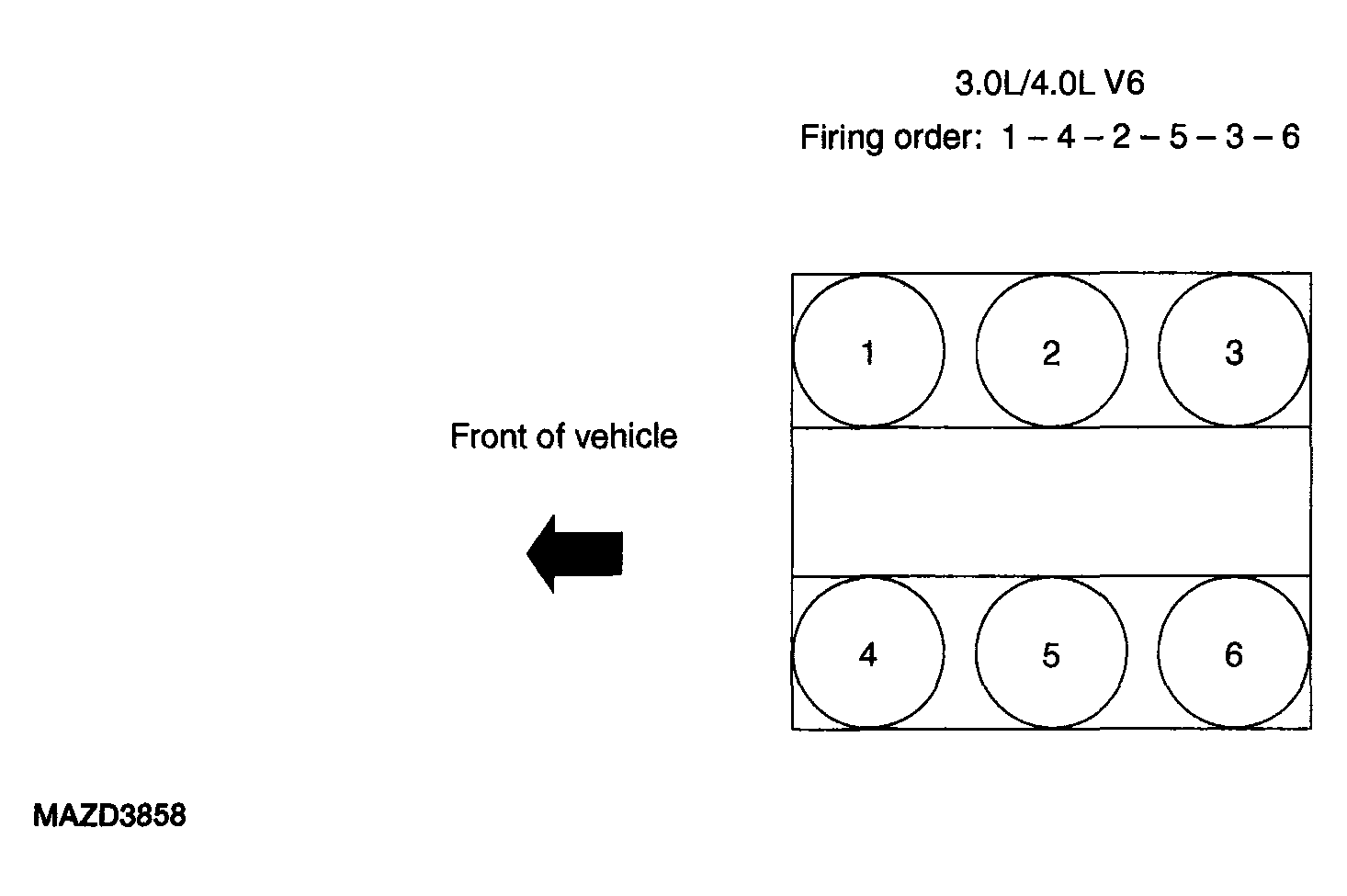

Fig 1: Identifying 3.0L Firing Order
G04308489Courtesy of MAZDA MOTORS CORP.
ENGINE IGNITION SPECIFICATIONS -3.0L

Item Specification
Base Timing 10 degrees BTDC
Firing Order 1-4-2-5-3-6
Left Side Original Spark Plug AWSF32P
Right Side Original Spark Plug AWSF32PG
Replacement Spark Plug AWSF32PP (both sides)
Spark Plug Gap 1.07-1.17 mm (0.042-0.046 in)
