Engine Ignition Specifications - 4.0L

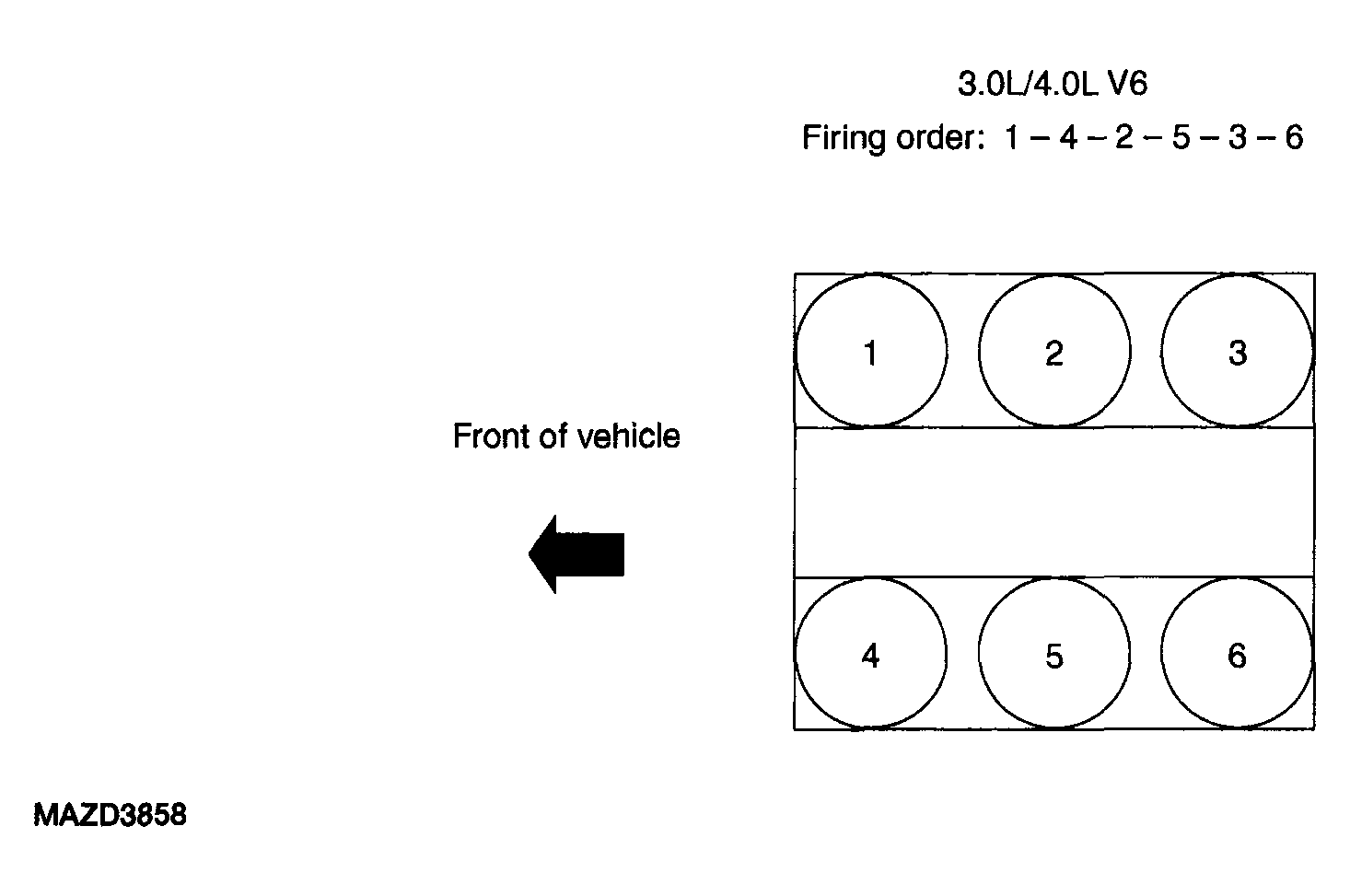

Fig 1: Identifying 4.0L Firing Order
G04308490Courtesy of MAZDA MOTORS CORP.
ENGINE IGNITION SPECIFICATIONS -4.0L

Item Specification
Timing Not Adjustable
Firing Order 1-4-2-5-3-6
Right Side Original Spark Plug AGSF-22PG
Left Side Original Spark Plug AGSF-22P
Replacement Spark Plug (Either Side) ZZN2-18-110 or AGSF-22PP
Spark Plug Gap 1.57-1.73mm (0.061-0.068 in)
