Engine Ignition Components - 2.3L

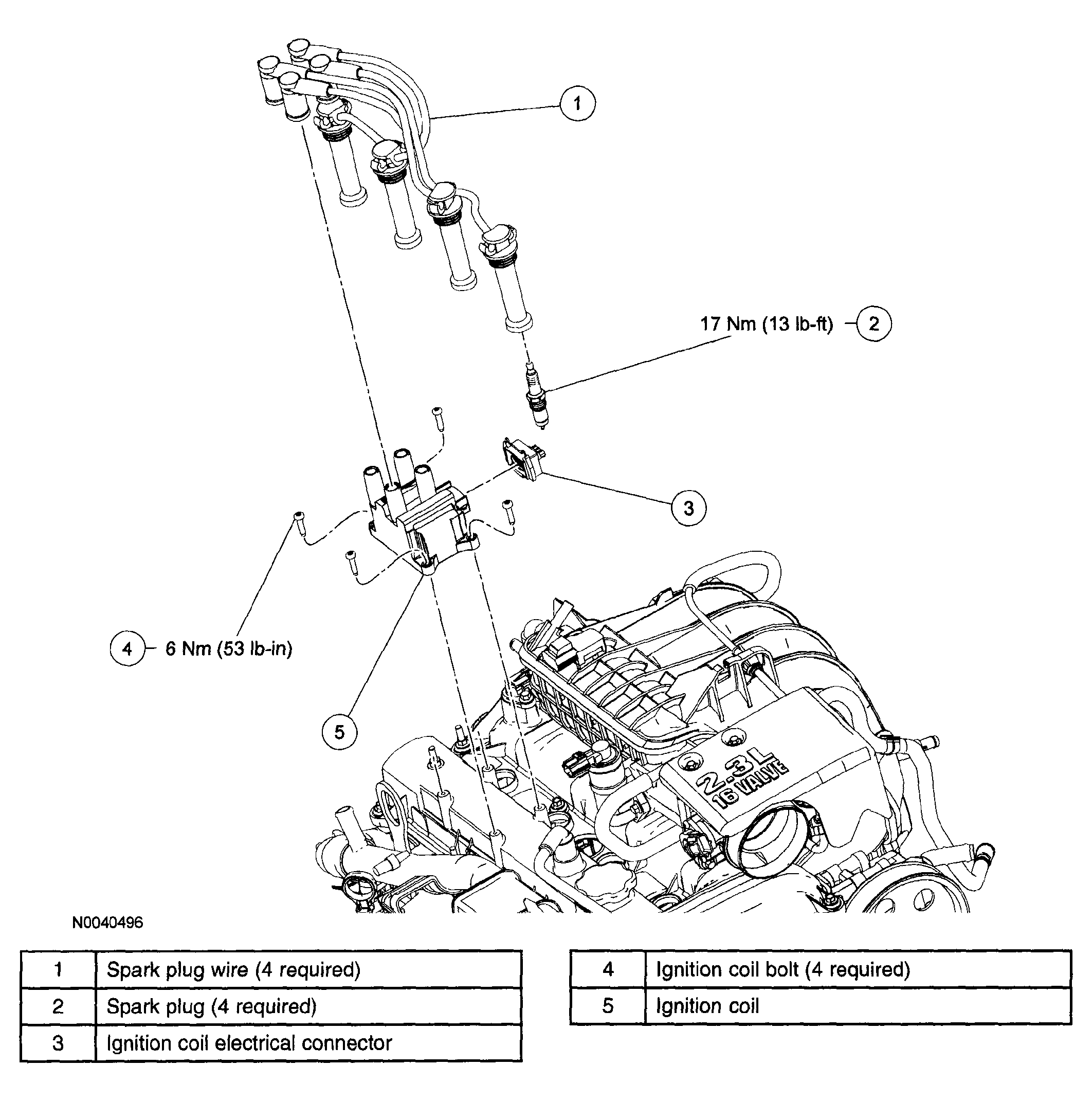

Fig 1: Engine Ignition Replacement Components With Torque Specifications (2.3L)
G04308291Courtesy of MAZDA MOTORS CORP.
