Engine Ignition Components - 3.0L

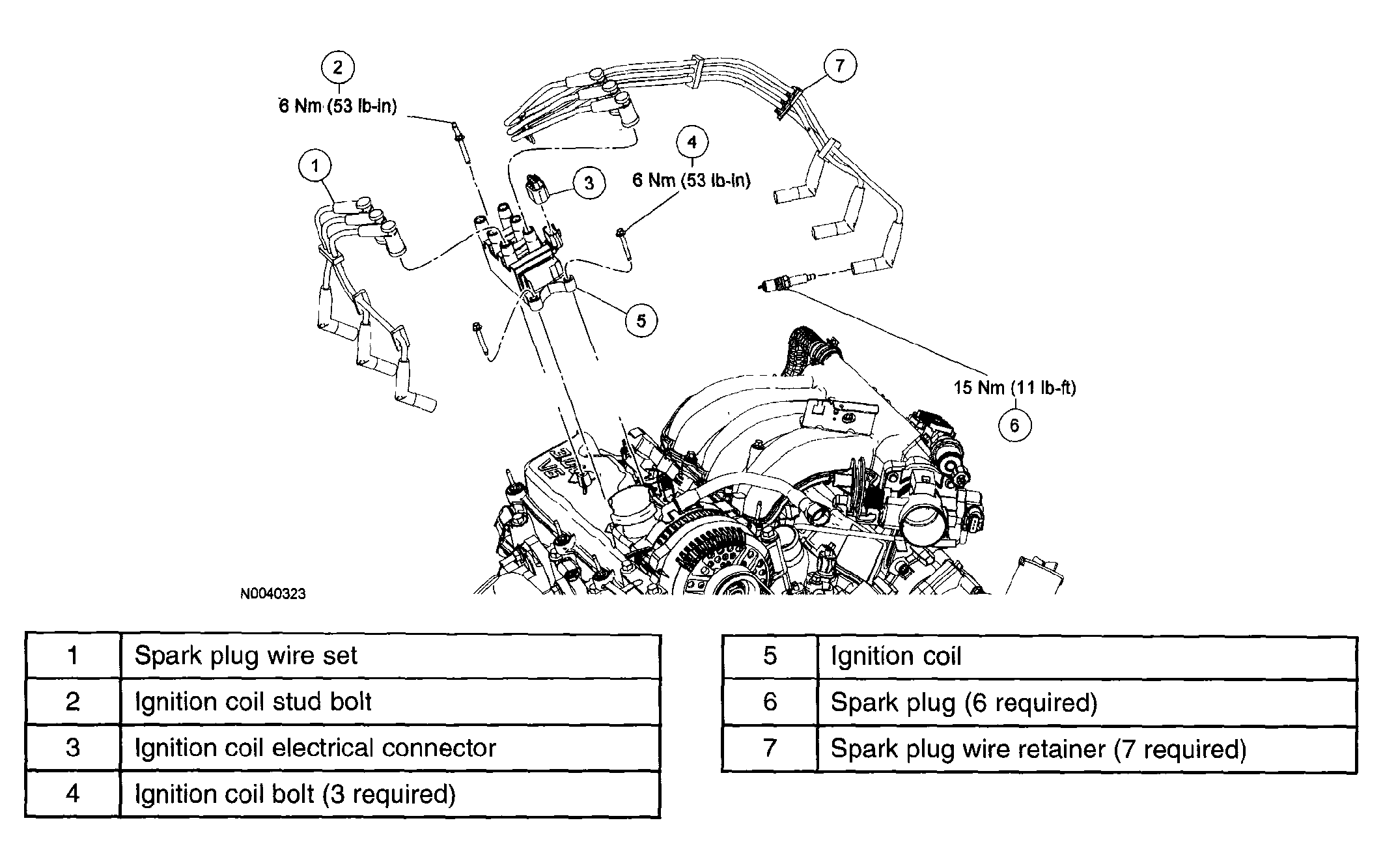

Fig 1: Engine Ignition Replacement Components With Torque Specifications (3.0L)
G04308295Courtesy of MAZDA MOTORS CORP.
