Front Door Glass, Frames And Mechanisms - Component View

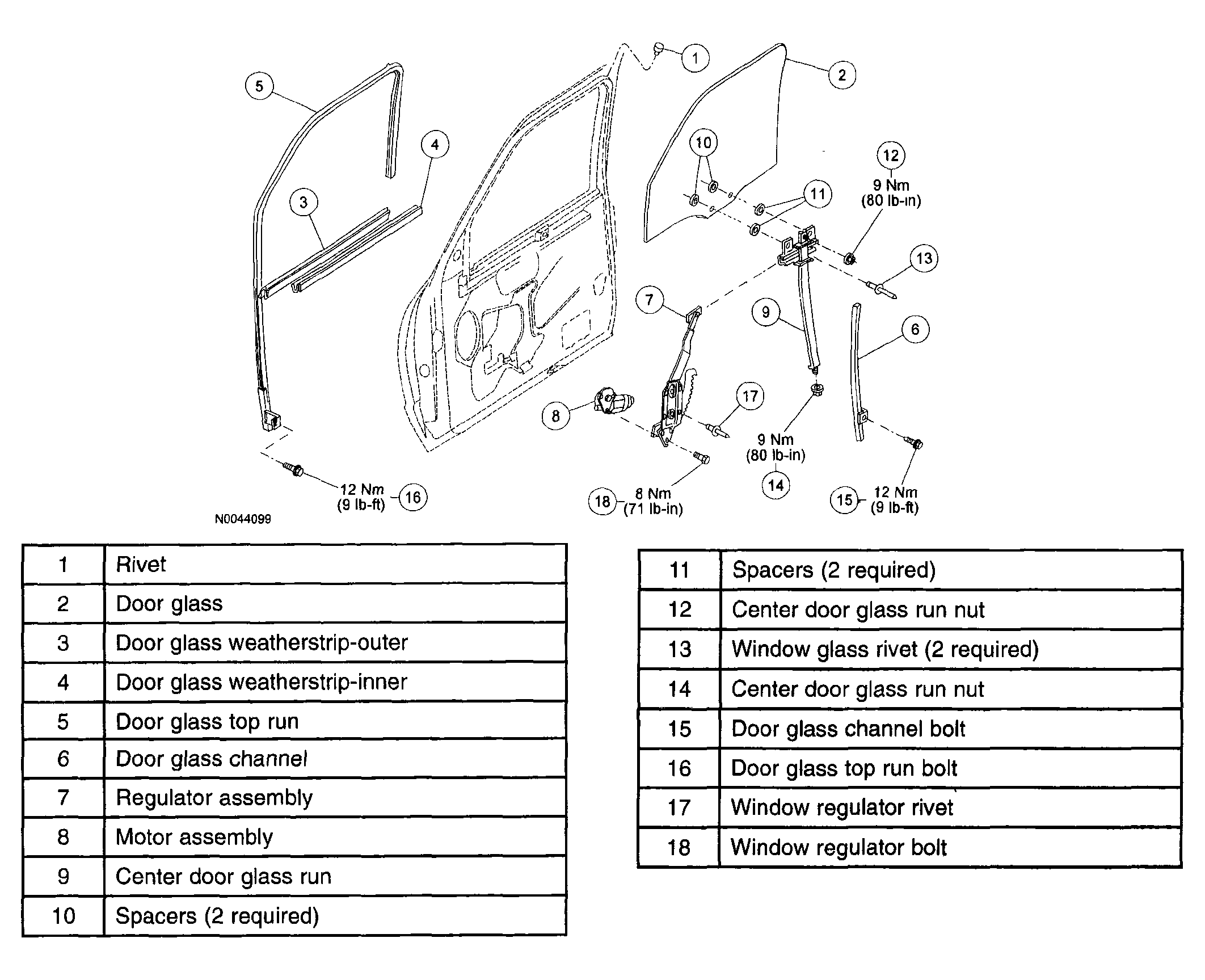

Fig 1: Exploded View Of Front Door Glass, Frame And Mechanism Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
