Passenger Power Window Switch Inspection

  1. Remove the passenger power window switch.
  2. Inspect for continuity between the passenger power window switch terminals using an ohmmeter.

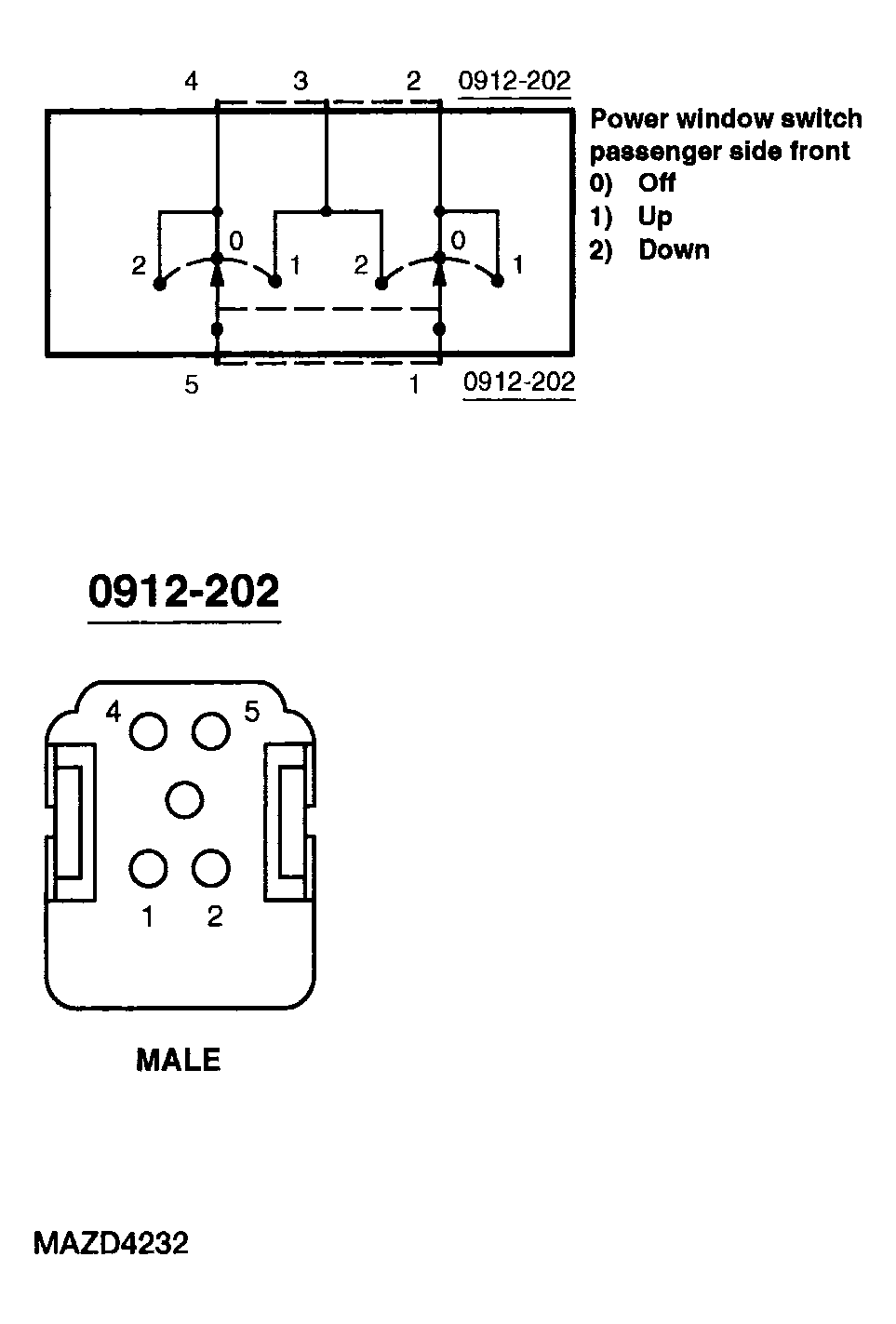

    Fig 1: Inspecting Passenger Power Window Switch
    G04310256Courtesy of MAZDA MOTORS CORP.

    Inspection

    INSPECTION CHART

    Circuit to test Connect self-powered test light or ohmmeter to terminals Move switch to these positions A good switch will indicate
    Window adjust switch 3 and 5 2 and 1 Up Closed circuit
    3 and 1 4 and 5 Down Closed circuit
    4 and 5 2 and 1 Off Closed circuit
  3. If not as specified, replace the passenger power window switch.
