Generator Removal / Installation - 4.0L: Notes

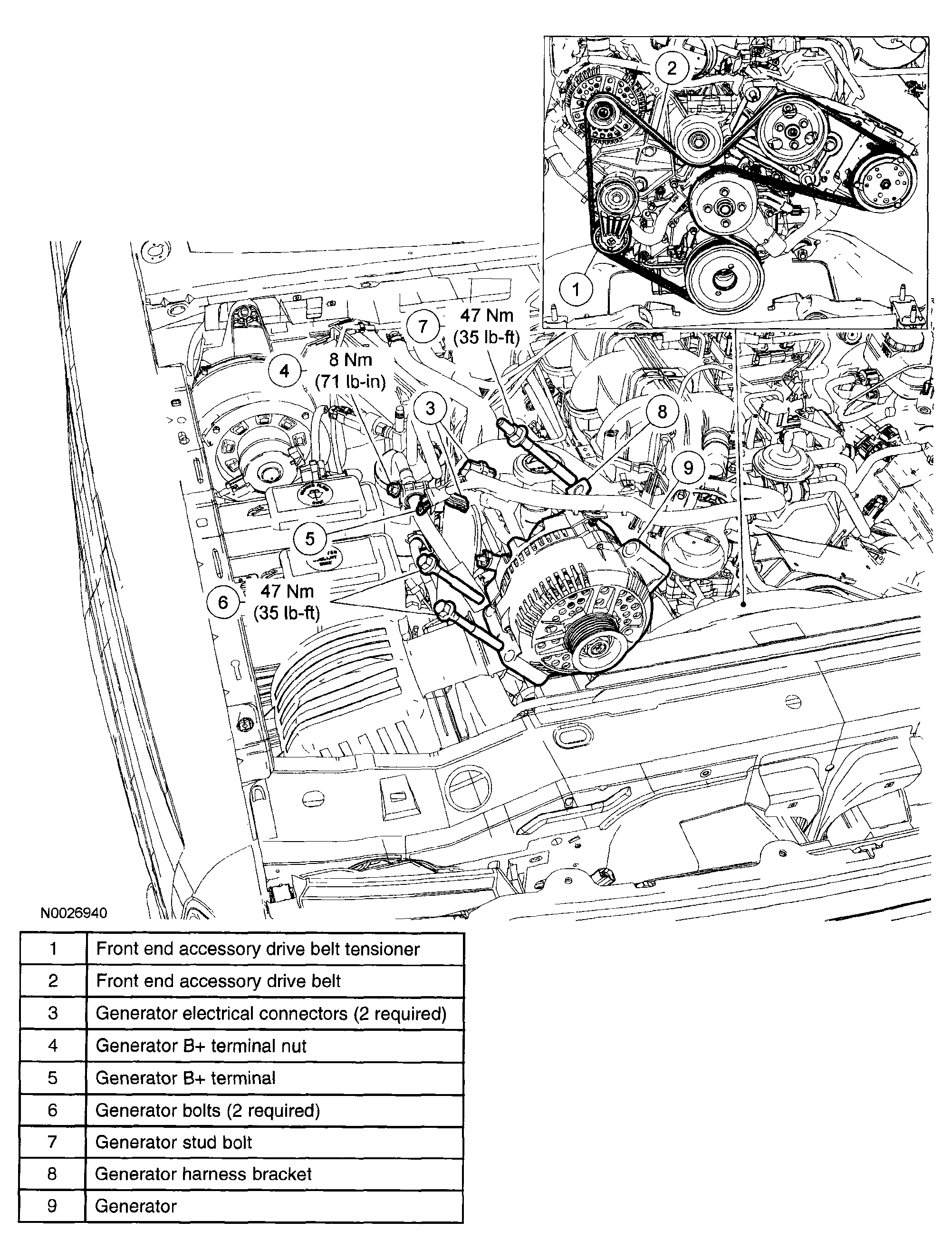

Fig 1: Generator - 4.0L With Torque Specifications
G04308285Courtesy of MAZDA MOTORS CORP.
