Idle Air Control (IAC) Valve Removal / Installation - 4.0L

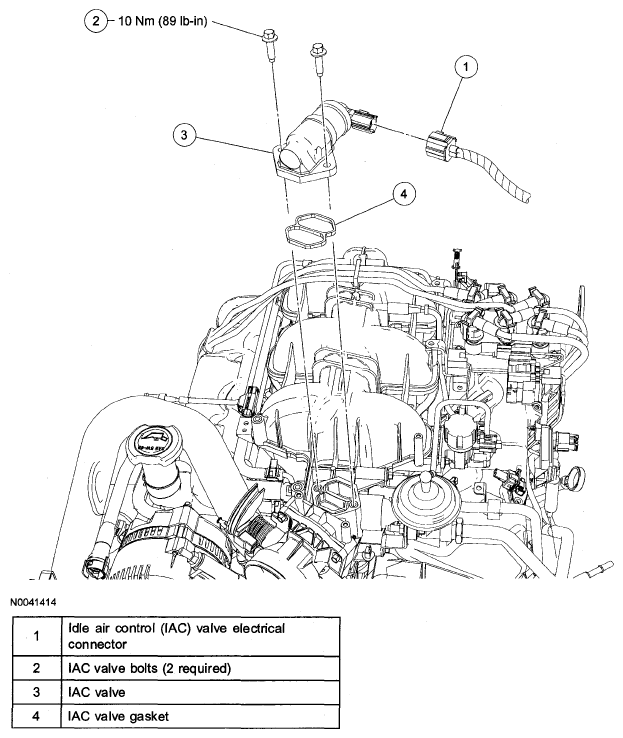

Fig 1: Idle Air Control (IAC) Valve Replacement Components With Torque Specifications - 4.0L

Courtesy of MAZDA MOTORS CORP.

1. Remove the accelerator control splash shield.
   Fig 2: Locating Accelerator Control Splash Shield Screws

   Courtesy of MAZDA MOTORS CORP.
2. Disconnect the electrical connector. Remove the bolts and the idle air control (IAC) valve.
   Fig 3: Locating Electrical Connector With Idle Air Control (IAC) Valve Bolts With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
   NOTE:

   • Install a new IAC gasket.
3. To install, reverse the removal procedure.
