Safety Belt - Front Center: Notes

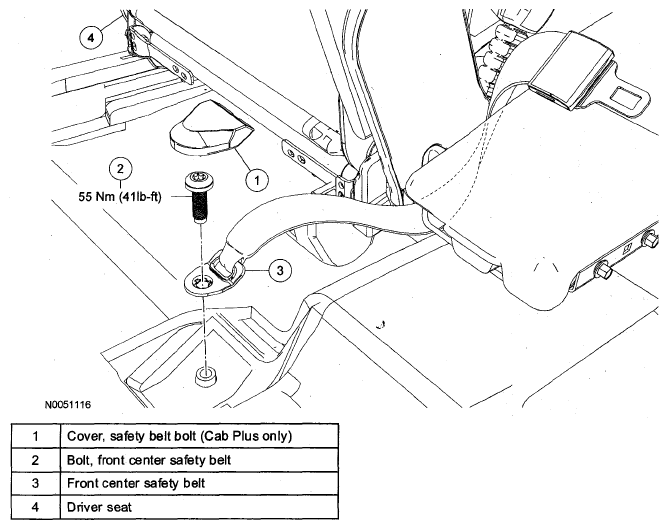

Fig 1: Safety Belt Replacement Components - Front Center With Torque Specifications

G04930901
