Inspection and Verification

Inspection and Verification

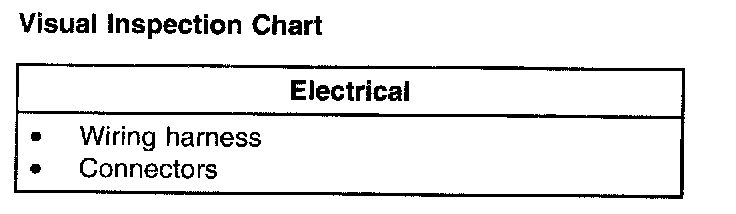

Visually inspect for obvious signs of electrical damage See the chart

Configurable Modules
The vehicle contains the following modules that are configurable
- instrument cluster
- powertrain control module (PCM)
- smart junction box (SJB)
