Connector Pin Locations

Connector Pin Locations

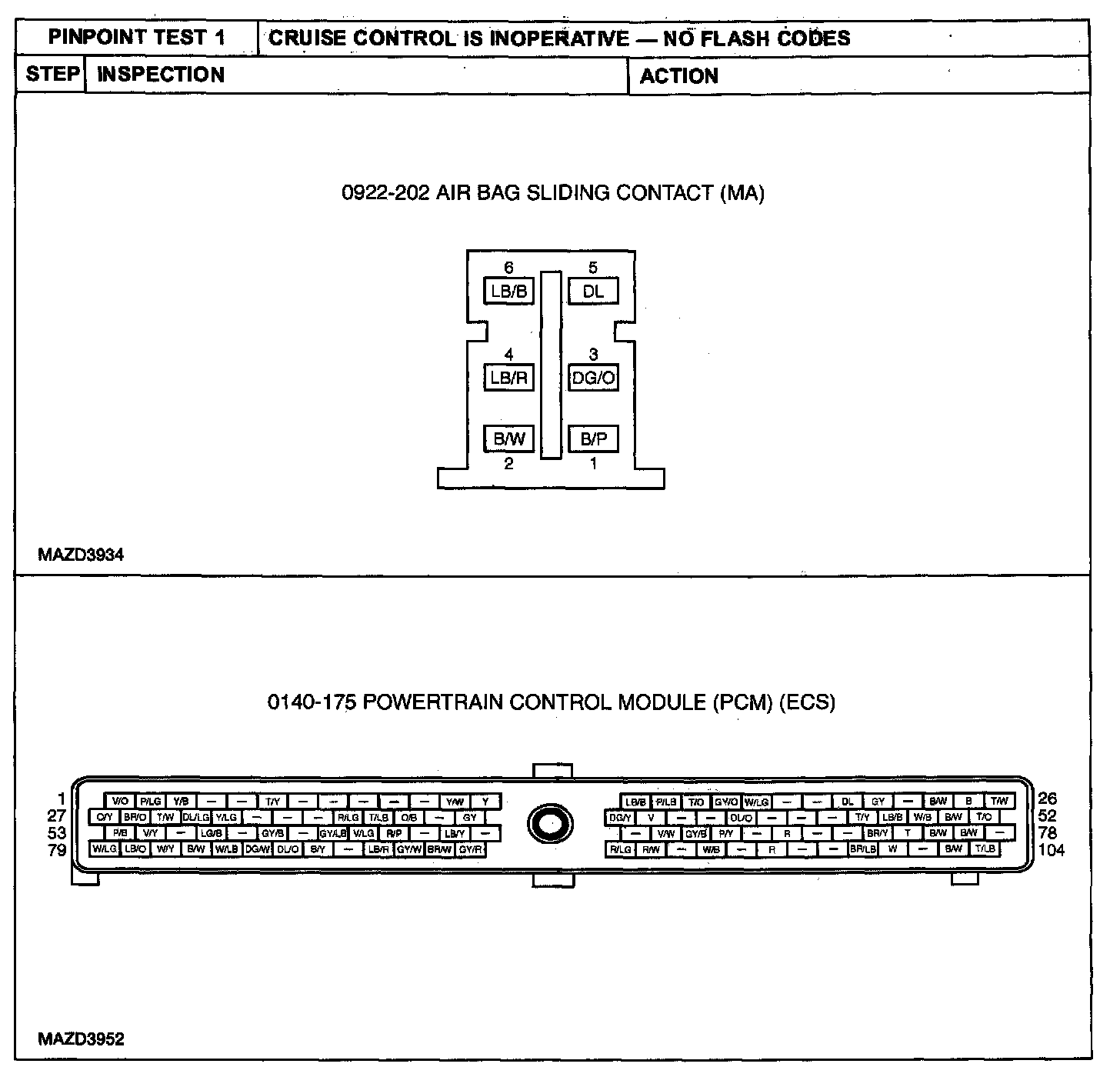

Air Bag Sliding Contact, Powertrain Control Module (PCM)





Pedal Position Switch, Clutch Pedal Position Switch

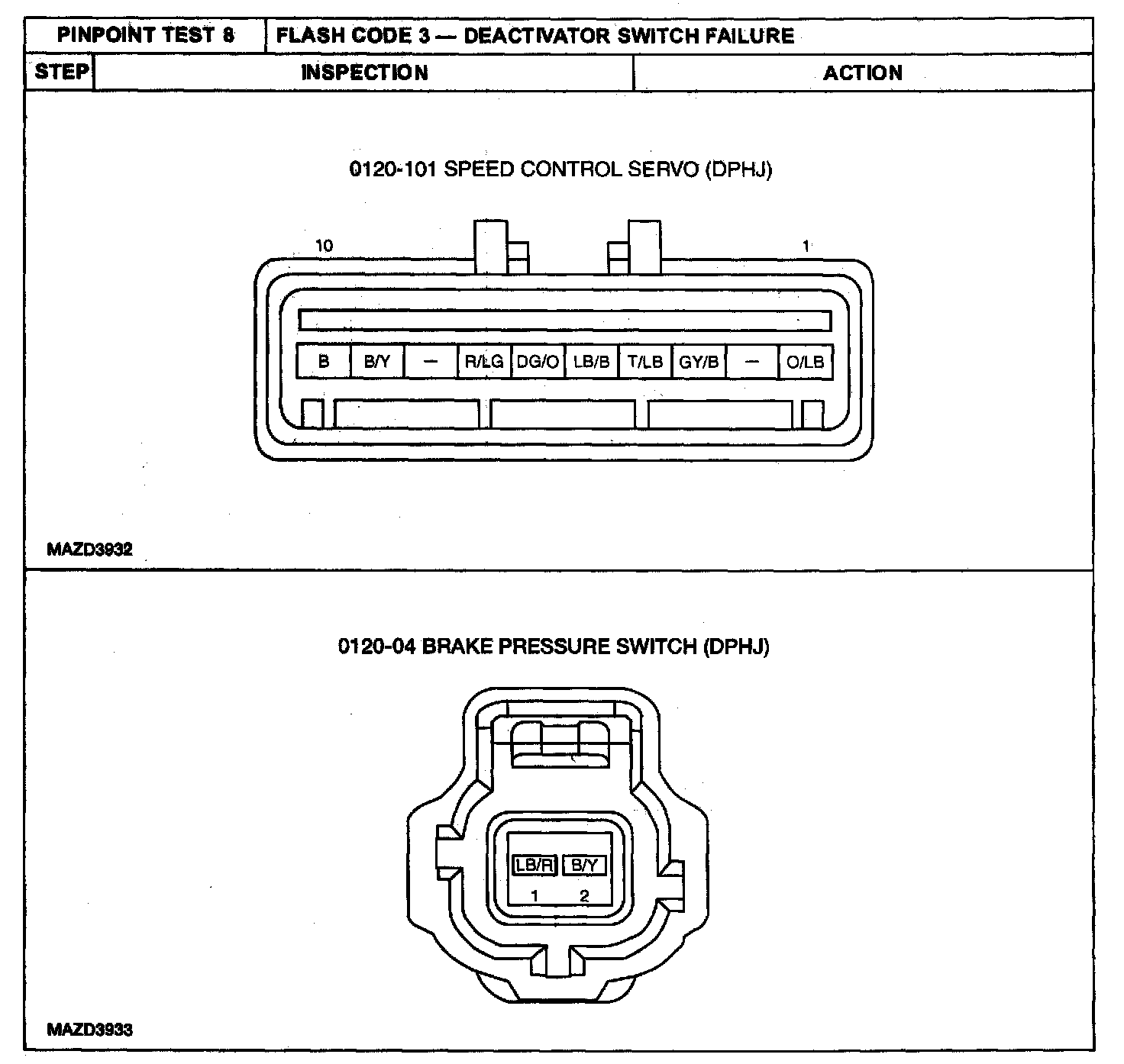

Speed Control Servo, Brake Pressure Switch

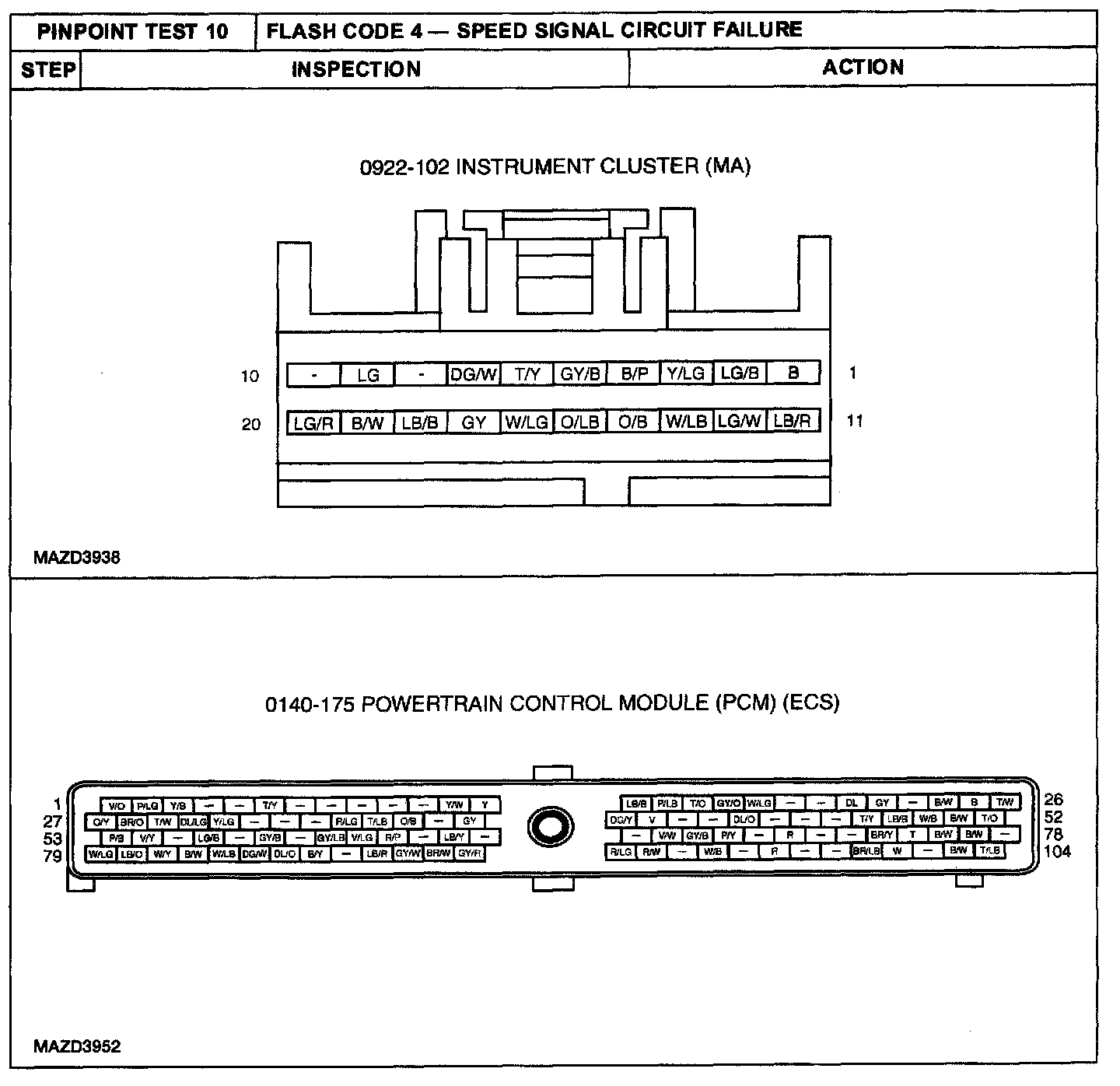

Instrument Cluster, Powertrain Control Module (PCM)
