System Diagram

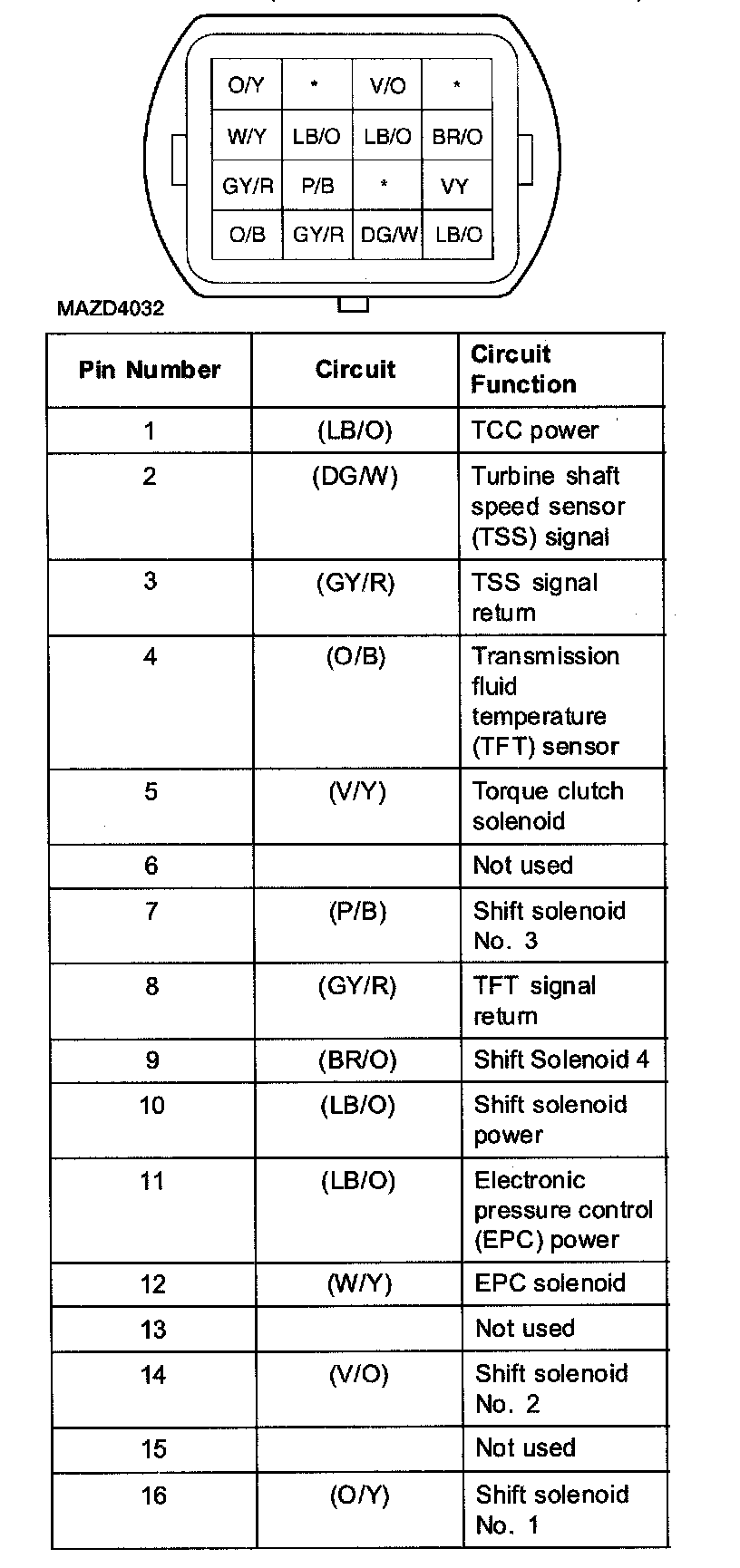

Transmission Vehicle Harness Connector
0140-12/0140-30 5R44E/5R55E TRANSMISSION (VIEW FROM TERMINAL SIDE)
