Knock Sensor: Service and Repair

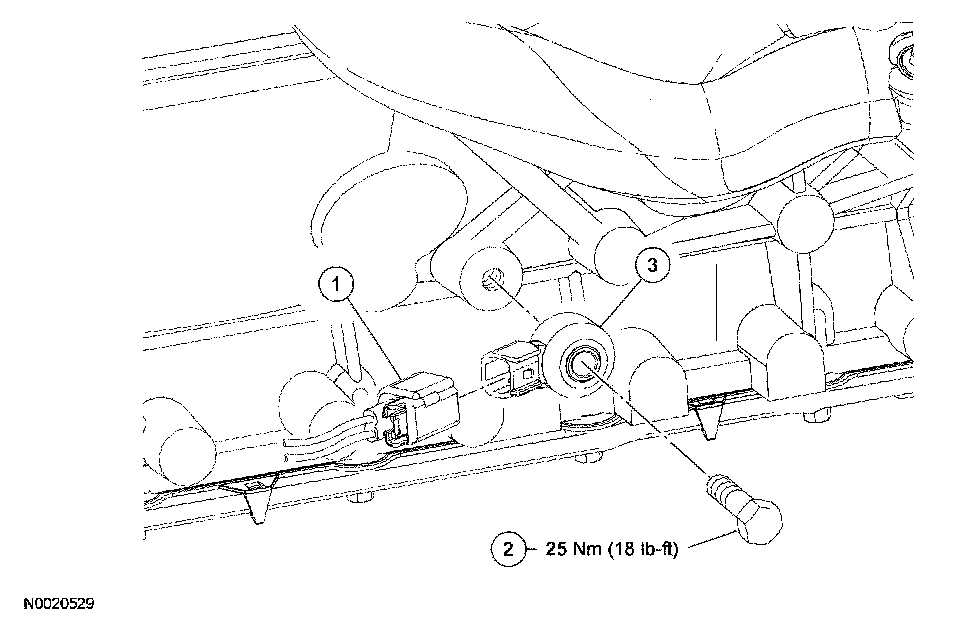

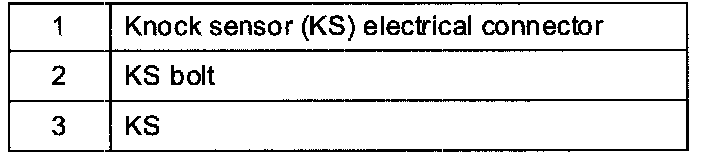

KNOCK SENSOR (KS) REMOVAL / INSTALLATION - 3.0L
1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING.











2. Disconnect the negative battery cable. See BATTERY DISCONNECT.

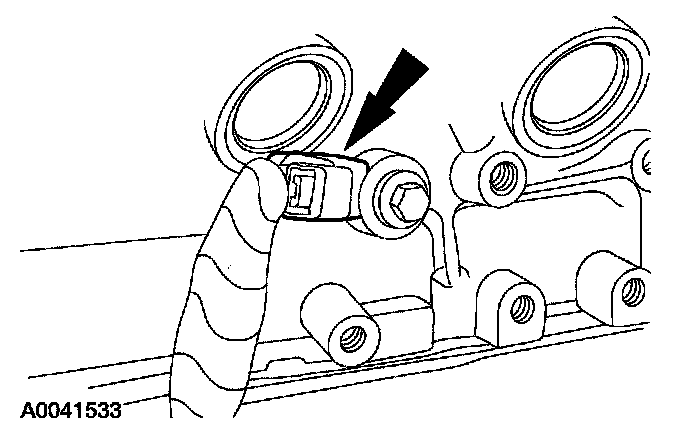

3. Disconnect the knock sensor (KS) electrical connector.

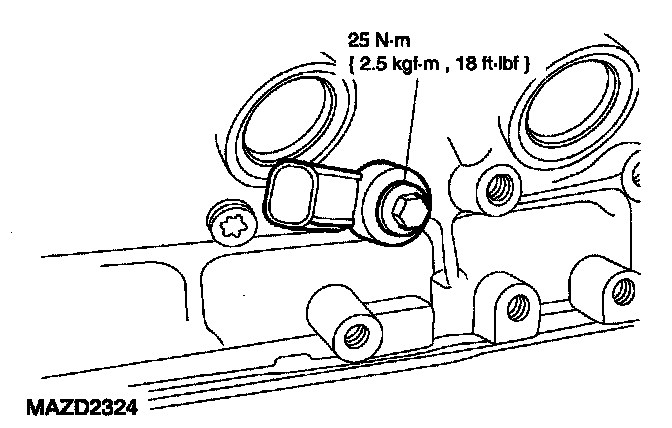

4. Remove the bolt and the KS.
5. To install, reverse the removal procedure.
