PID/Data Monitor Item Table 2

PID/DATA MONITOR ITEM TABLE

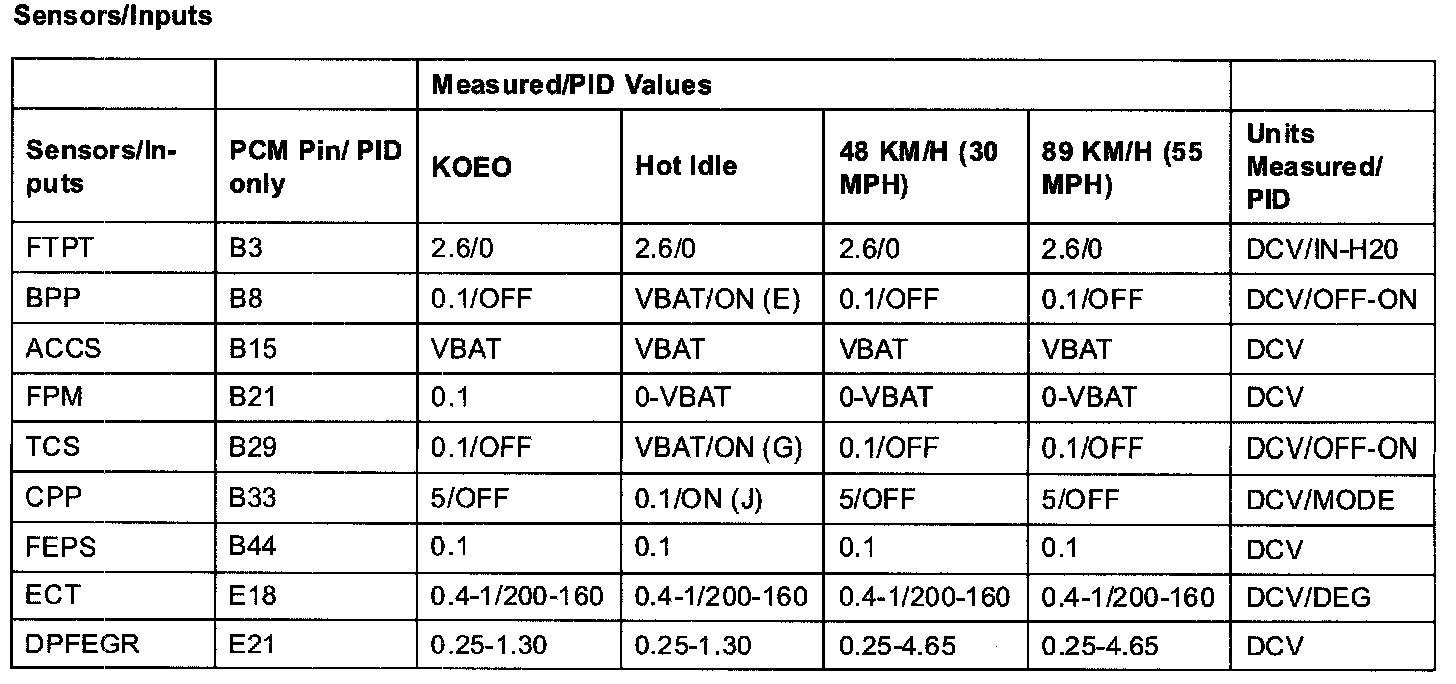

Sensors/Inputs (Part 1):

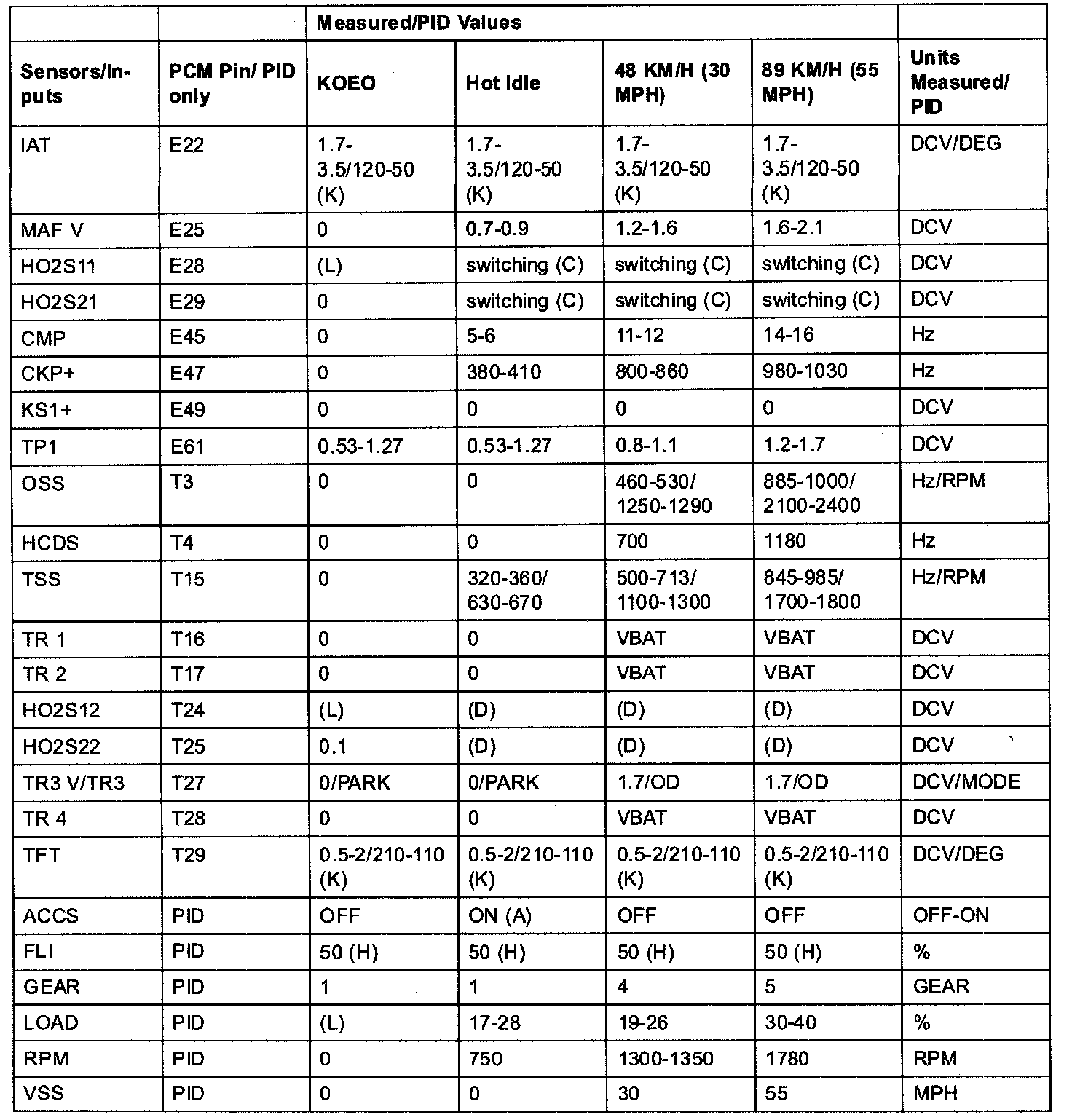

Sensors/Inputs:




Sensors/Inputs

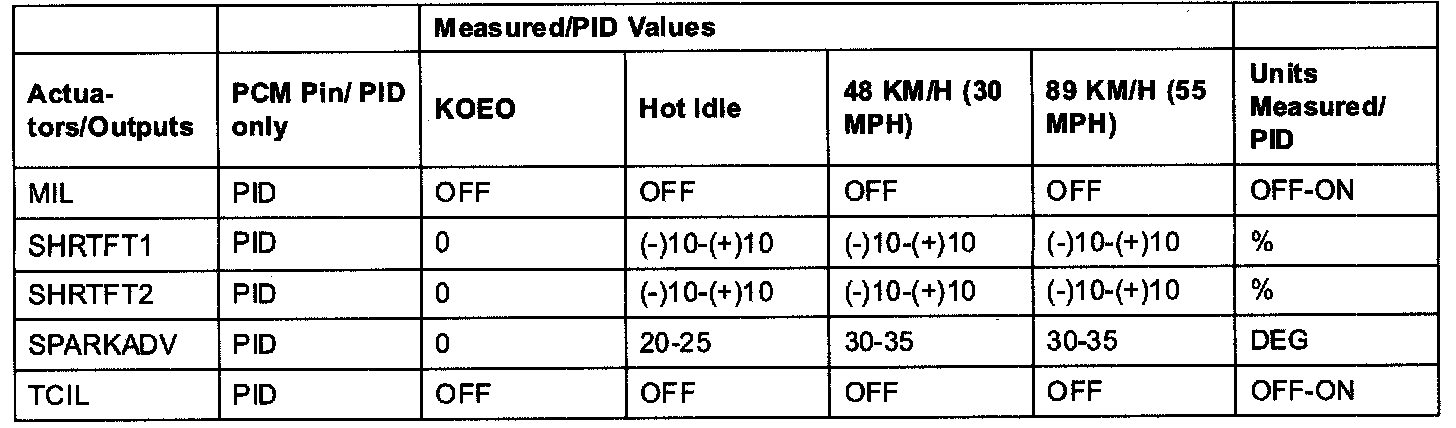

Actuators/Outputs (Part 1):

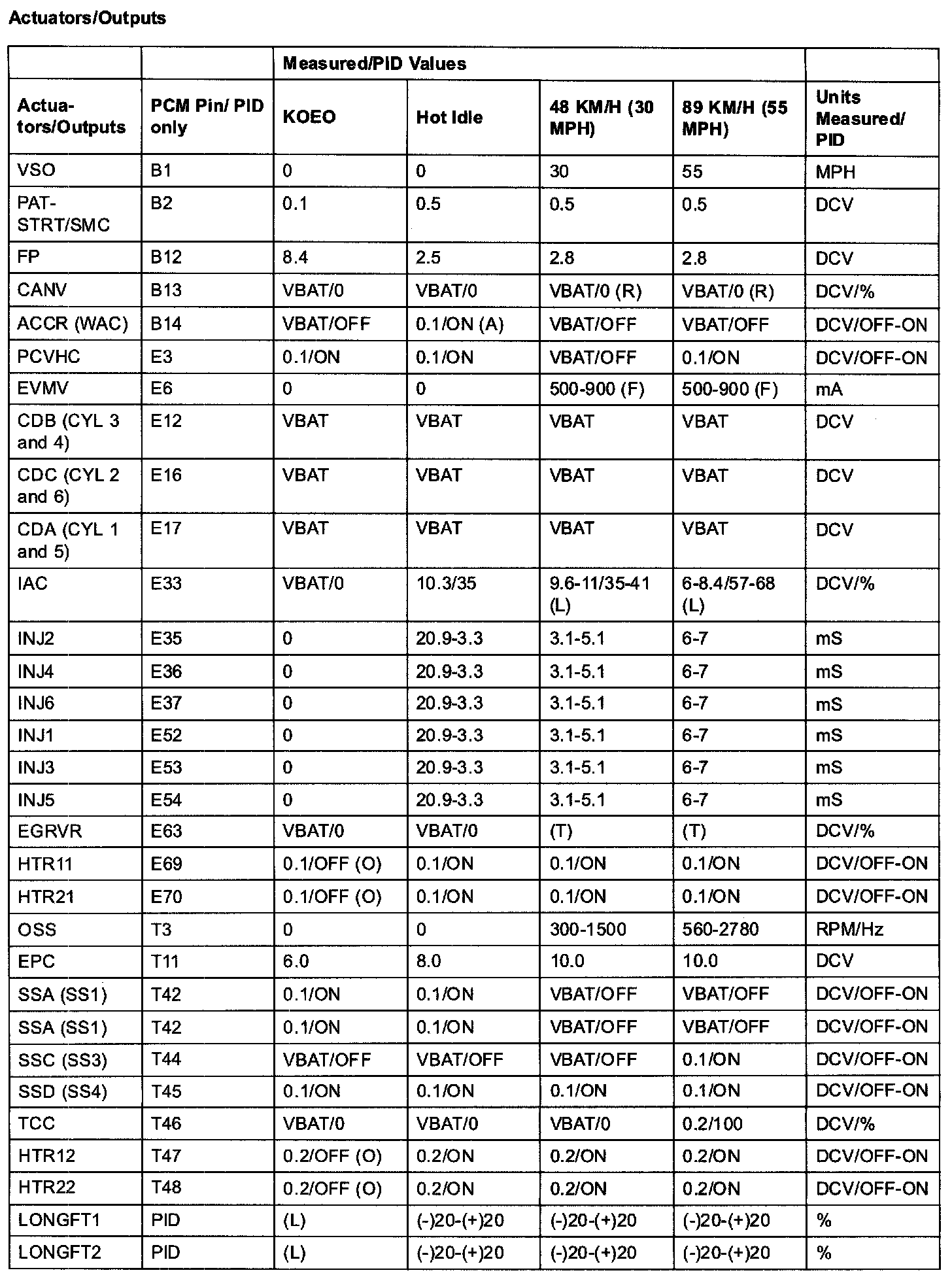

Actuators/Outputs (Part 2):




Actuators/Outputs

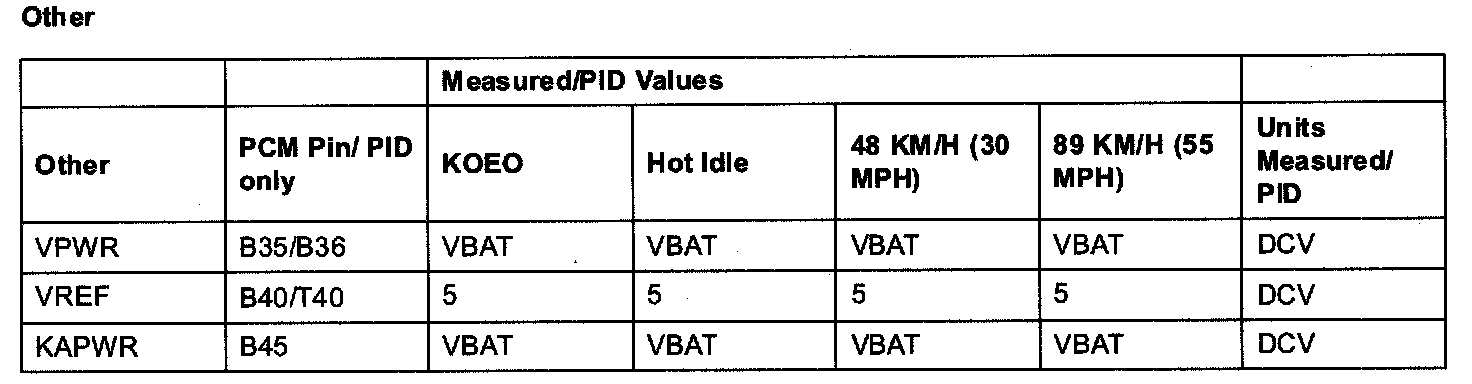

Other:




Other
