Manual Transmission/Transaxle

MANUAL TRANSMISSION AND CLUTCH SPECIFICATIONS

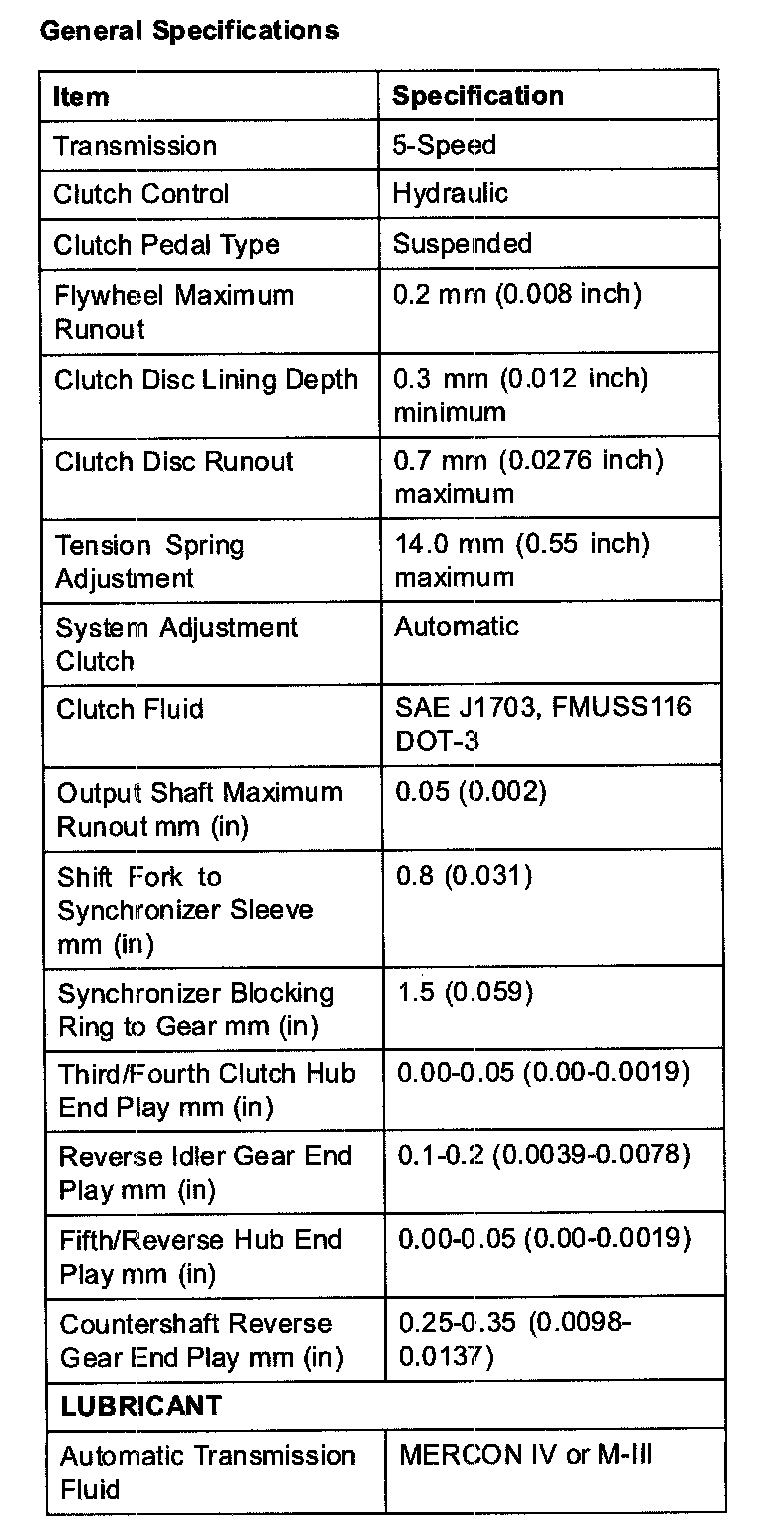

General Specifications:

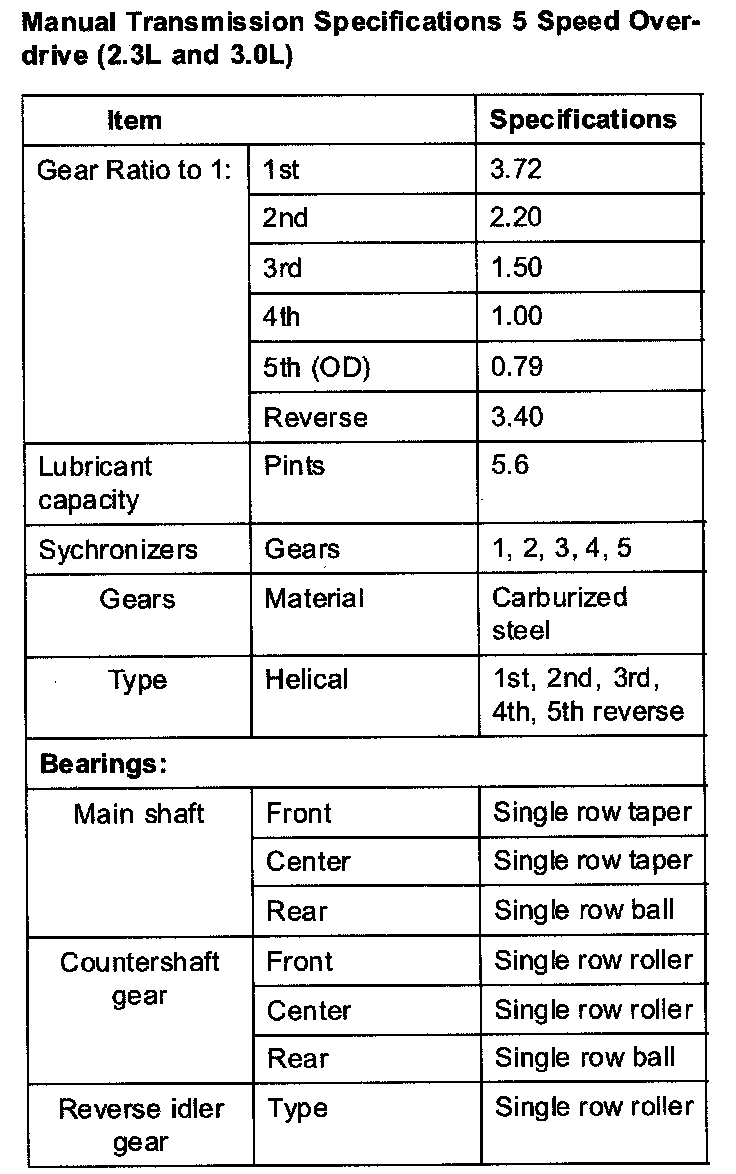

Manual Transmission Specifications 5 Speed Overdrive (2.3L and 3.0L):

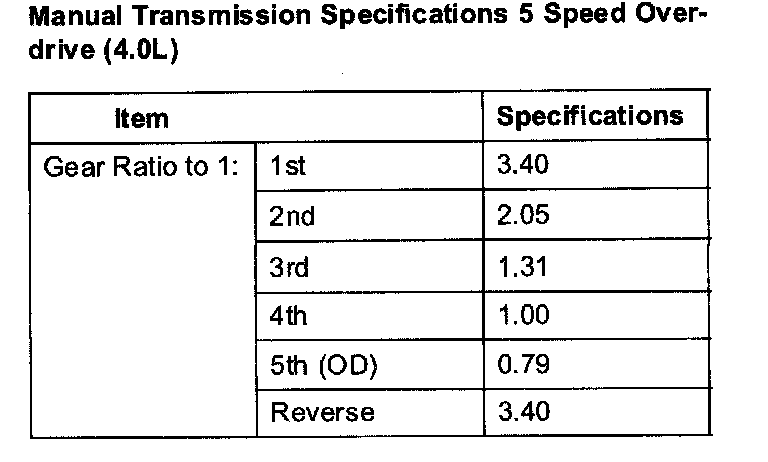

Manual Transmission Specifications 5 Speed Overdrive (4.0L) (Part 1):

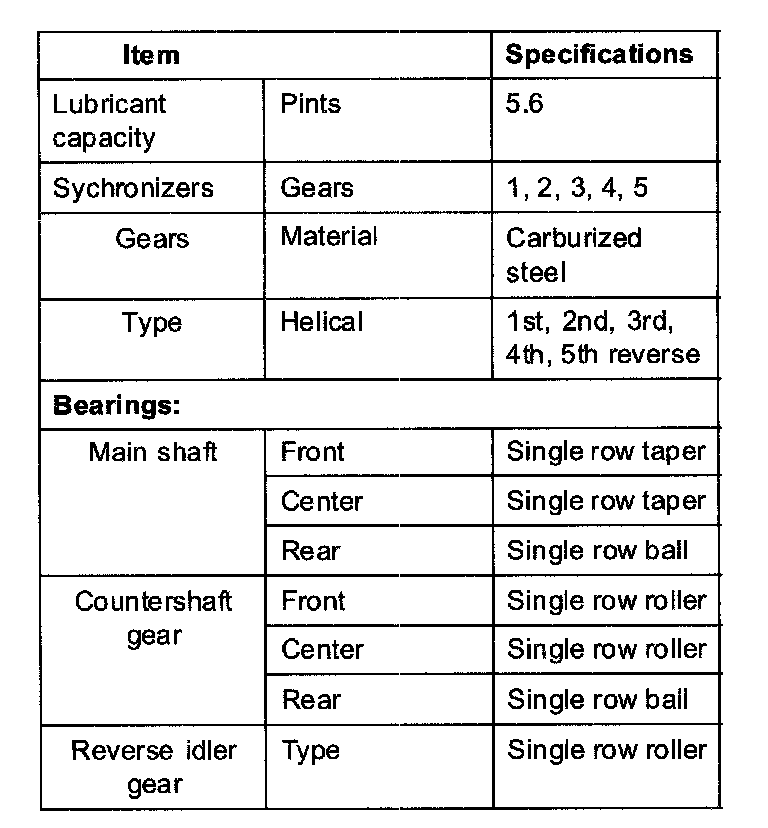

Manual Transmission Specifications 5 Speed Overdrive (4.0L) (Part 2):

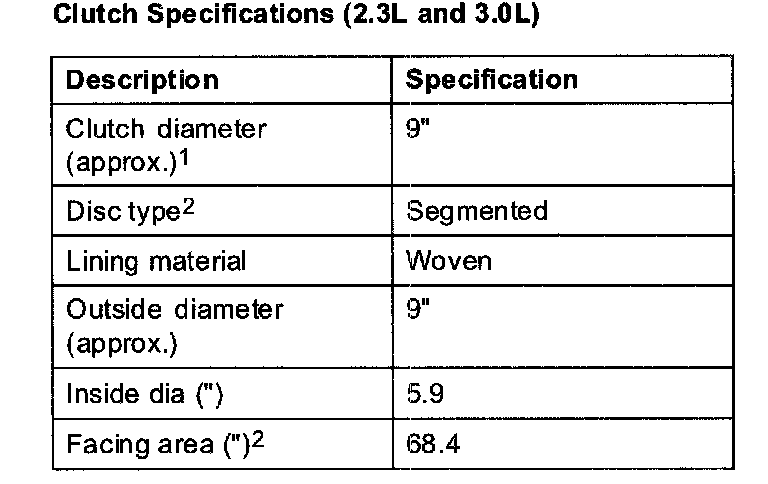

Clutch Specifications (2.3L and 3.0L) (Part 1):

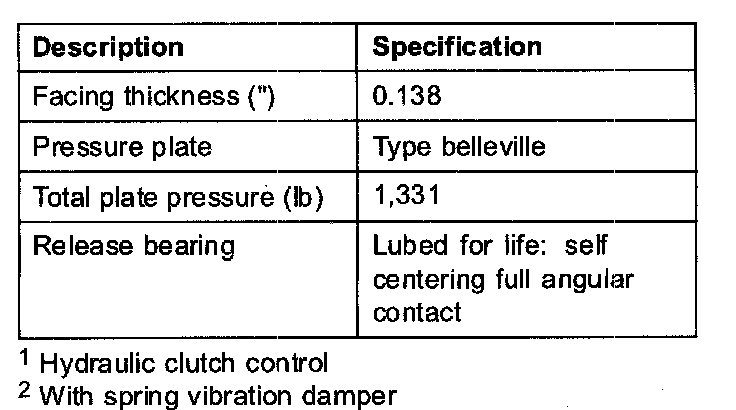

Clutch Specifications (2.3L and 3.0L) (Part 2):

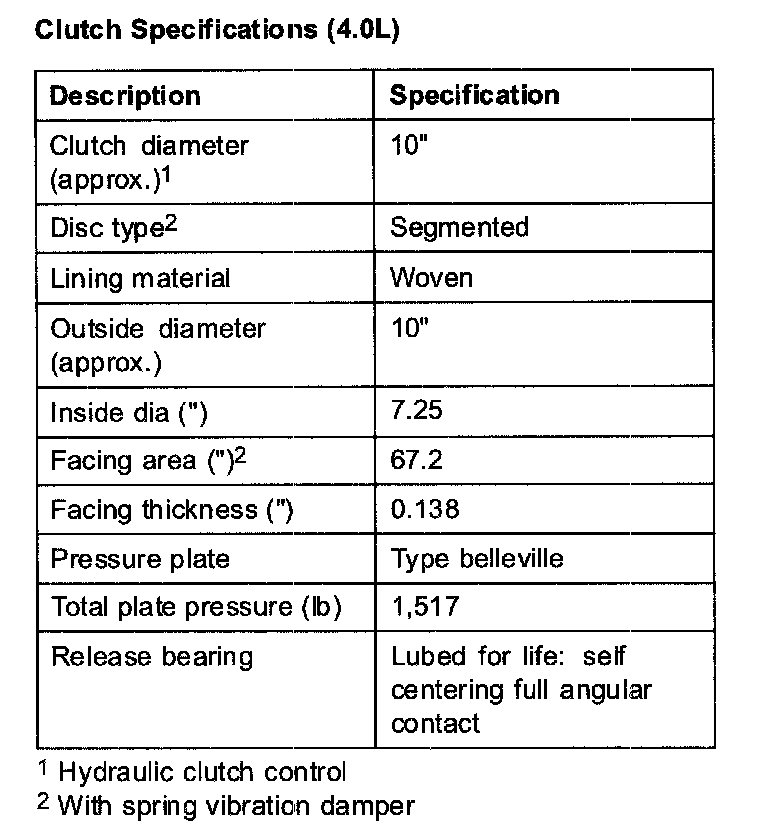

Clutch Specifications (4.0L):
