Camshaft Position (CMP) Sensor Removal / Installation - 2.3L

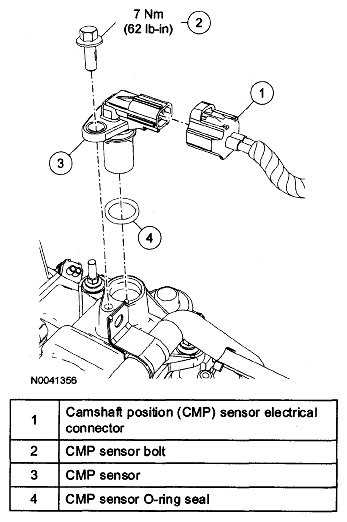

Fig 1: Camshaft Position (CMP) Sensor Replacement Components With Torque Specifications - 2.3L

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery cable. See BATTERY DISCONNECT .

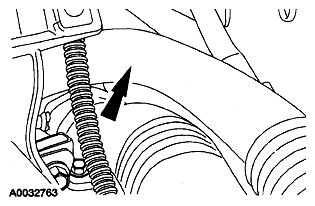

   Fig 2: Locating Camshaft Position (CMP) Sensor Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
2. Disconnect the camshaft position (CMP) sensor electrical connector.

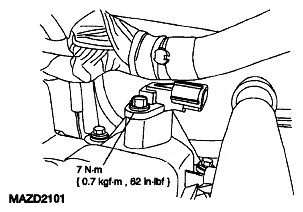

   Fig 3: CMP Sensor Bolt With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
3. Remove the bolt and the CMP sensor.
   NOTE:

   • Lubricate the O-ring with clean engine oil.
4. To install, reverse the removal procedure.
