Keyless Entry System (With Advanced Keyless System)

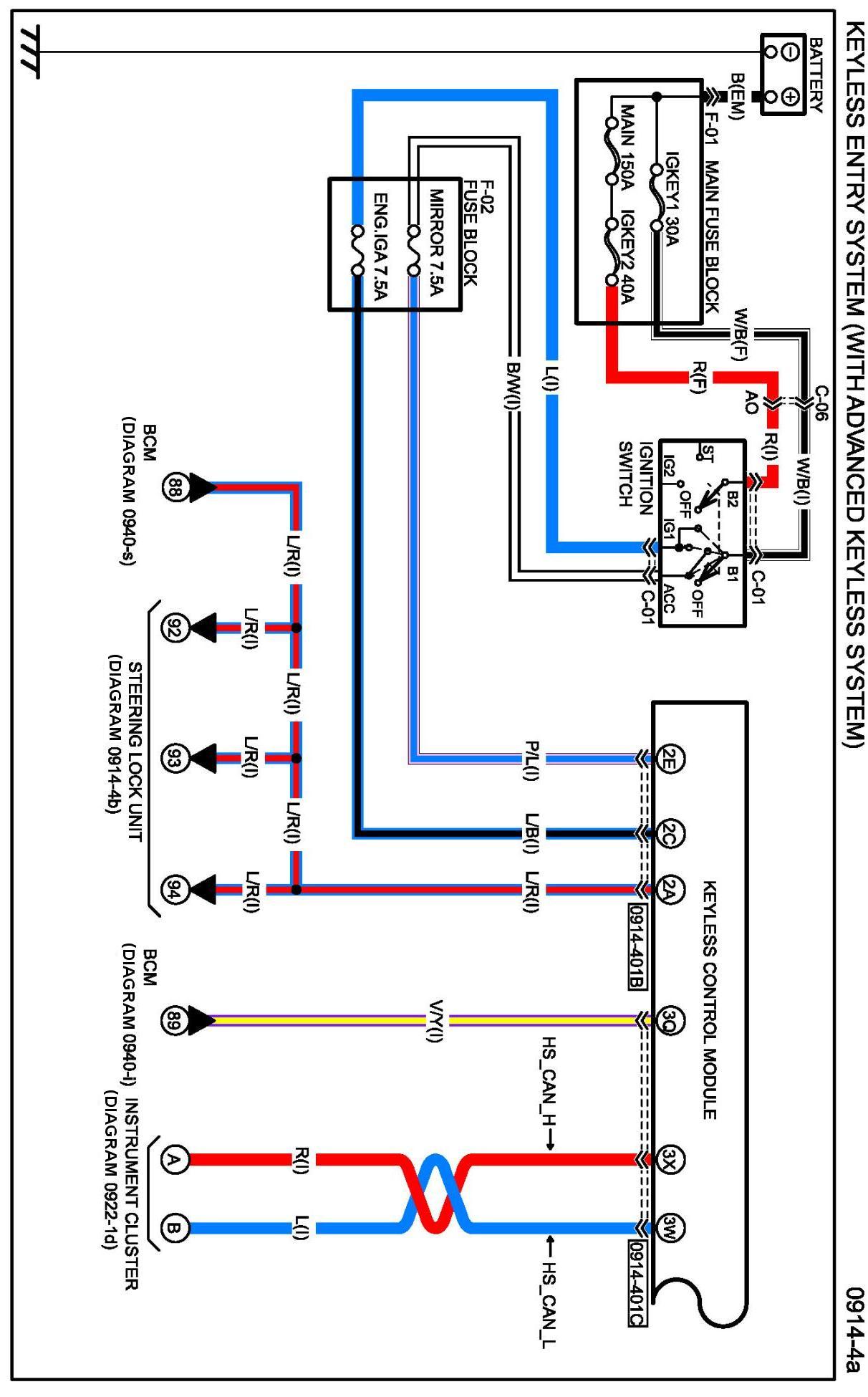

Diagram 0914-4a:

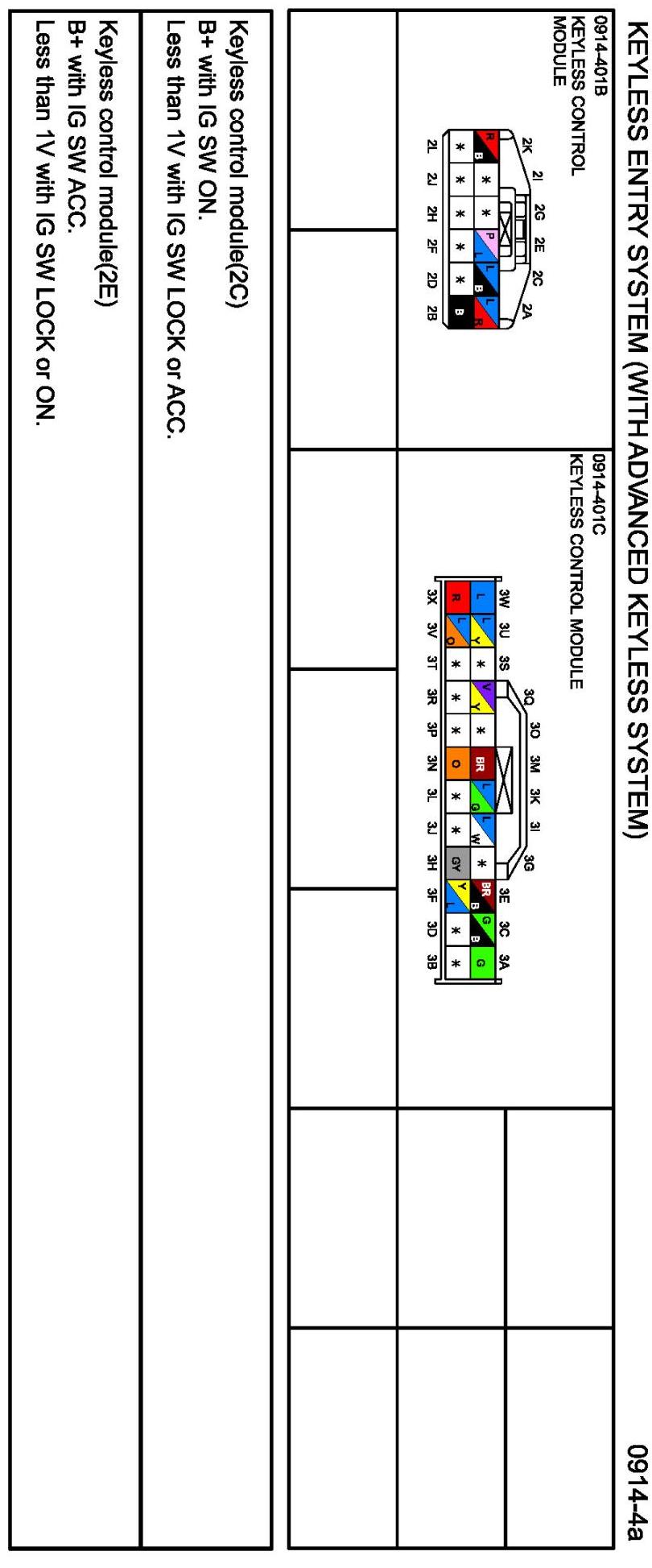

Connectors 0914-4a:

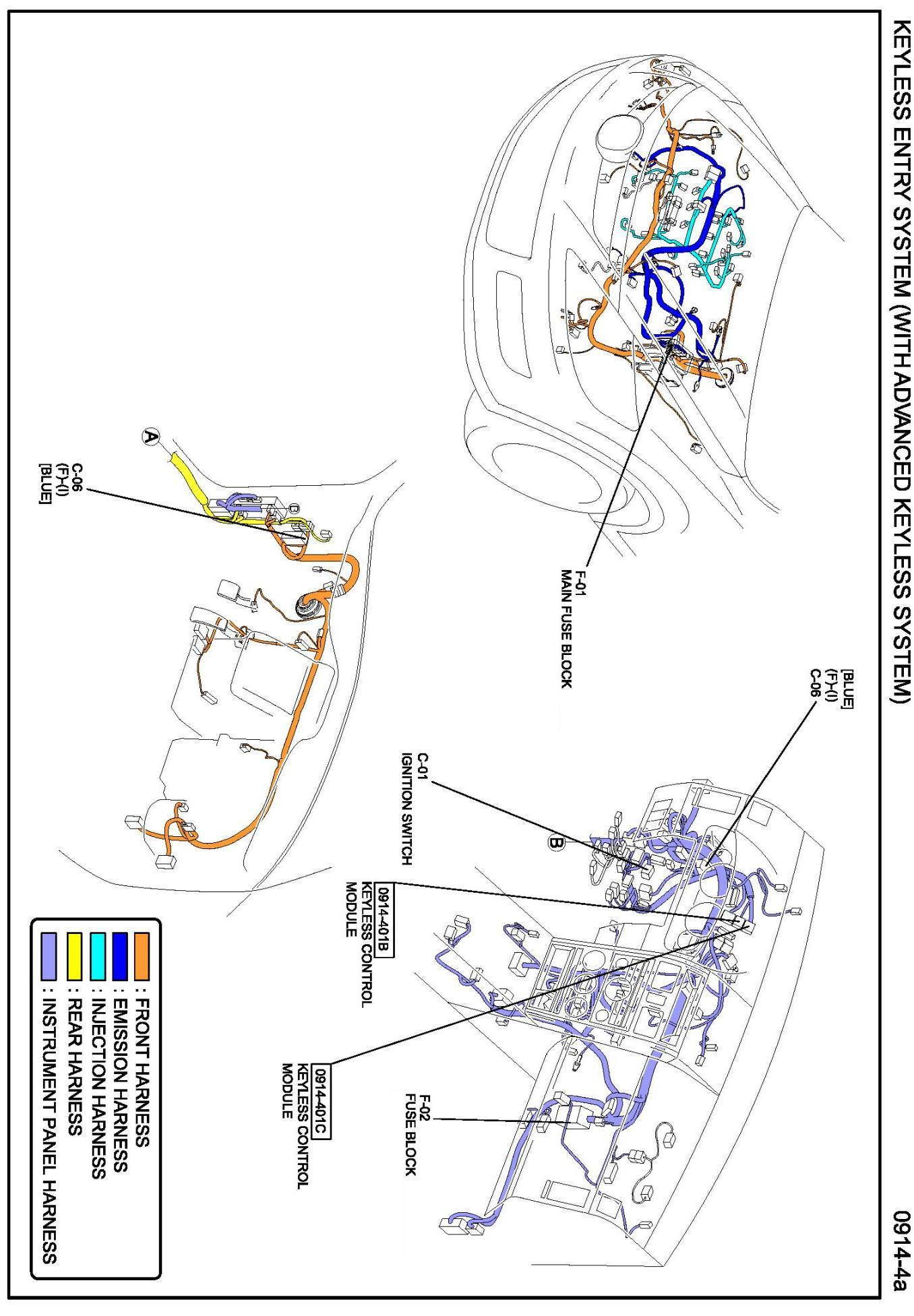

Routing View 0914-4a:

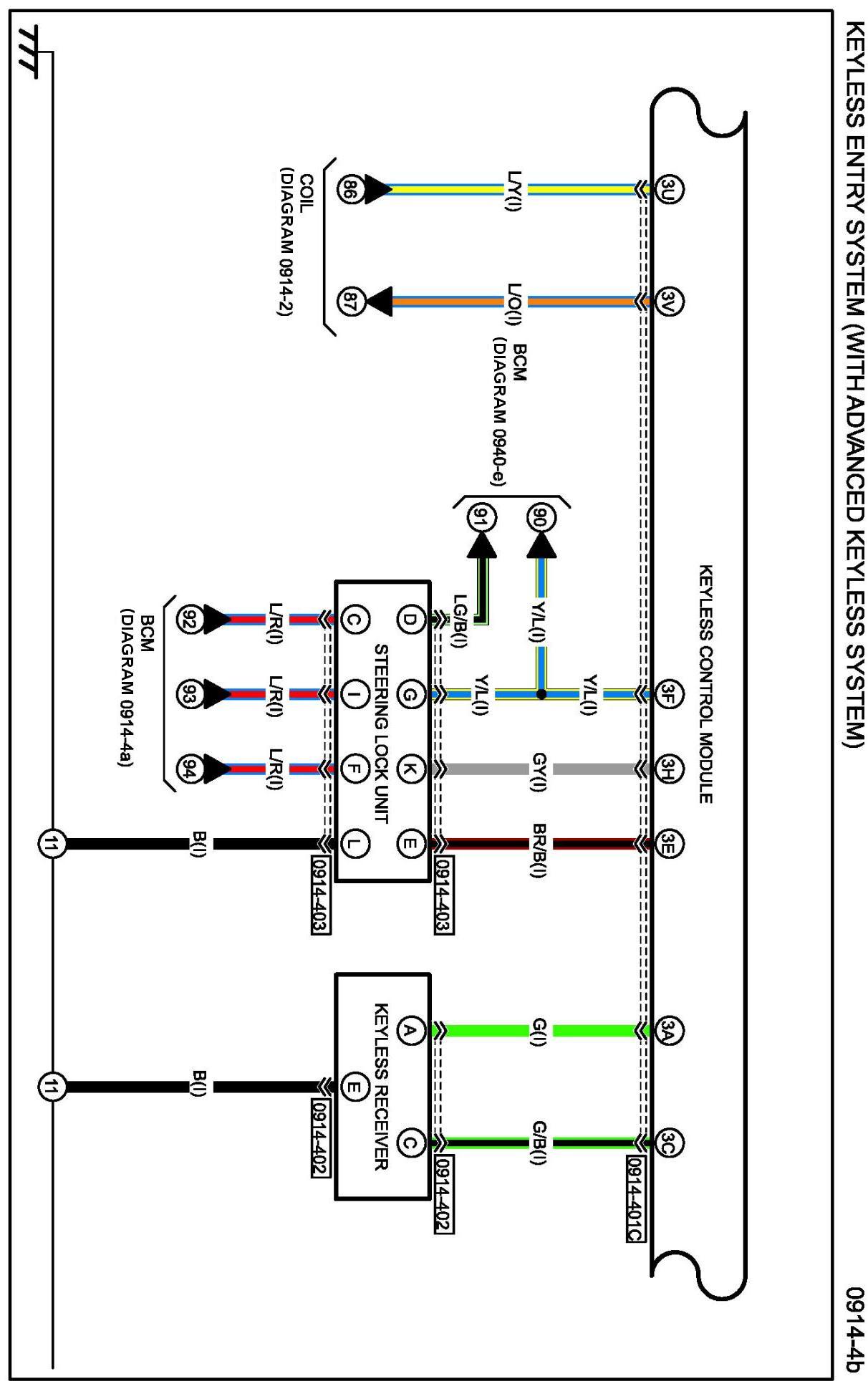

Diagram 0914-4b:

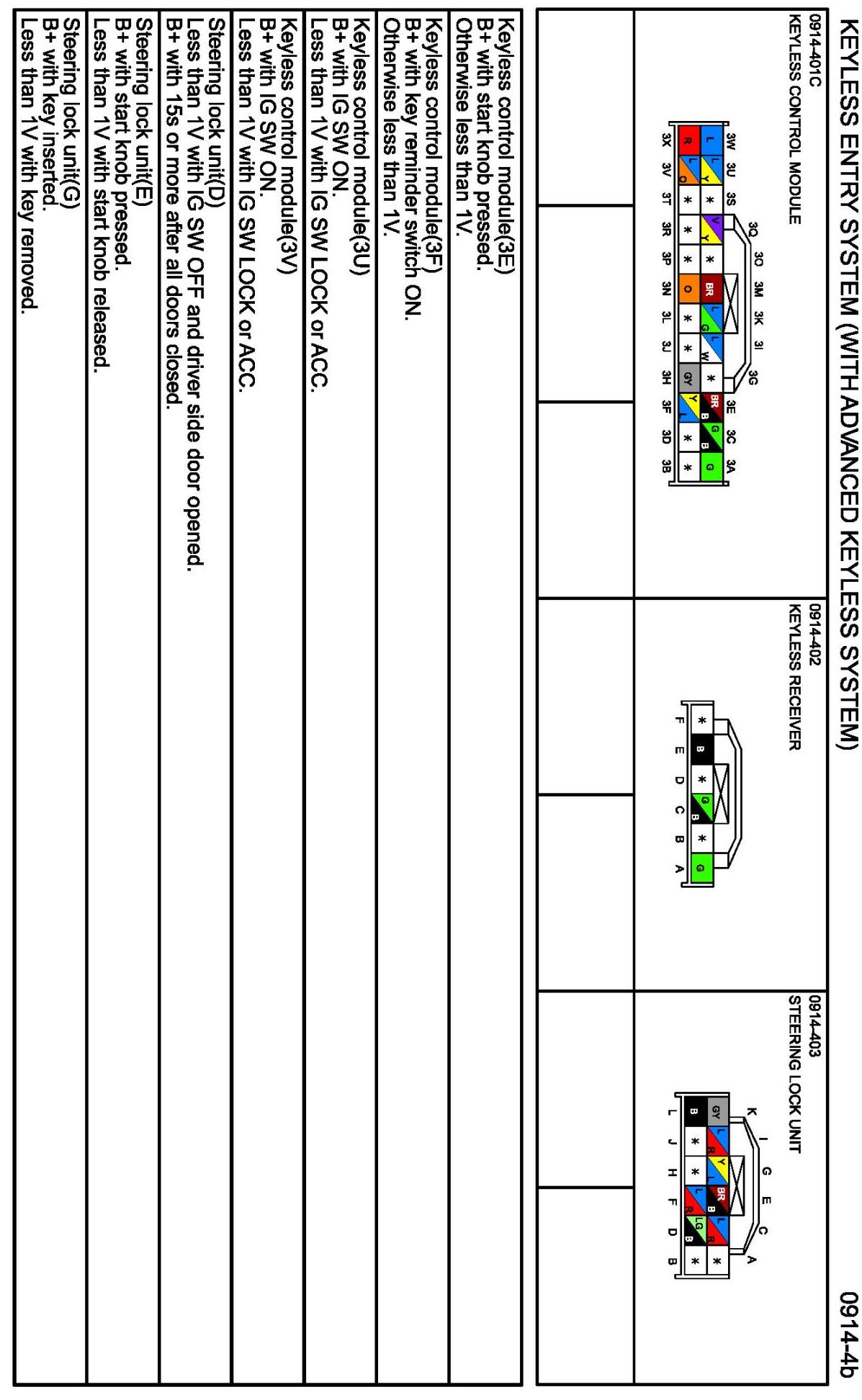

Connectors 0914-4b:

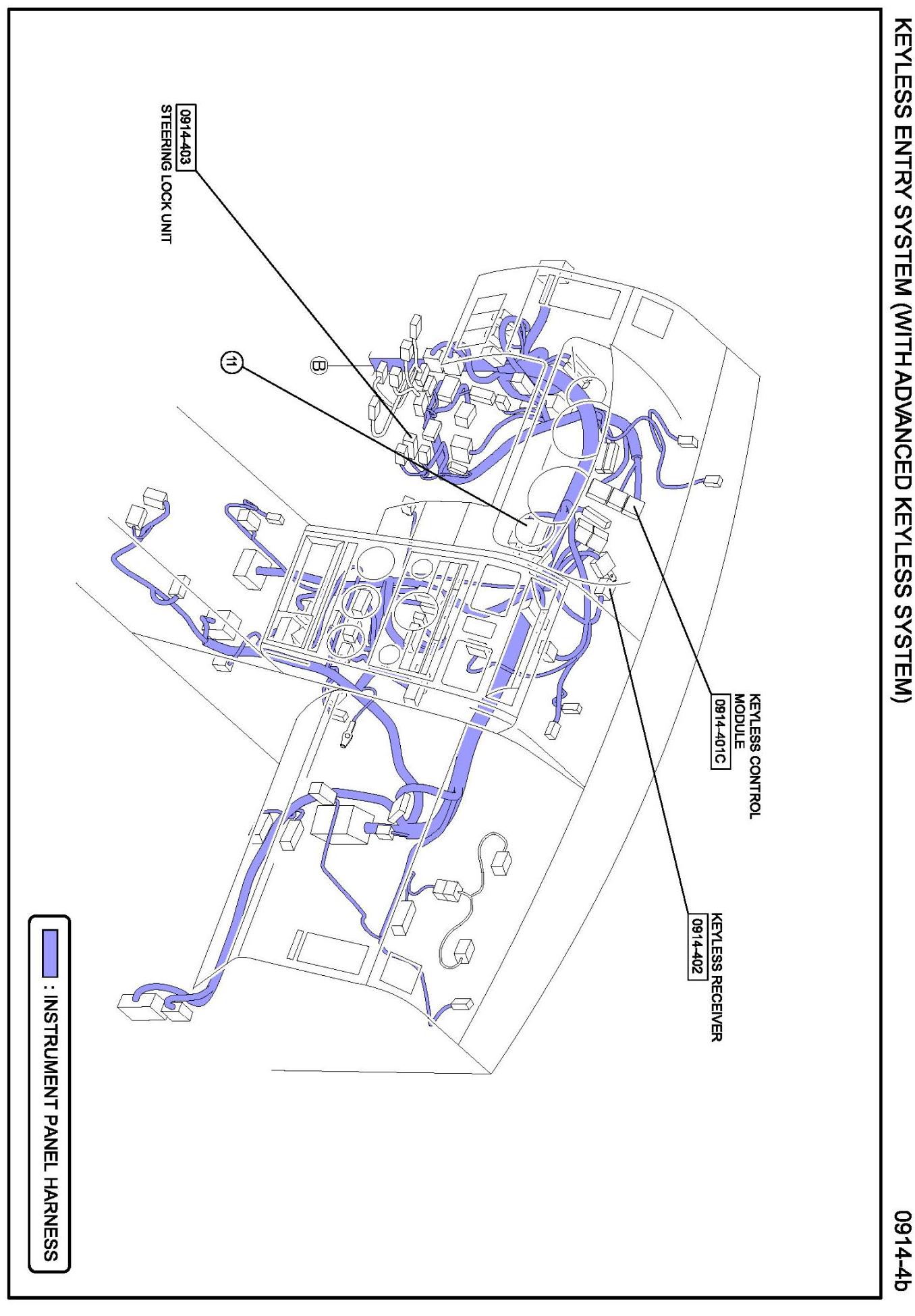

Routing View 0914-4b:

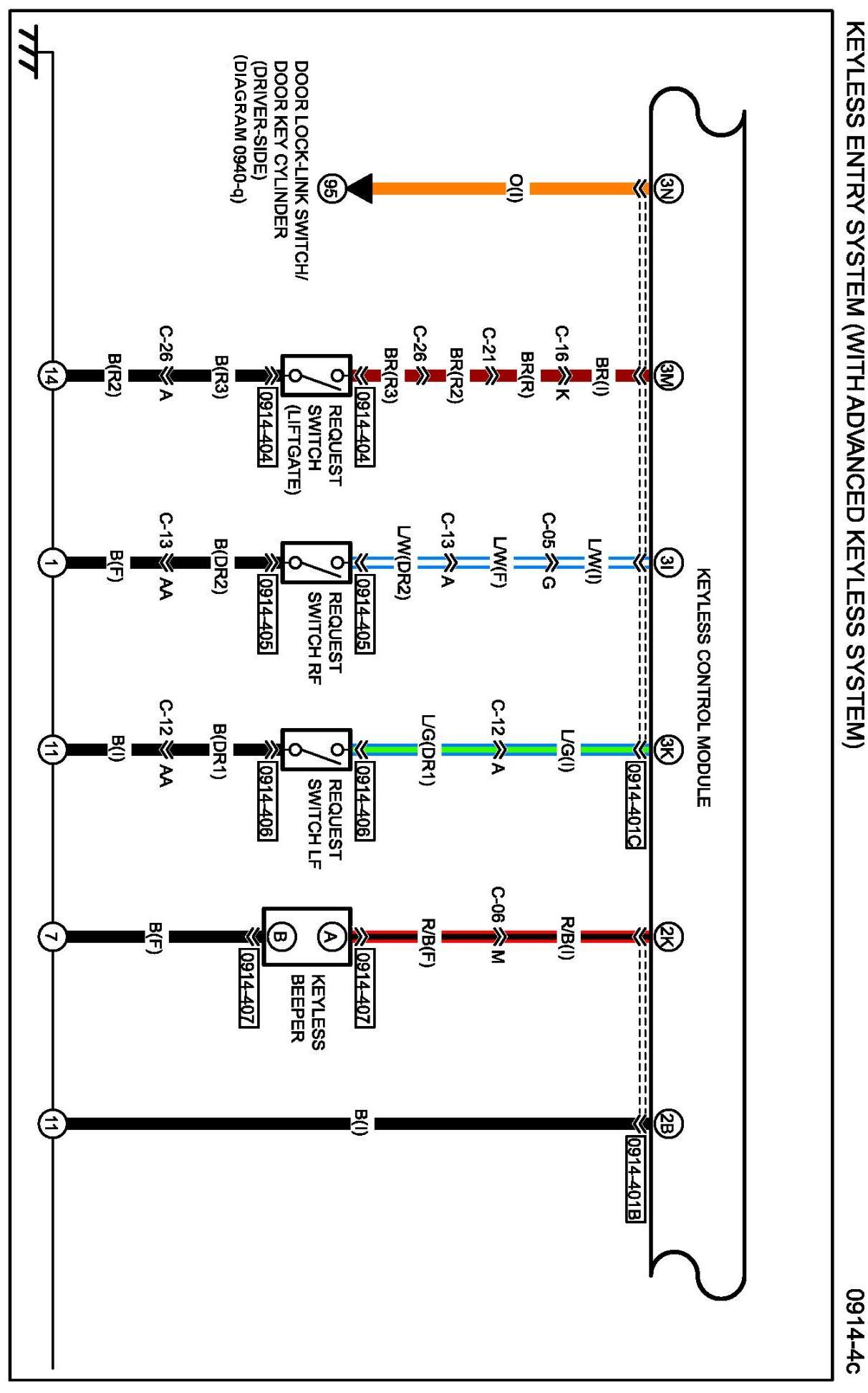

Diagram 0914-4c:

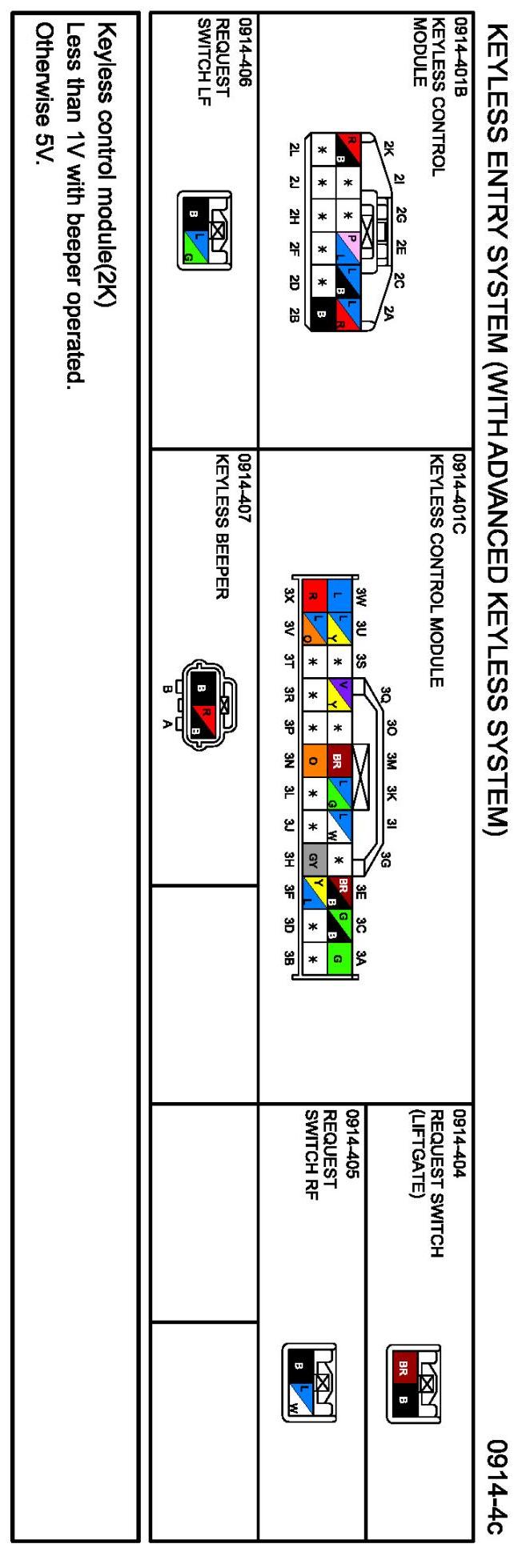

Connectors 0914-4c:

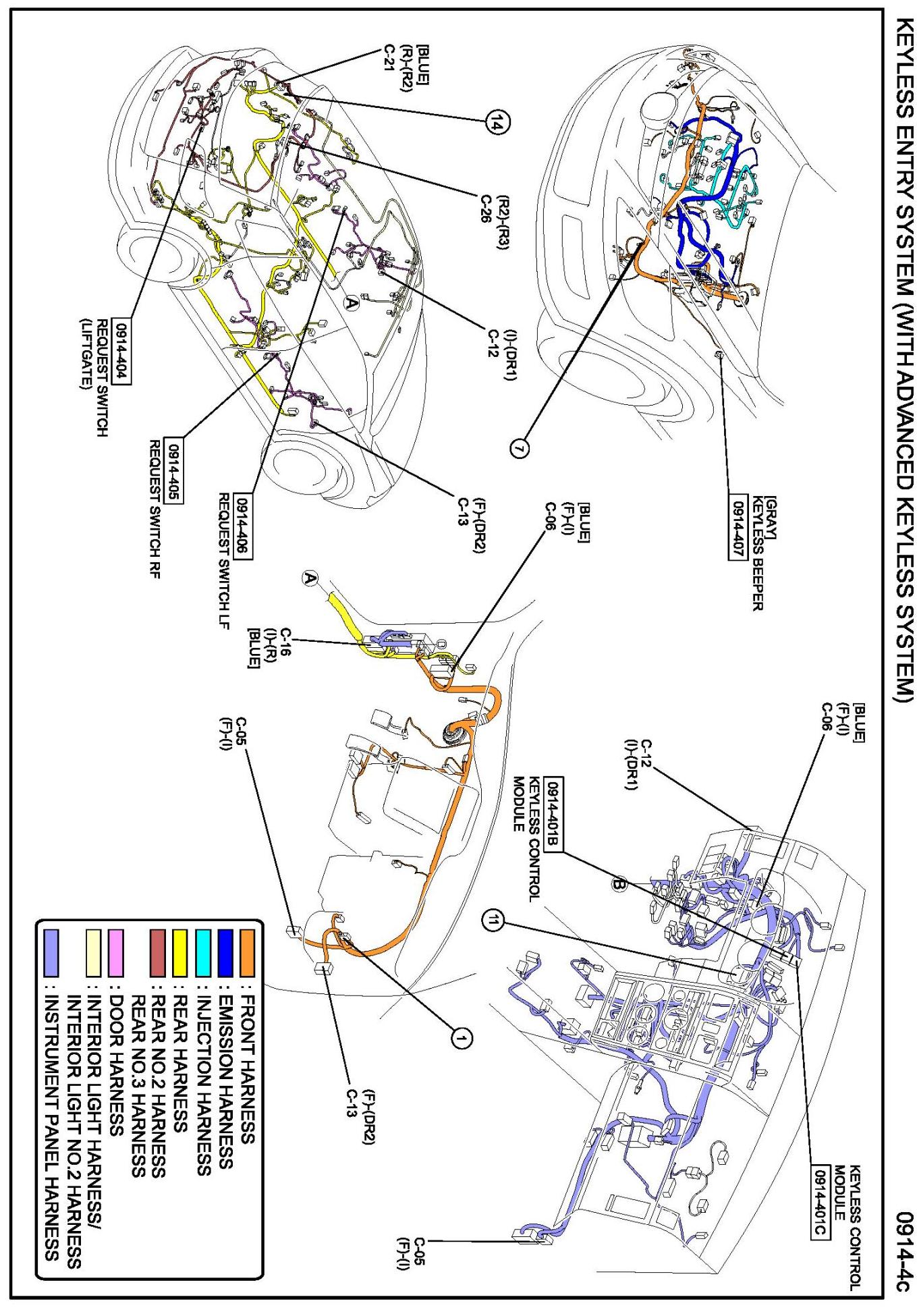

Routing View 0914-4c:

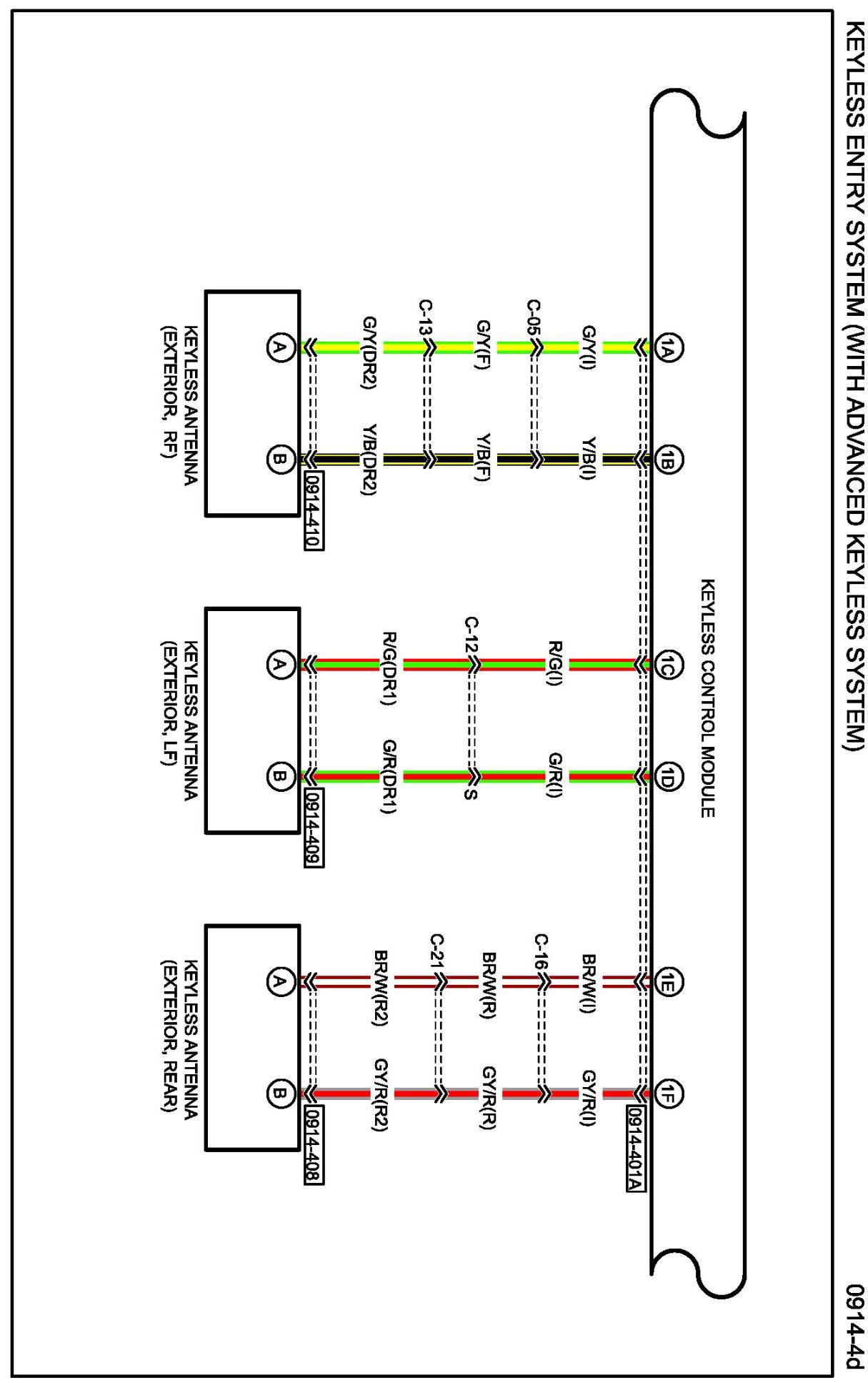

Diagram 0914-4d:

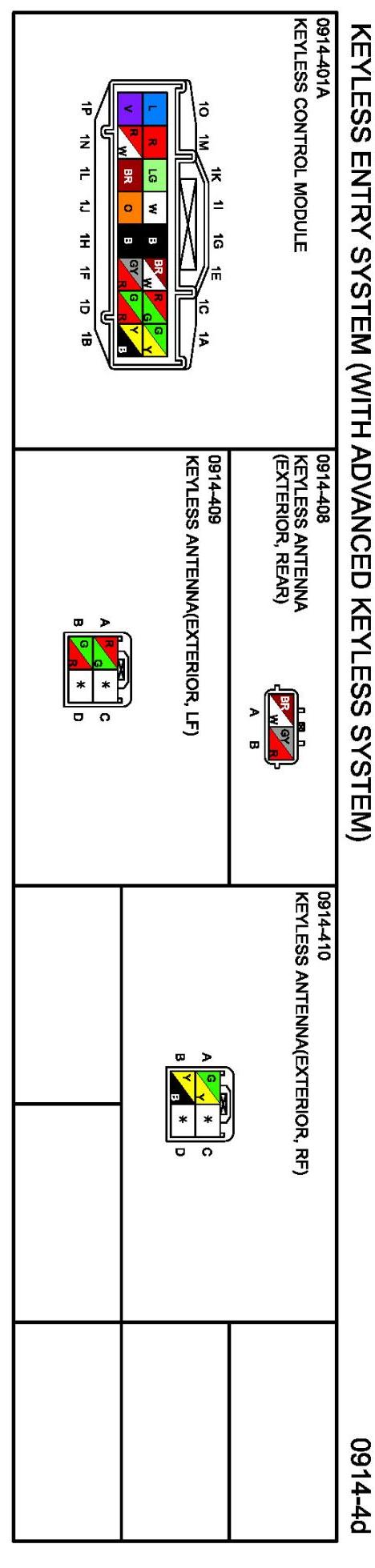

Connectors 0914-4d:

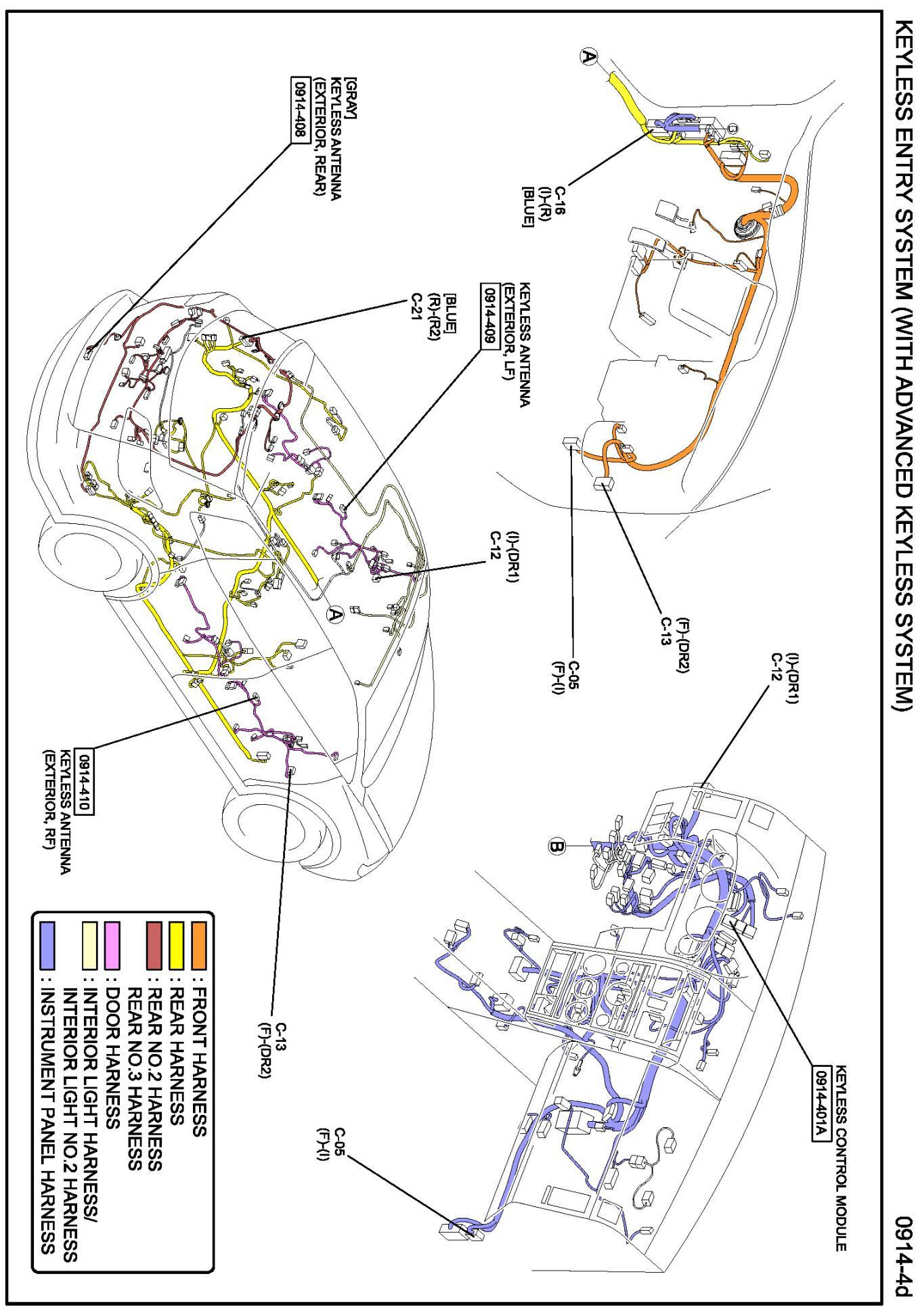

Routing View 0914-4d:

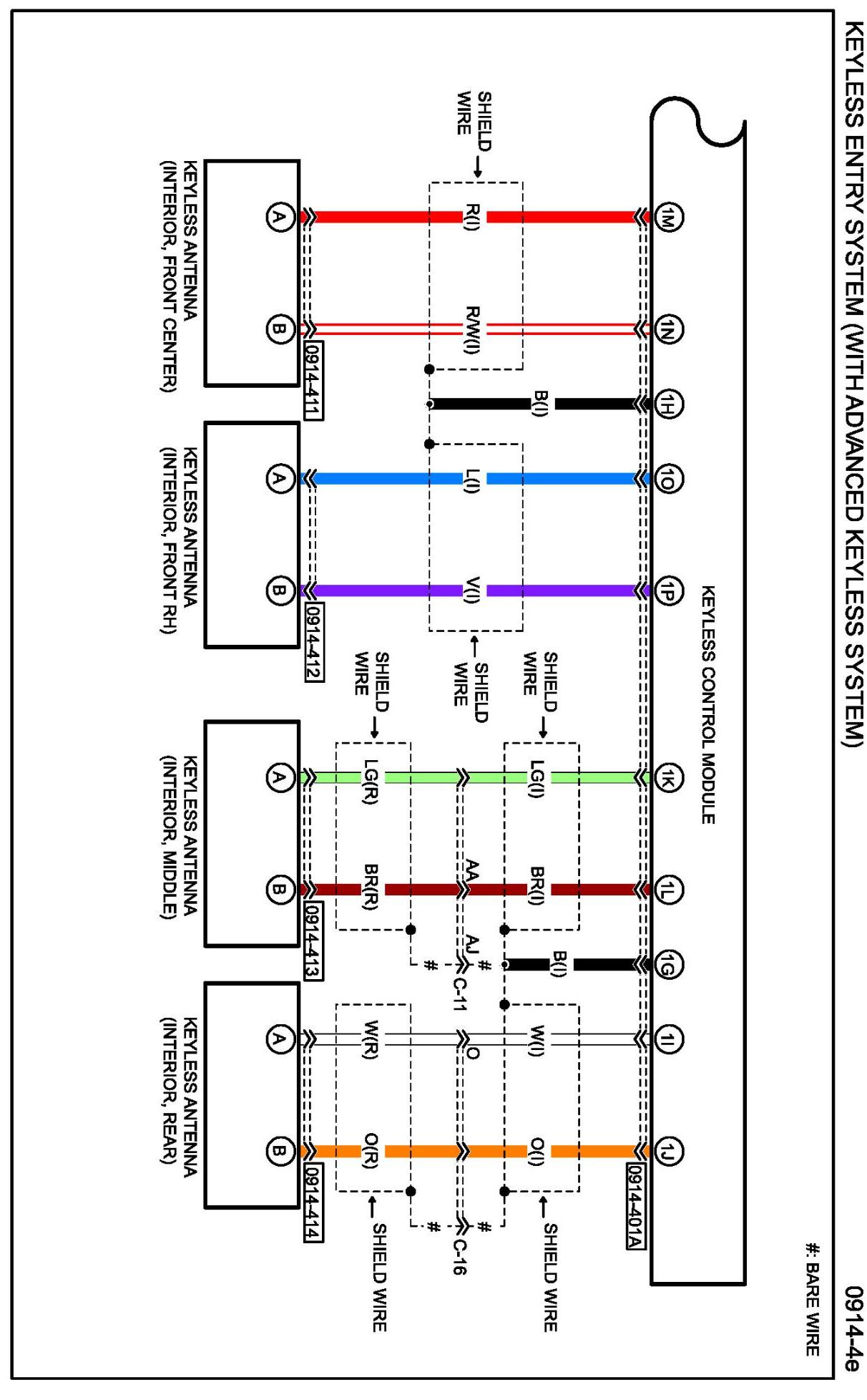

Diagram 0914-4e:

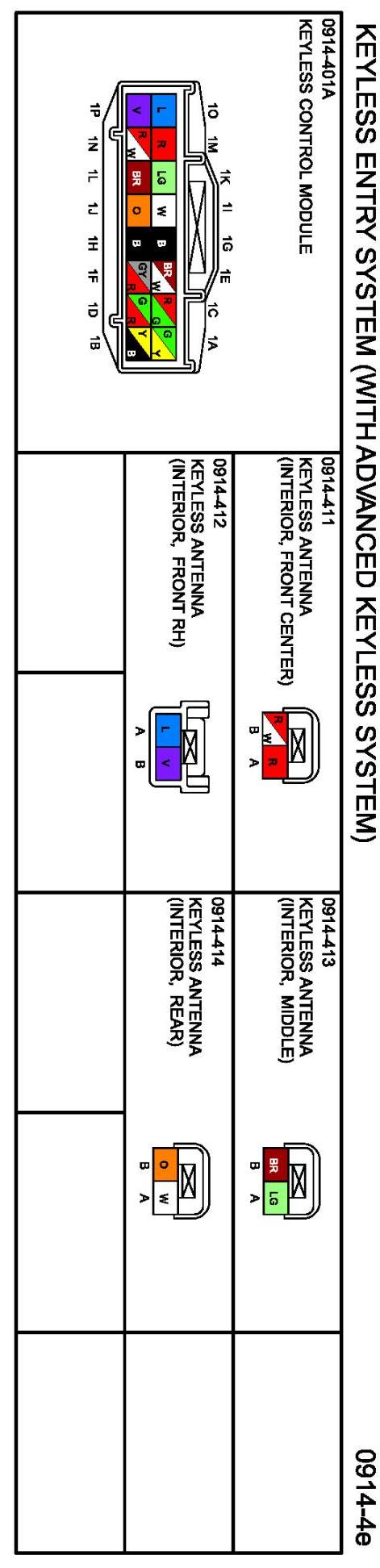

Connectors 0914-4e:

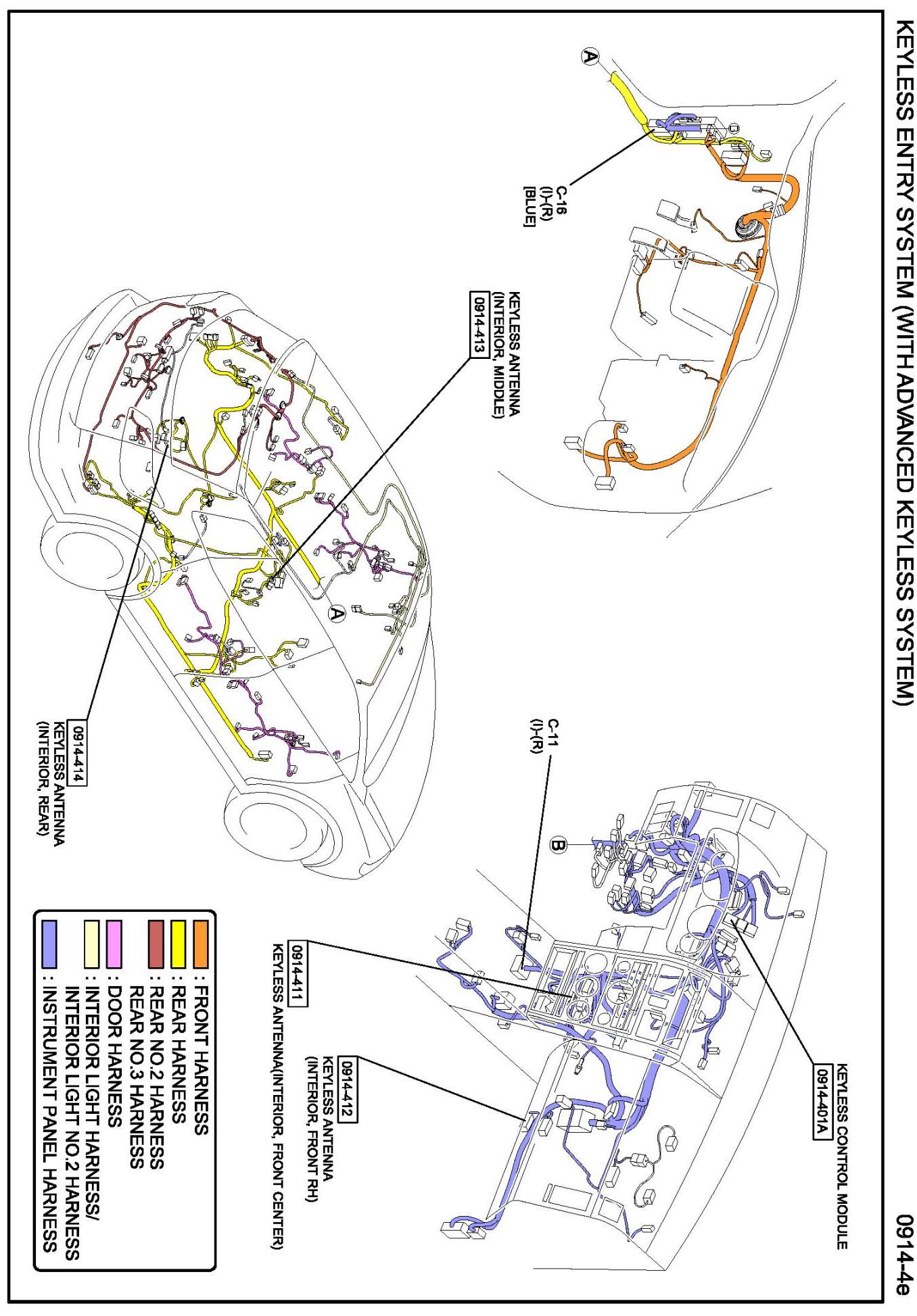

Routing View 0914-4e:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by diagram Name. Diagrams By Diagram Name
