Advanced Keyless System

CARD KEY BATTERY REPLACEMENT [ADVANCED KEYLESS SYSTEM]

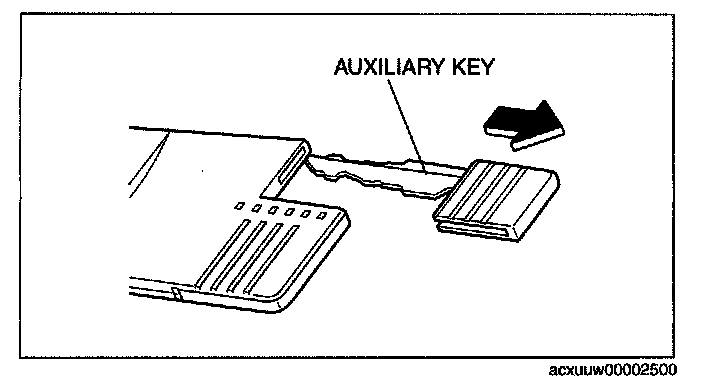

1. Pull out the auxiliary key

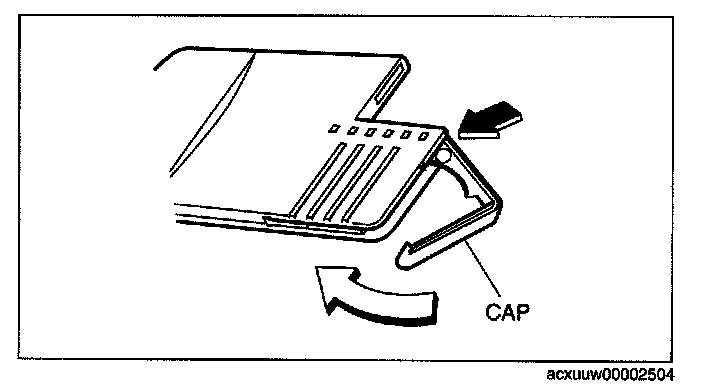

2. Replace the cap using a flathead screwdriver, then rotate and remove the cap.

CAUTION: Do not turn the cap excessively. The cap may be damaged.

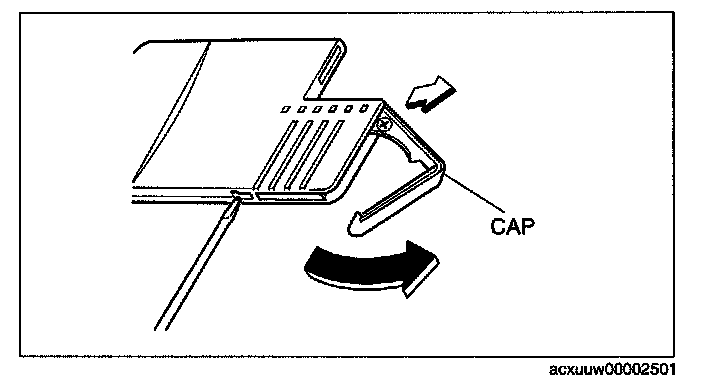

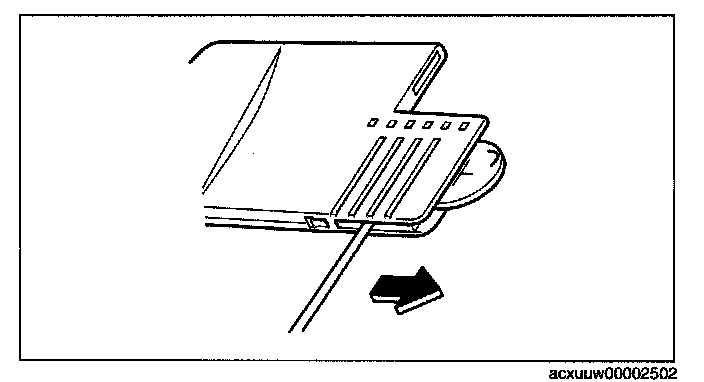

3. Insert a flathead screwdriver into the crack and press the battery out.

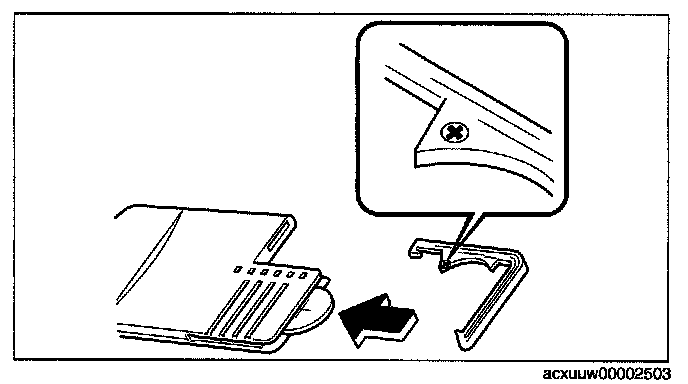

4. Insert the new battery (CR2025) with the positive pole (+) facing the (+) mark on the cap.

Battery specification : Lithium CR2025 x 1

NOTE: The batteries will last about 1 years when used 10 times a day.




5. Rotate and close the cap.
6. Reinsert the auxiliary key.
