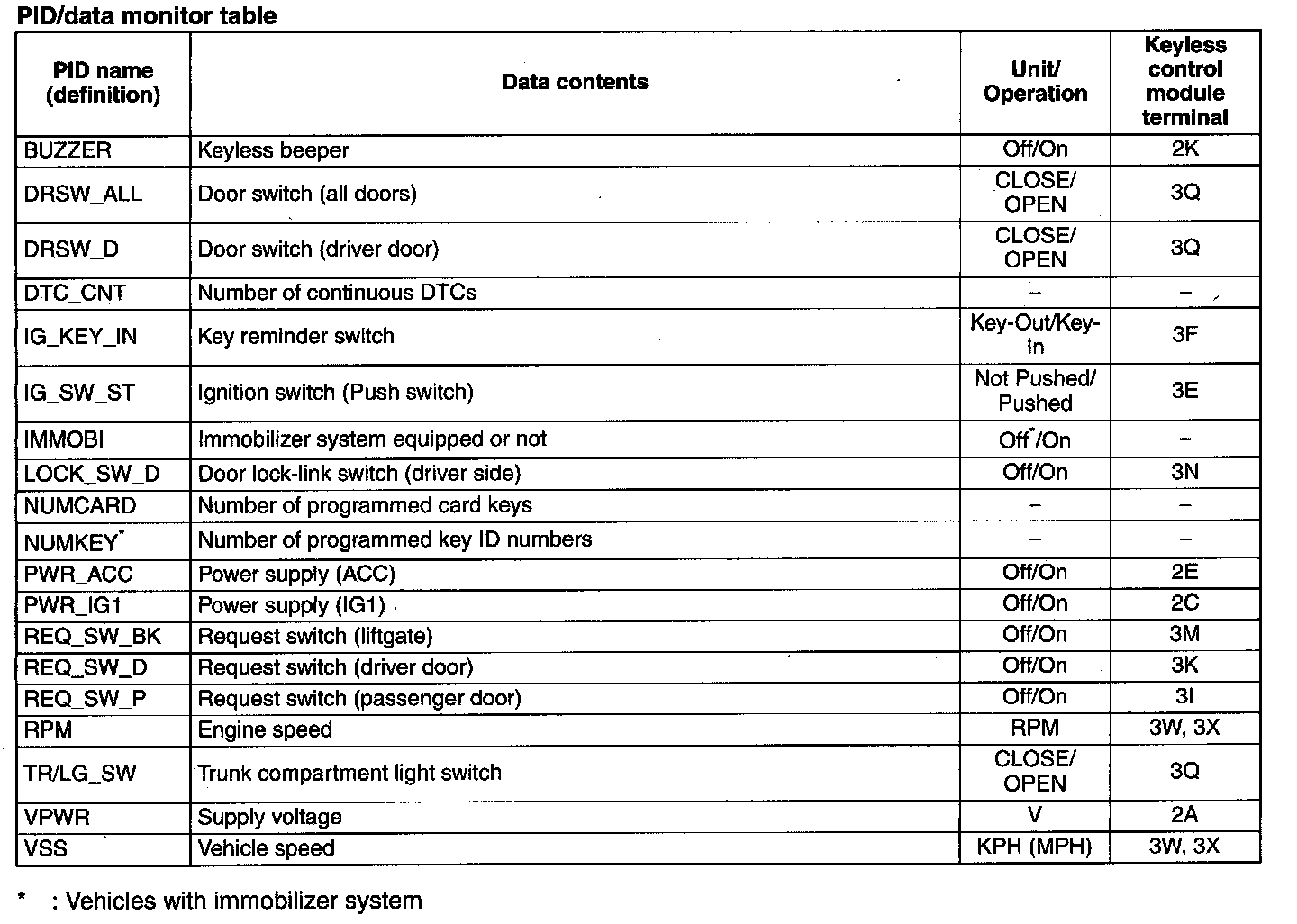

PID/Data Monitor Table [Advanced Keyless And Start System]
PID/data Monitor Table [Advanced Keyless And Start System]:
