ABS Wheel-Speed Sensor RF

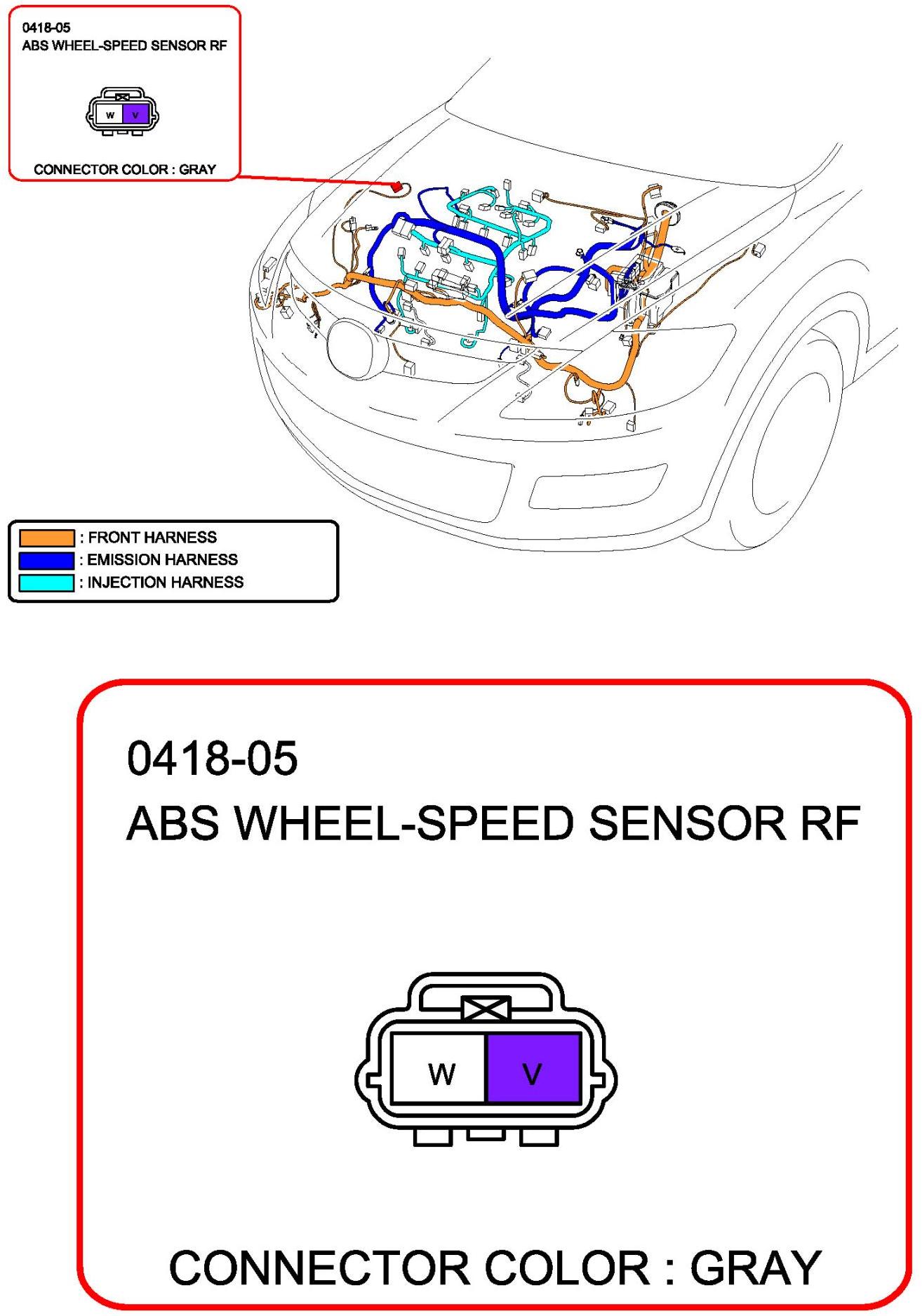

ABS Wheel-Speed Sensor RF:

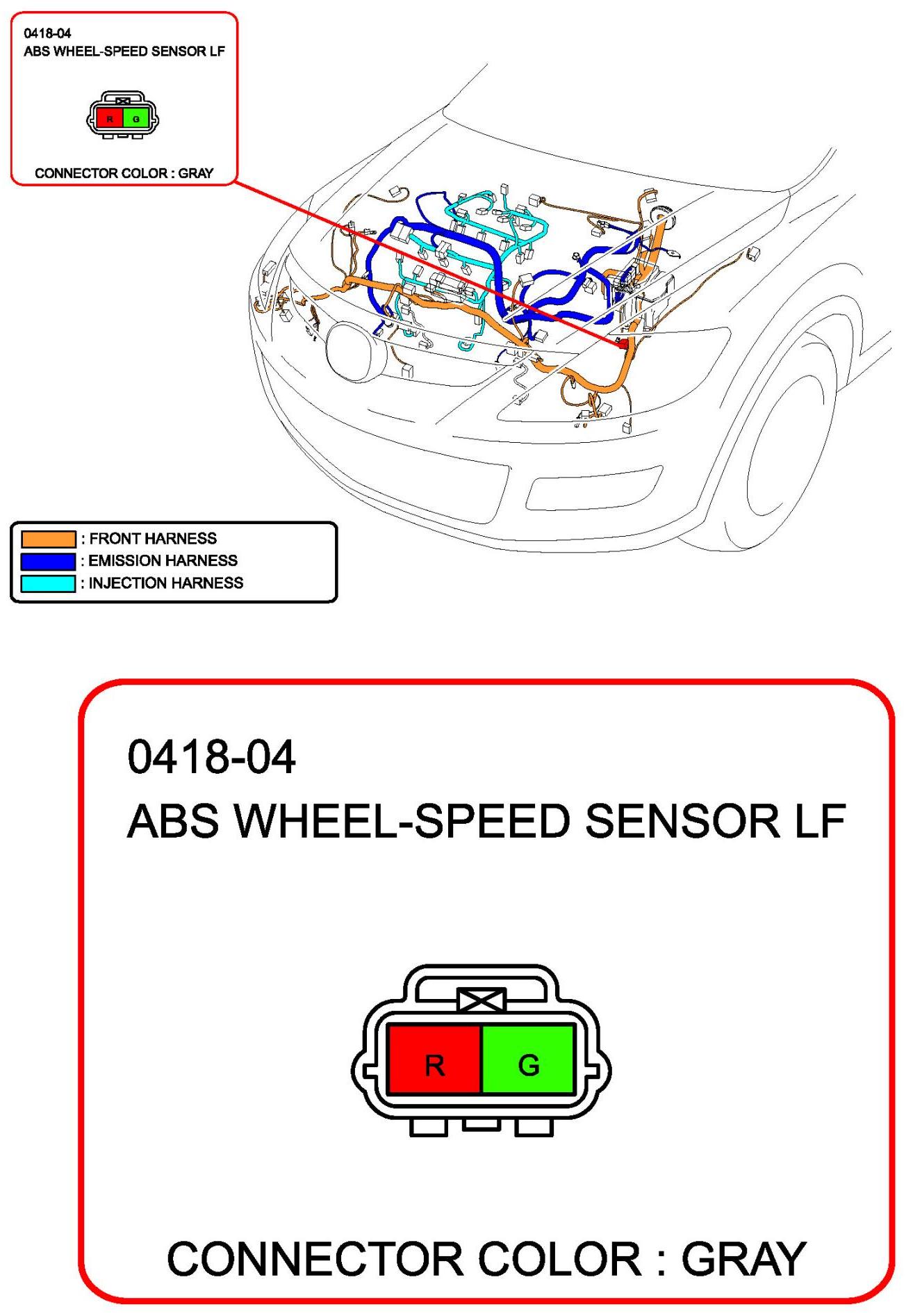

ABS Wheel-Speed Sensor LF:

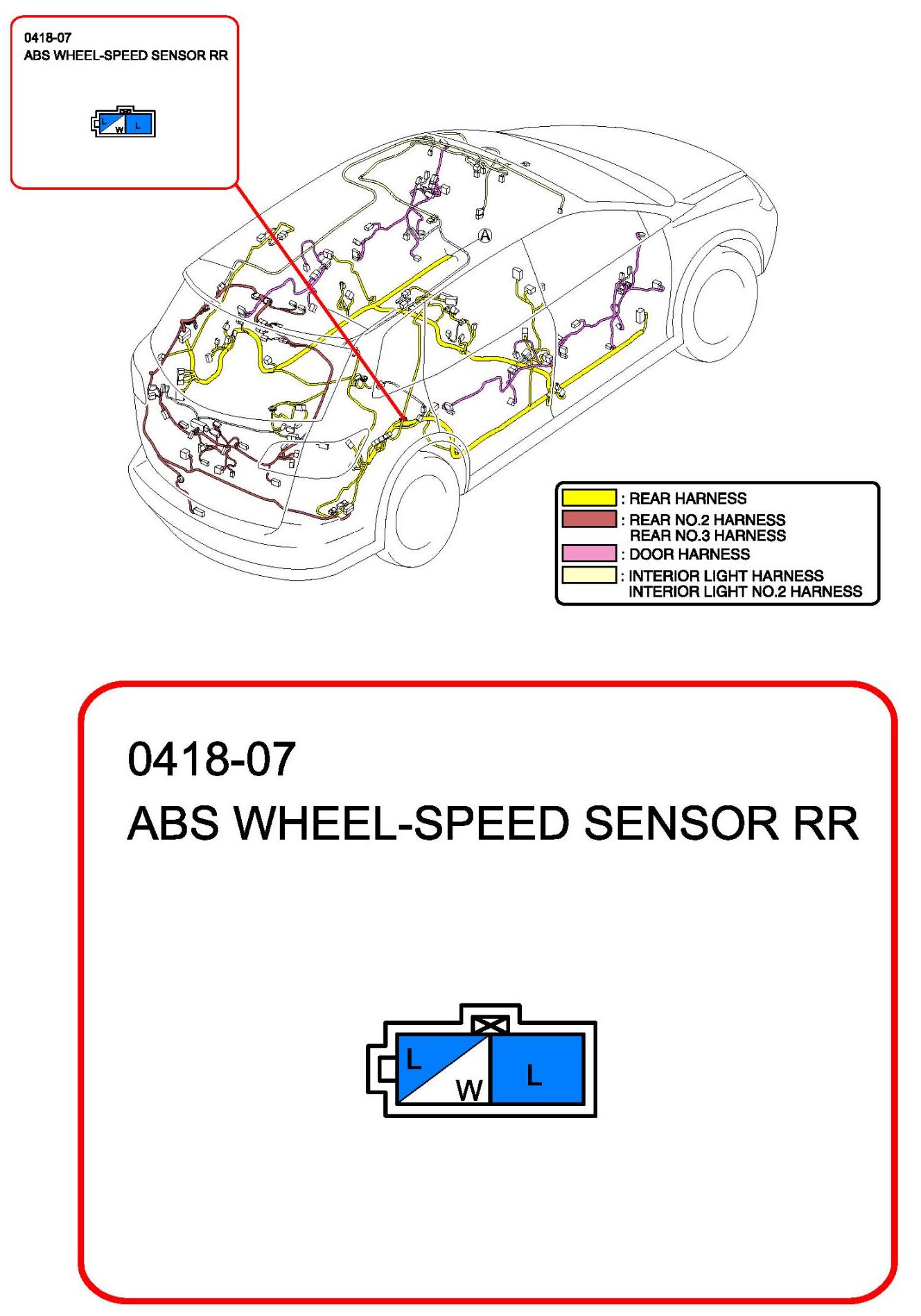

ABS Wheel-Speed Sensor RR:

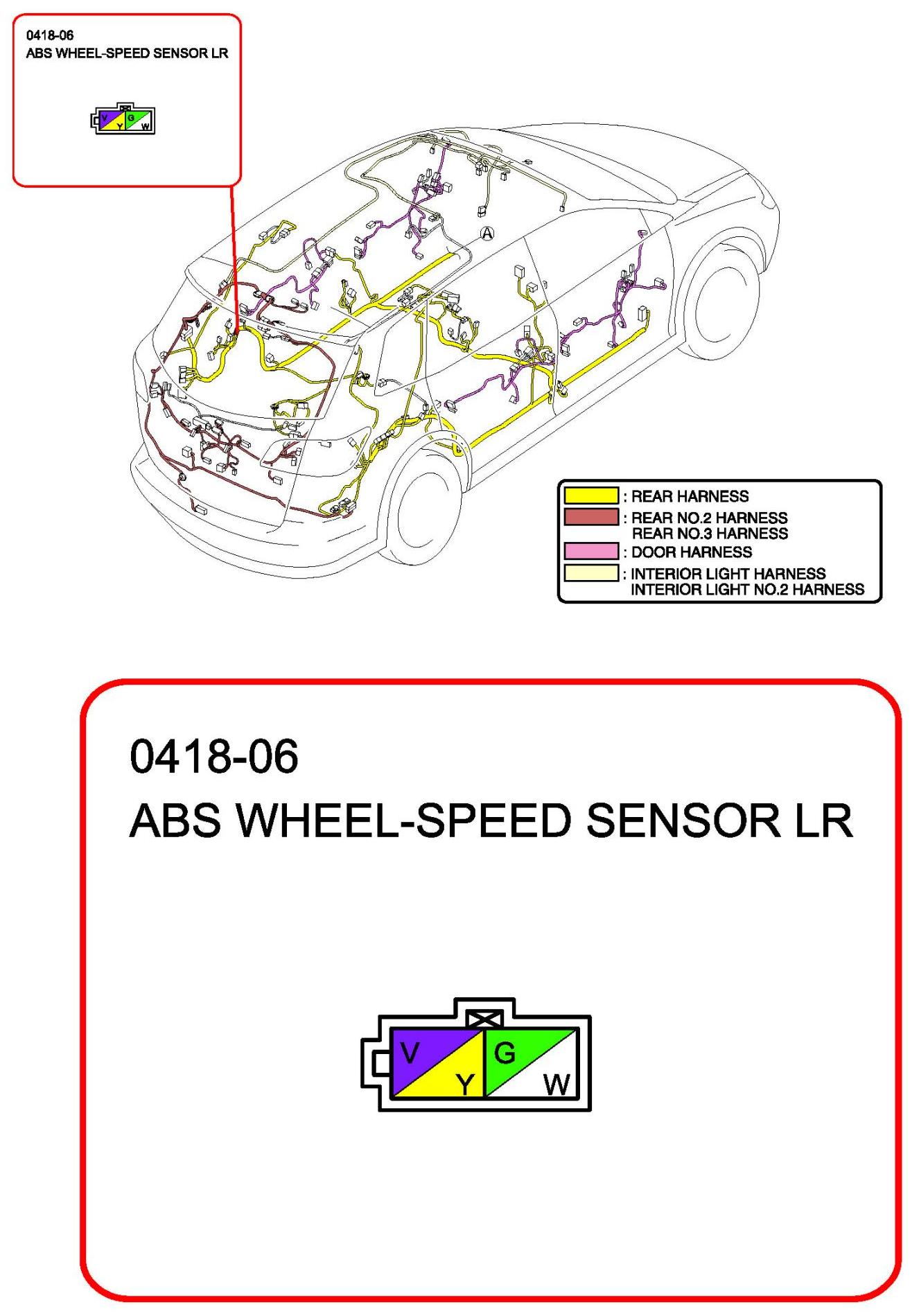

ABS Wheel-Speed Sensor LR:
