Front Climate Control Unit

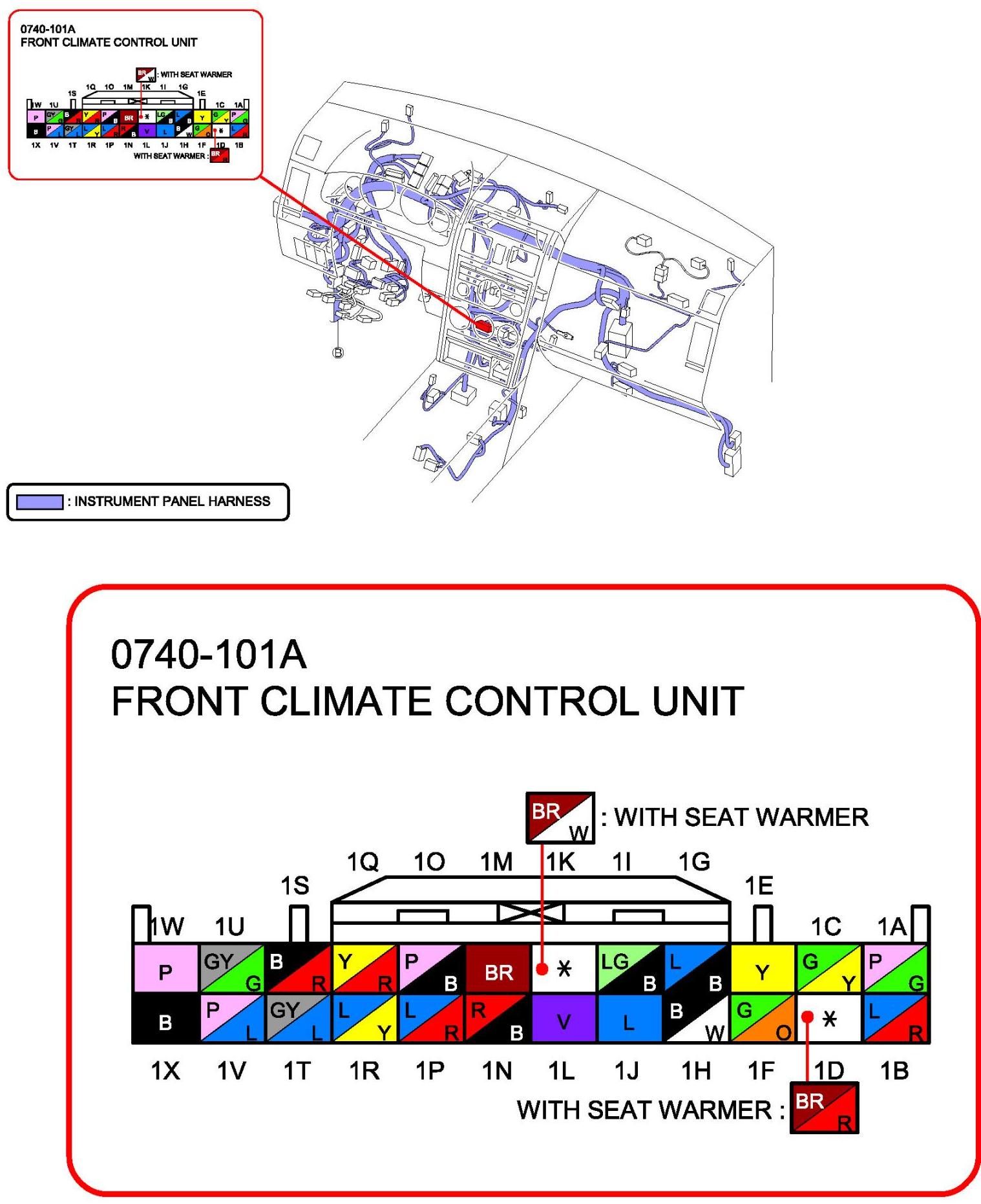

Front Climate Control Uint:

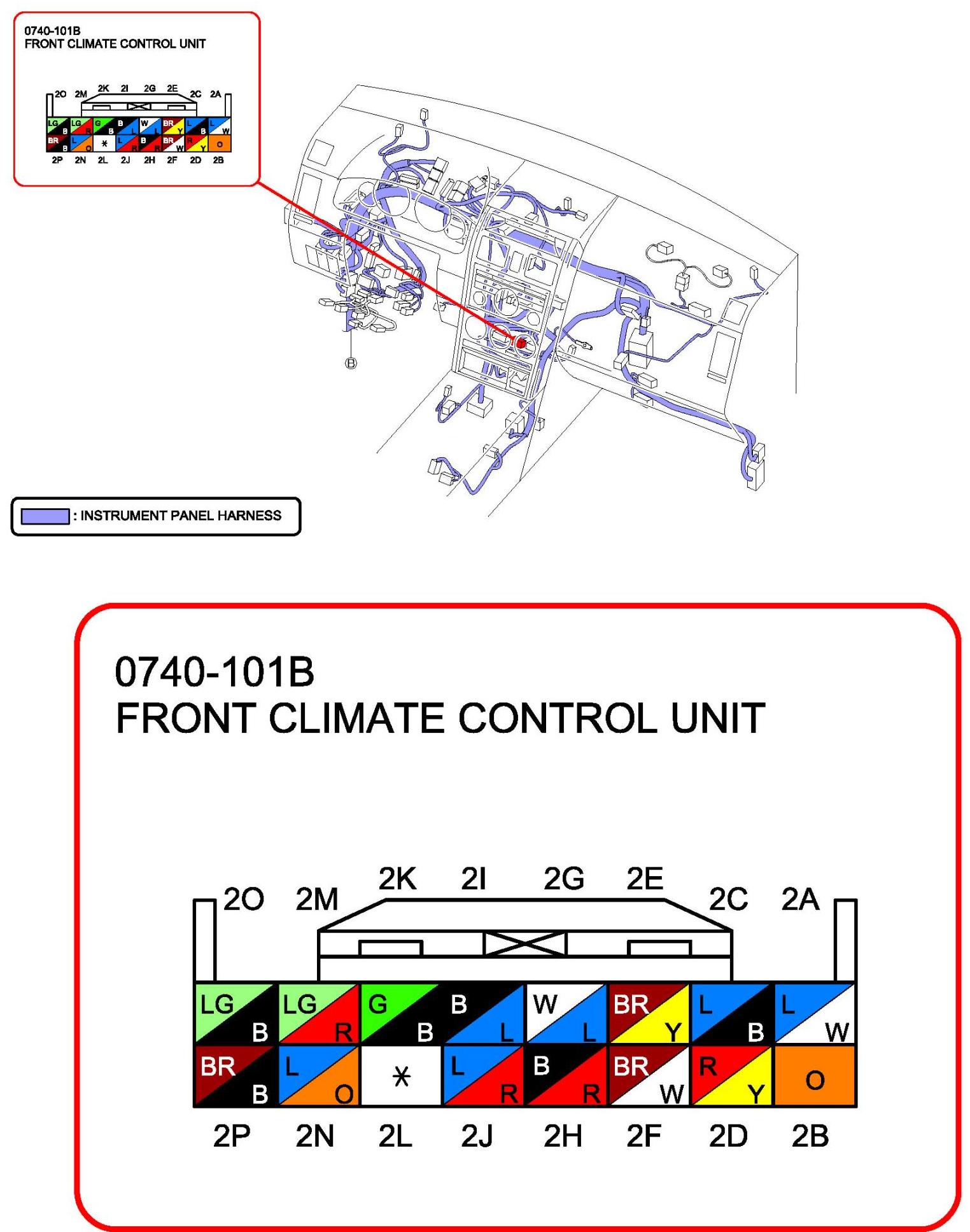

Front Climate Control Uint:

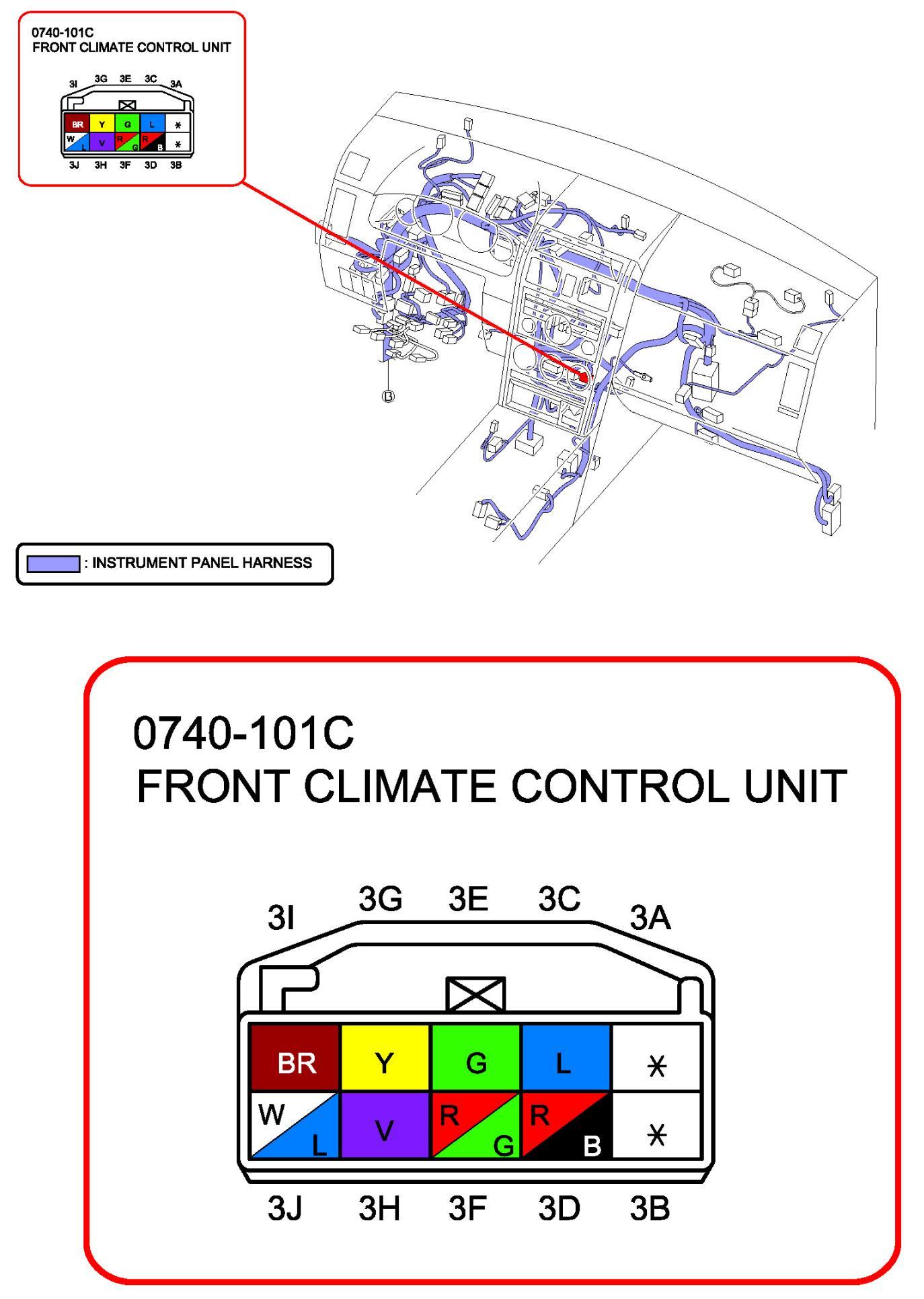

Front Climate Control Uint:
