Front

Terminal Voltage Table(Reference):

Terminal Number 1A-1B:

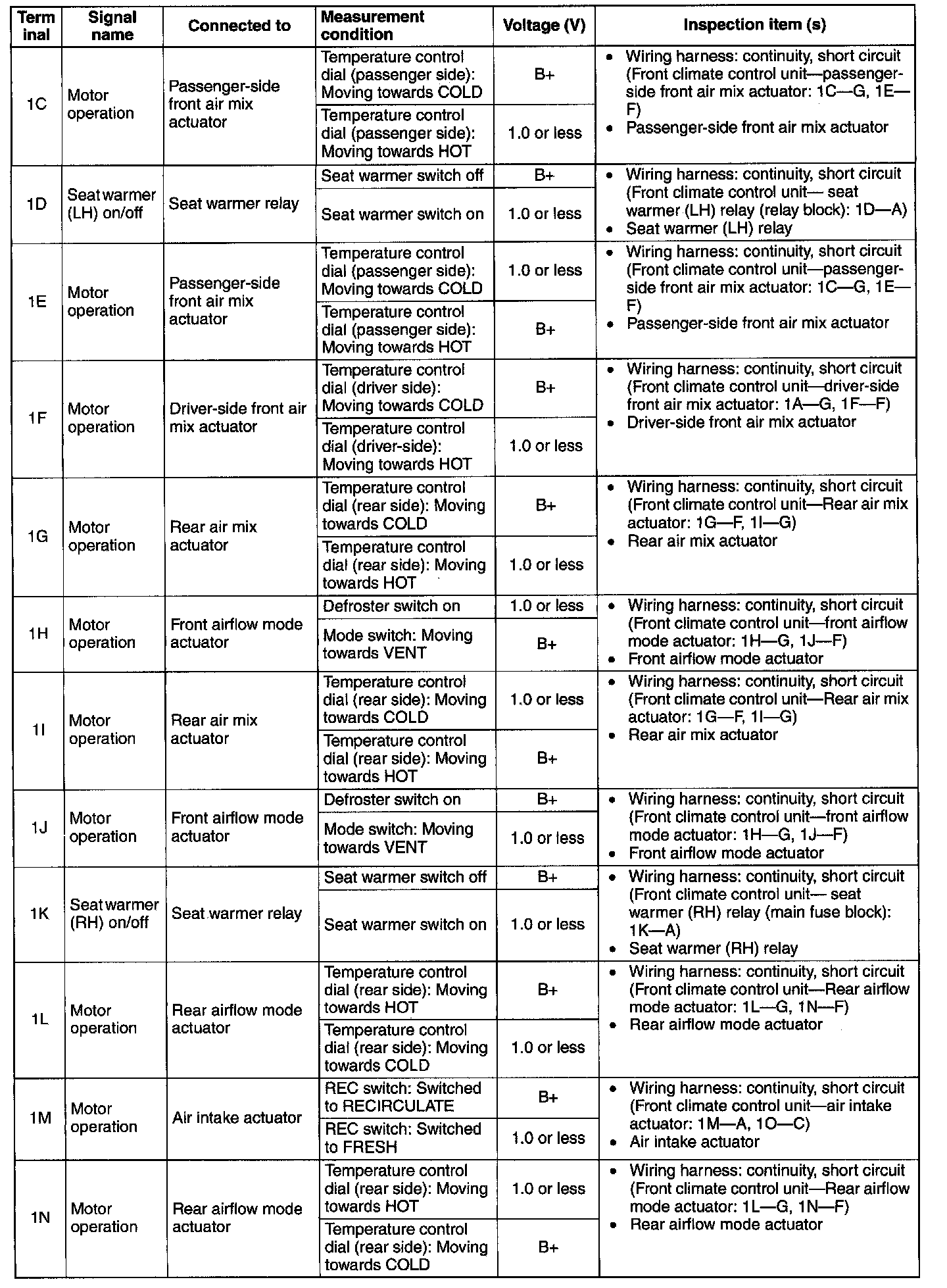

Terminal Number 1C-1N:

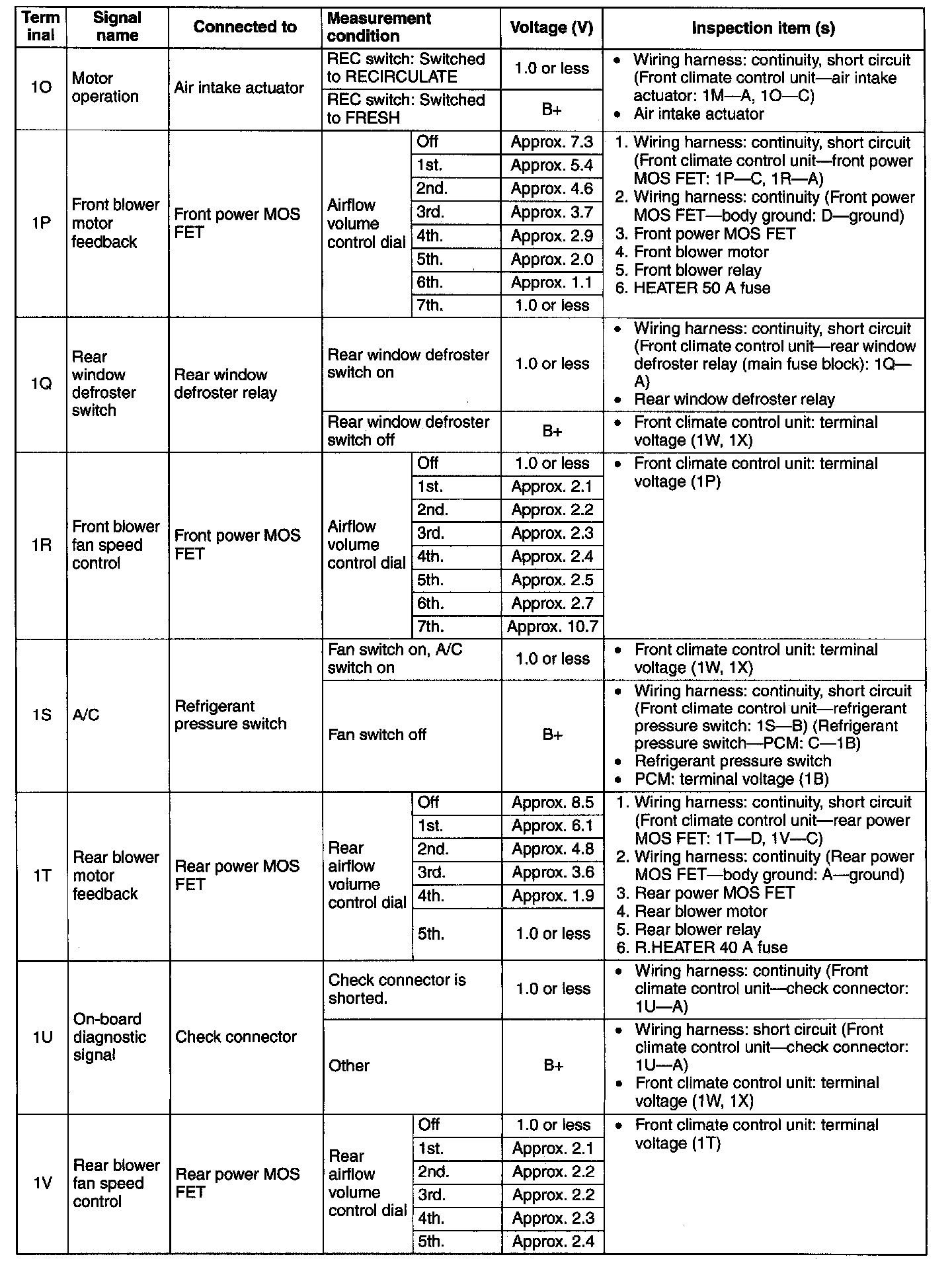

Terminal Number 1O-1V:

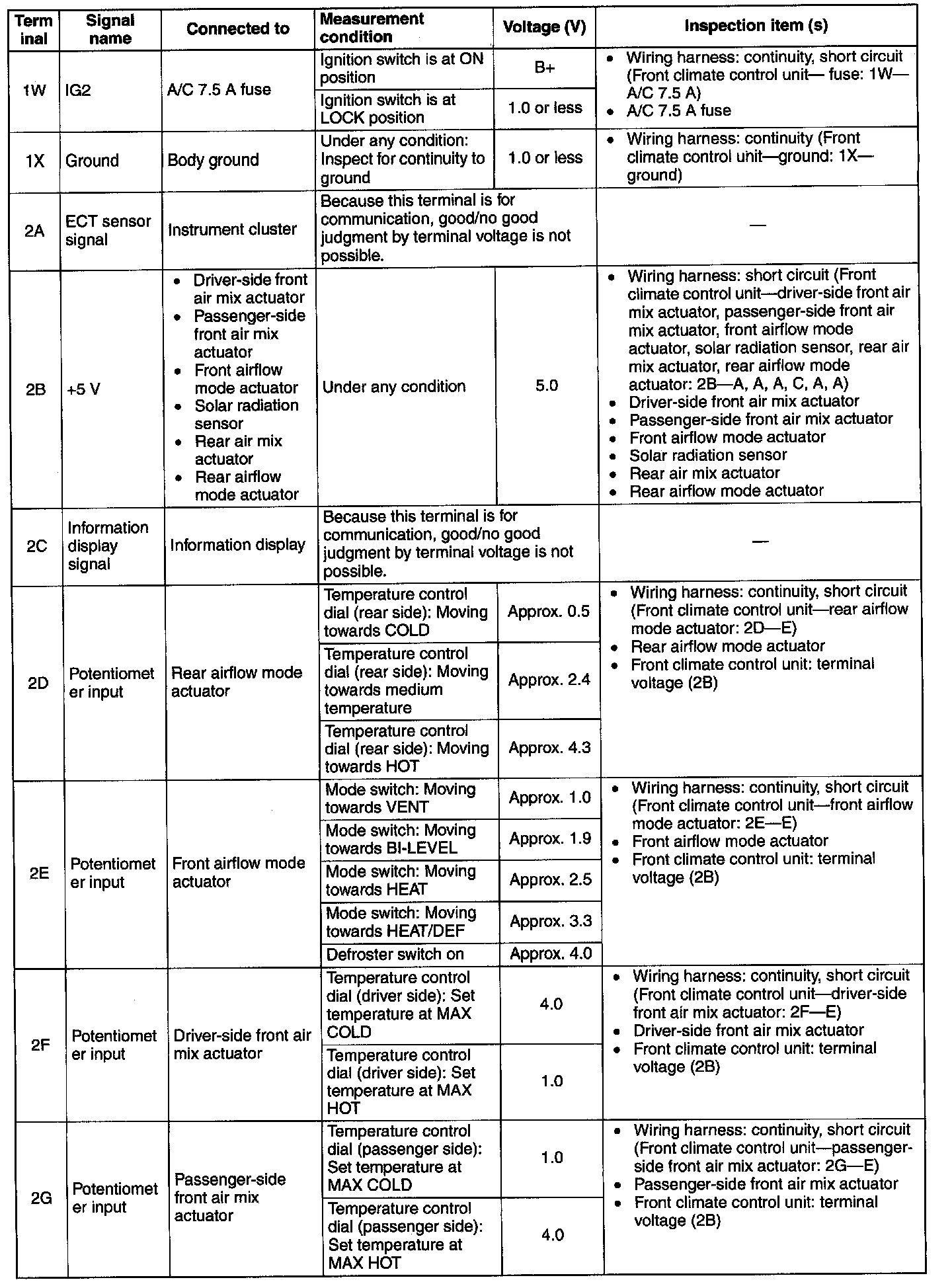

Terminal Number 1W-2G:

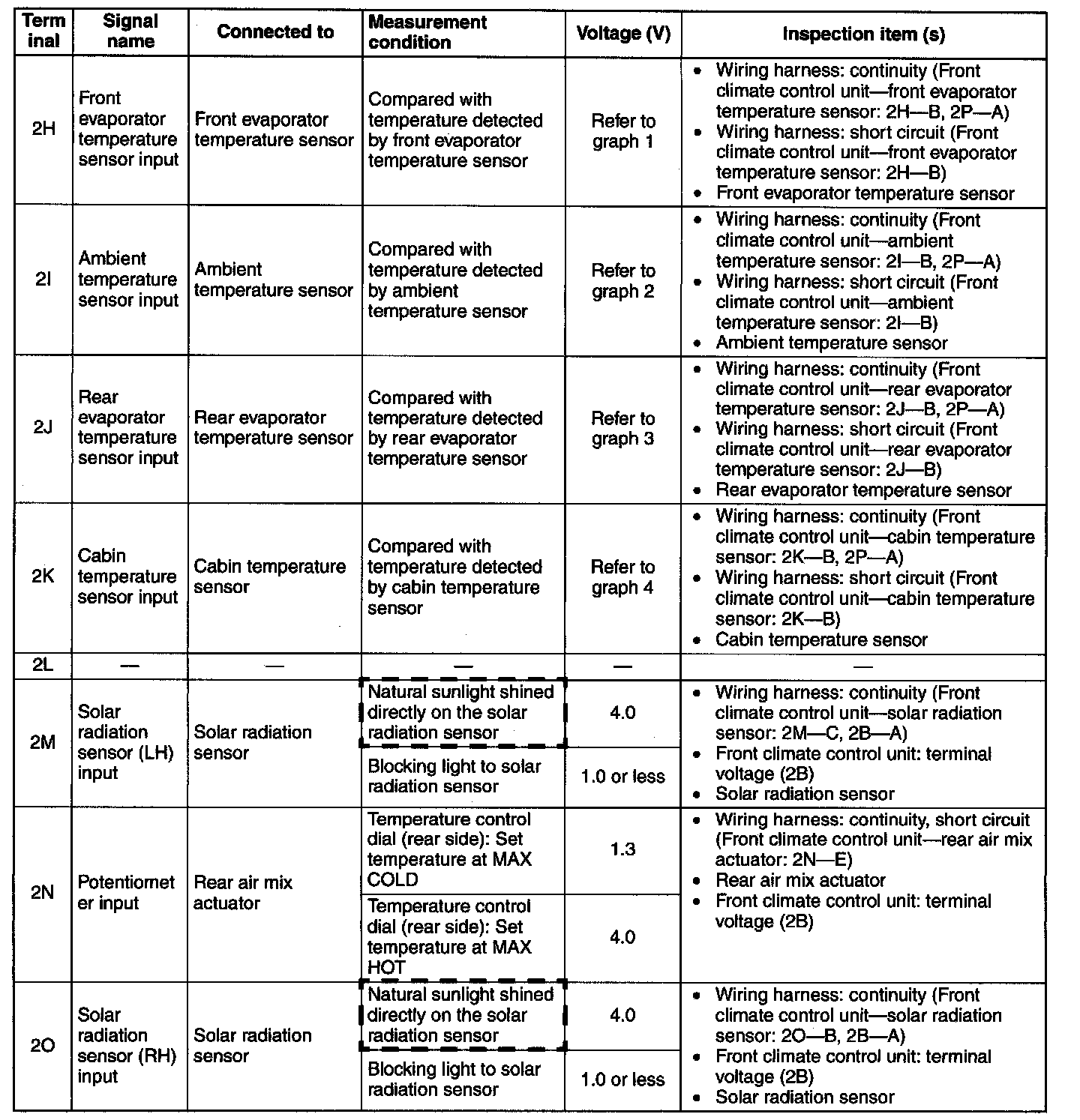

Terminal Number 2H-2O:

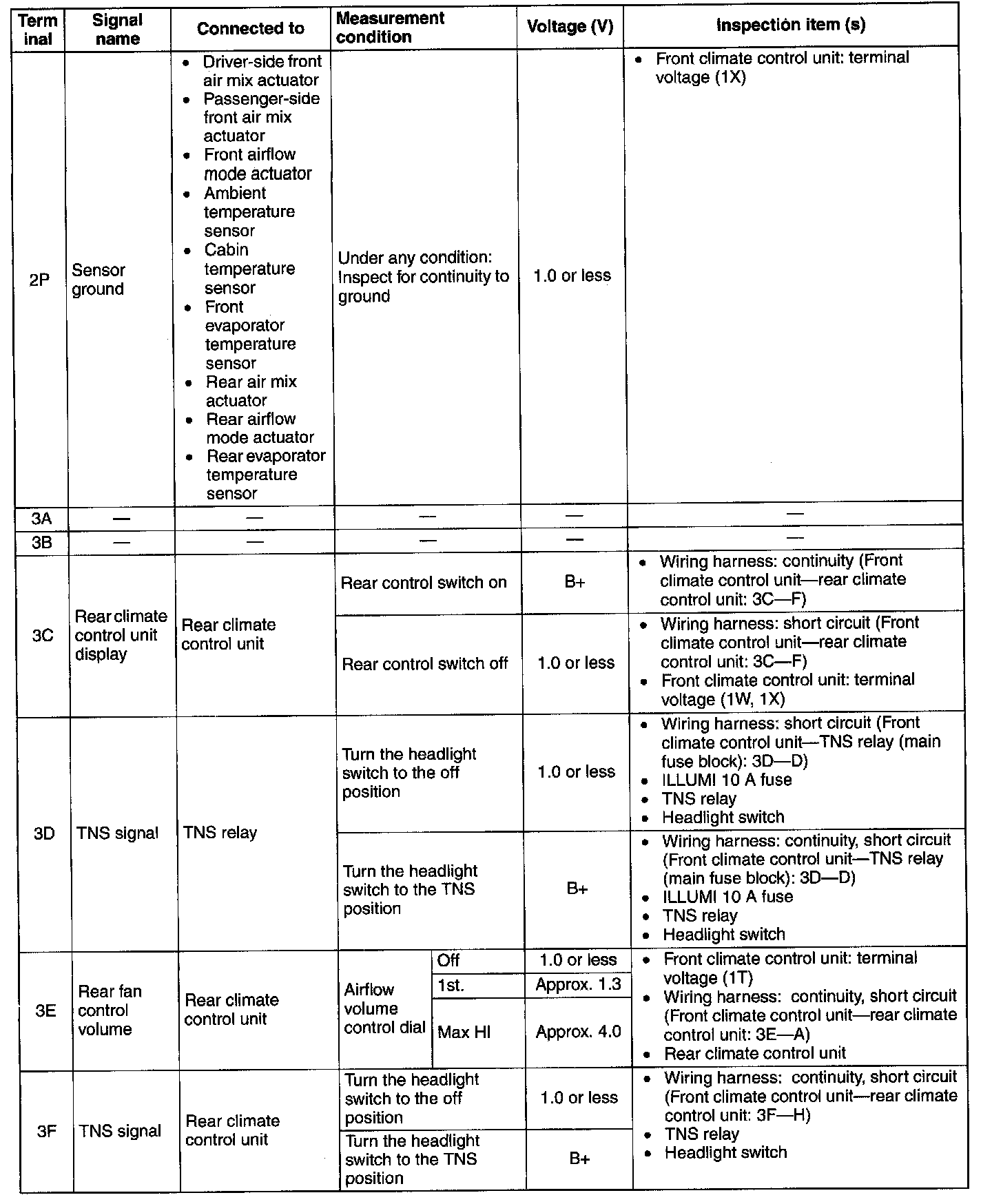

Terminal Number 2P-3f:

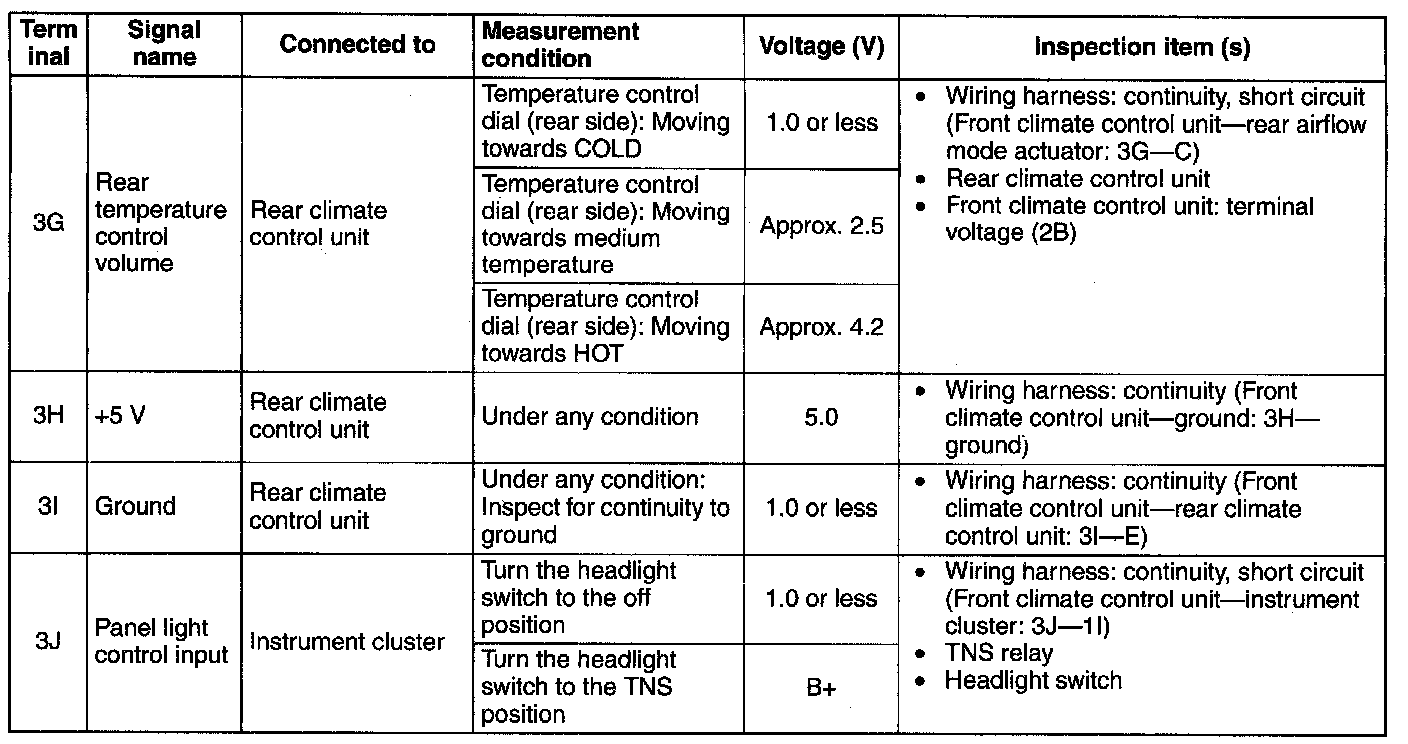

Terminal Number 3G-3J:
