Mazda
>>
2007
>>
CX-9 V6-3.5L
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Fan Control Module No.1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fan Control Module No.1

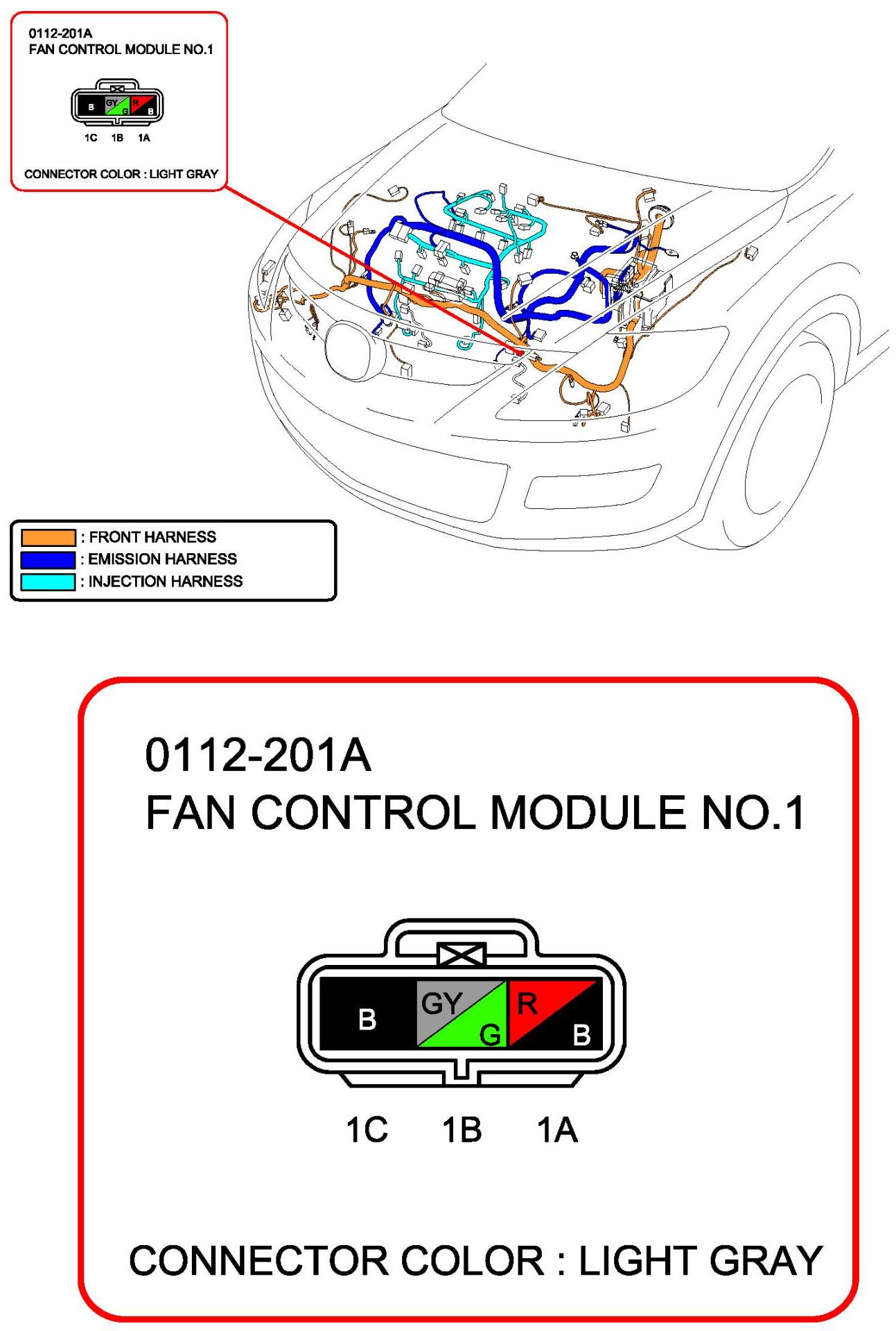

Fan Control Module No.1:

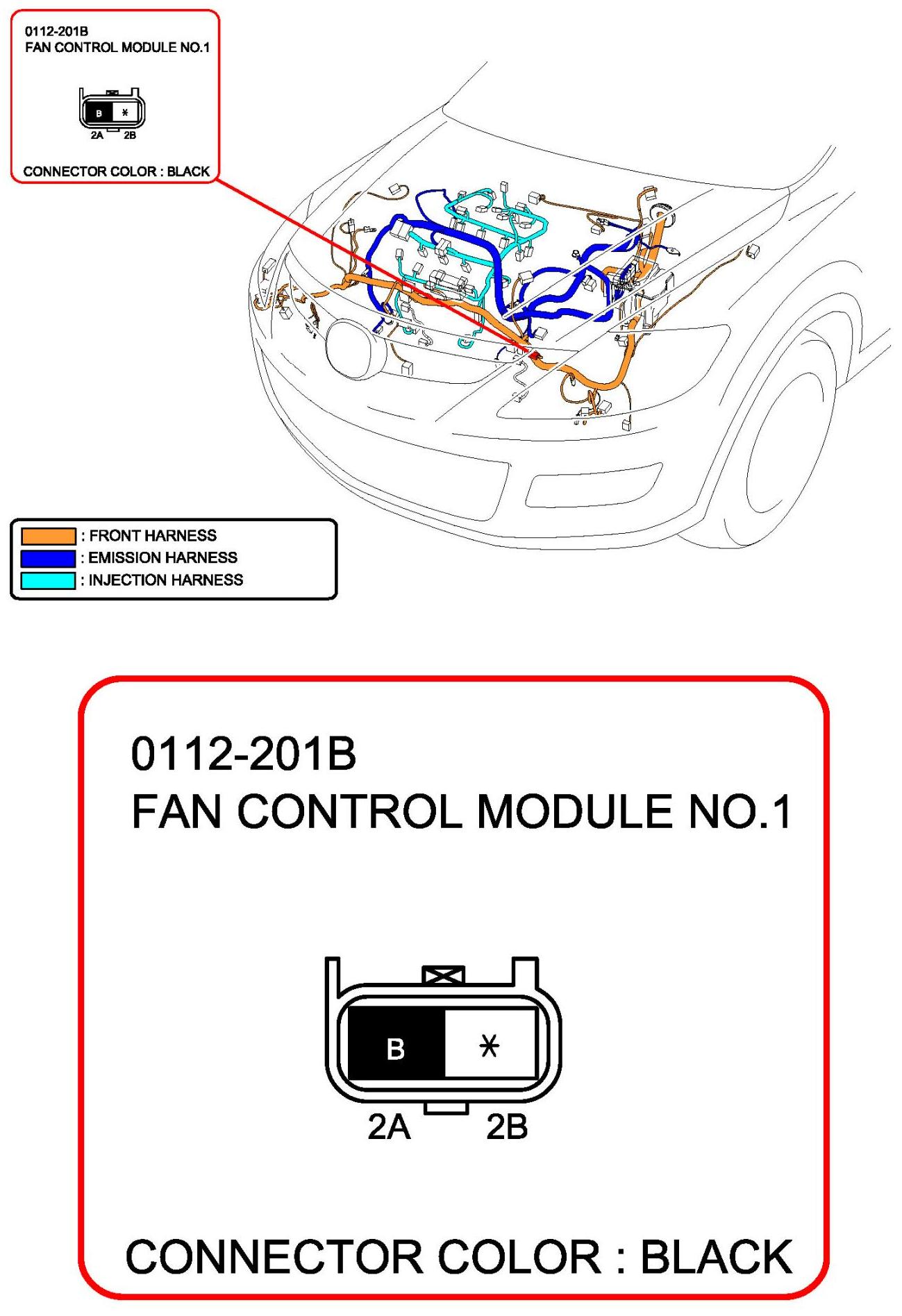

Fan Control Module No.1:
